MB 2501 - 2010-2012 - 281420003/MO9 - Mountfield Brushcutter Gear Head Diagram

Name: MB 2501 - 2010-2012 - 281420003/MO9 - Mountfield Brushcutter Gear Head Diagram
SKU: mb_2501_281420003_mo9_gear_head-group
Price: 1.11 GBP
Availability: InStock

Part No. mb_2501_281420003_mo9_gear_head-group

Skip to the end of the images gallery

Skip to the beginning of the images gallery

MB 2501 - 2010-2012 - 281420003/MO9 - Mountfield Brushcutter Gear Head Diagram

Description

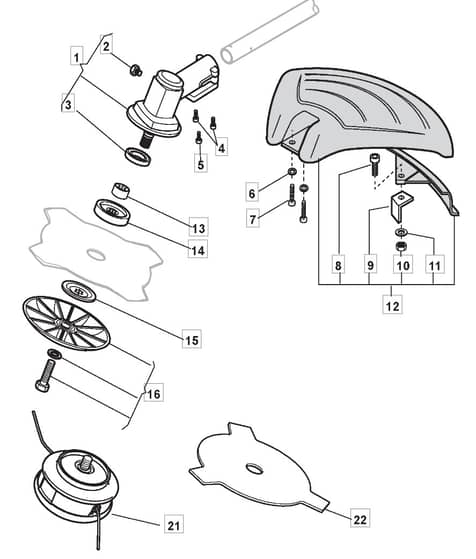

Mountfield MB 2501 Parts Diagram

Model Year - 2010-2012

Model Type - BC 29 S

Art.N - 281420003/MO9

	Part No.	Details
1	MO3L4252770/2 Available to backorder	Gear Case Assy Ø24	£122.46 £102.05
3	MO3121180 Available to backorder	Oil Seal	£4.08 £3.40
4	MO2135050 Available to backorder	Screw	£1.33 £1.11
5	MO2653090 Available to backorder	Screw	£1.39 £1.16
8	MO2135030 Available to backorder	Screw	£1.40 £1.17
9	MO3615000 Available to backorder	Line Cutter Blade	£8.83 £7.36
10	MO112154330/0 In stock	Nut	£1.55 £1.29
11	MO2312150 Available to backorder	Washer	£1.33 £1.11
12	MO3L8563570/1 Available to backorder	Safety Cover Assy	£26.32 £21.93
13	MO3660680 Available to backorder	Collar	£5.90 £4.92
14	MO3641650 Available to backorder	Upper Ring Nut	£12.64 £10.53
15	MO3612650 Available to backorder	Lower Ring Nut	£12.91 £10.76
21	MO3L4353240/1 In stock	2 Hedges Nylon Head	£29.46 £24.55
22	MO6031172 Available to backorder	Blade 3 Teeth 255mm	£9.07 £7.56
