MAX 53 TK ALUMINIUM PRO (K805) EURO 5 - Oleo-Mac Rotary Mower illustrated parts list Diagram

Name: MAX 53 TK ALUMINIUM PRO (K805) EURO 5 - Oleo-Mac Rotary Mower illustrated parts list Diagram
SKU: max_53_tk_aluminium_pro_k805_euro_5_illustrated_parts_list-group
Price: 0.9 GBP
Availability: InStock

Part No. max_53_tk_aluminium_pro_k805_euro_5_illustrated_parts_list-group

Skip to the end of the images gallery

Skip to the beginning of the images gallery

MAX 53 TK ALUMINIUM PRO (K805) EURO 5 - Oleo-Mac Rotary Mower illustrated parts list Diagram

Description

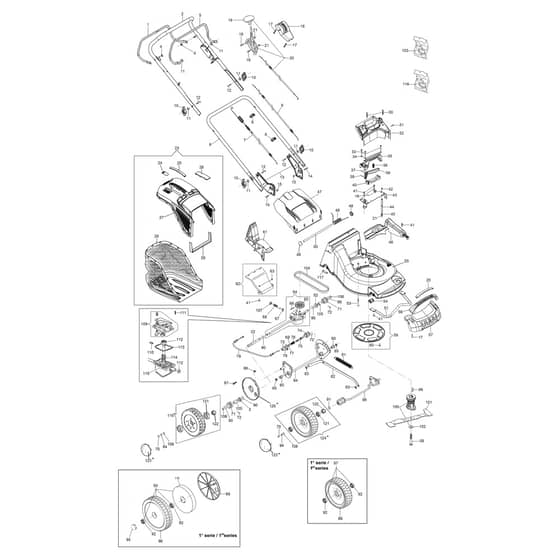

Oleo-Mac MAX 53 TK ALUMINIUM PRO (K805) EURO 5 Parts Diagram

	Part No.	Details
3	EF8202070AR Available to backorder	Clamp Right	£20.88 £17.40
4	EF3045033R Available to backorder	Ring	£3.01 £2.51
5	EF66060106R Available to backorder	Brake Lever	£27.12 £22.60
7	EF8202031ER Available to backorder	Traction Cable	£27.60 £23.00
8	EF66060231 Available to backorder	Band	£3.14 £2.62
9	EF66060585R Available to backorder	Engine Break Cable	£15.48 £12.90
11	EF3916008R Available to backorder	Washer	£1.98 £1.65
12	EF3910015R Available to backorder	Screw	£2.00 £1.67
13	EF66060394 Available to backorder	Support Set	£47.52 £39.60
15	EF3914010 Available to backorder	Nut	£1.08 £0.90
16	EF8203347R Available to backorder	Dashboard	£17.28 £14.40
17	EF3960016 Available to backorder	Screw	£1.08 £0.90
18	EF3806021A Available to backorder	Screw	£1.08 £0.90
19	EF8203419R Available to backorder	Knob	£4.20 £3.50
21	EF3914003R Available to backorder	Self-Locking Nut	£1.15 £0.96
23	EF66060527A Available to backorder	Grassbag Kit	£150.00 £125.00
24	EF66070521R Available to backorder	Shutter	£9.00 £7.50
25	EF66070523R Available to backorder	Cover Arancio . Orange	£8.40 £7.00
26	EF66070466R Available to backorder	Lock	£9.48 £7.90
27	EF66062112R Available to backorder	Frame	£58.08 £48.40
28	EF66060256R Available to backorder	Support	£9.00 £7.50
30	EF3979018 Available to backorder	Screw	£1.08 £0.90
31	EF3960137R Available to backorder	Screw	£3.07 £2.56
33	EF3933063R Available to backorder	Screw	£2.88 £2.40
34	EF3918005R Available to backorder	Washer	£2.66 £2.22
35	EF66070533R Available to backorder	Handle	£24.36 £20.30
36	EF66070550R Available to backorder	Spring	£6.72 £5.60
37	EF3022035R Available to backorder	Plug	£4.08 £3.40
38	EF3022033R Available to backorder	Plug	£3.60 £3.00
39	EF66070534R Available to backorder	Lever	£8.76 £7.30
40	EF66070539R Available to backorder	Lock	£7.68 £6.40
41	EF3960031R Available to backorder	Screw	£1.08 £0.90
43	EF66060467R Available to backorder	Support	£35.04 £29.20
45	EF3916006R Available to backorder	Washer	£1.08 £0.90
46	EF66060468R Available to backorder	Cover	£15.48 £12.90
48	EF3045027R Available to backorder	Clamp	£1.54 £1.28
49	EF66060060 Available to backorder	Spring	£3.01 £2.51
50	EF66060055 Available to backorder	Deflector Axle	£5.64 £4.70
52	EF8202071AR Available to backorder	Clamp Left	£20.88 £17.40
53	EF3806077 Available to backorder	Screw	£1.08 £0.90
54	EF66060007R Available to backorder	Bushing	£3.01 £2.51
56	EF66060471R Available to backorder	Handle	£10.20 £8.50
57	EF66060466R Available to backorder	Guard	£15.24 £12.70
58	EF3906162R Available to backorder	Screw	£5.64 £4.70
59	EF66060375A Available to backorder	Guard Kit	£12.48 £10.40
60	EF3960135R Available to backorder	Screw	£1.08 £0.90
61	EF66060372R Available to backorder	Mulching Cap Optional	£51.00 £42.50
62	EF66062096 Available to backorder	Cover	£11.88 £9.90
63	EF66060110R Available to backorder	Spacer	£2.00 £1.67
64	EF66060599 Available to backorder	Gear Case Assy	£183.00 £152.50
66	EF3022020R Available to backorder	Plug	£1.43 £1.19
67	EF8202010 Available to backorder	Pin	£5.64 £4.70
68	EF8202009AR Available to backorder	Spring	£9.00 £7.50
69	EF3064004AR Available to backorder	Washer	£2.00 £1.67
70	EF301000042 Available to backorder	Screw	£3.48 £2.90
71	EF8202063R Available to backorder	Sprocket	£17.40 £14.50
72	EF3033008R Available to backorder	Roller	£2.00 £1.67
73	EF3960064AR Available to backorder	Screw	£2.53 £2.11
75	EF66060443R Available to backorder	Pin	£15.60 £13.00
77	EF3049016R Available to backorder	O-Ring	£1.46 £1.22
79	EF66060441R Available to backorder	Wire	£8.64 £7.20
80	EF66060030R Available to backorder	Bushing	£3.84 £3.20
81	EF66060505R Available to backorder	Spring	£6.36 £5.30
83	EF3033129R Available to backorder	Retainer Washer	£5.28 £4.40
84	EF66060559R Available to backorder	Compl. Rear Axle	£103.32 £86.10
85	EF8202311R Available to backorder	Ring	£1.66 £1.38
88	EF8203509R Available to backorder	Tire	£60.12 £50.10
90	EF3064012R In stock	Spacer	£1.13 £0.94
91	EFYN5002200 Available to backorder	Thickness	£3.17 £2.64
92	EF3035015R Available to backorder	Bearing	£17.04 £14.20
94	EF3819009 Available to backorder	Washer	£1.08 £0.90
95	EF8203501R Available to backorder	Wheel Cover	£5.16 £4.30
96	EF8203510R Available to backorder	Tire	£63.72 £53.10
98	EF66060562R Available to backorder	Front Axle	£75.84 £63.20
99	EF8202126R Available to backorder	Key	£2.00 £1.67
100	EF66060131 Available to backorder	Hub Ø22.2mm	£29.88 £24.90
101	EF66060413R In stock	Mulching Blade 53	£30.72 £25.60
102	EF66060384R Available to backorder	Washer	£3.84 £3.20
104	EF3047028R Available to backorder	Belt	£18.72 £15.60
105	EF8202062R Available to backorder	Bushing	£3.01 £2.51
106	EF3024012R In stock	Seeger	£1.54 £1.28
107	EF8202052R Available to backorder	Plate	£2.00 £1.67
108	EF3918009R Available to backorder	Washer	£1.08 £0.90
109	EF8202293 Available to backorder	Cover	£79.80 £66.50
110	EF3022007 Available to backorder	Plug	£1.08 £0.90
111	EF3960090AR Available to backorder	Screw	£1.08 £0.90
112	EF3035023R Available to backorder	Bearing	£16.44 £13.70
113	EF8202292 Available to backorder	Gasket	£13.56 £11.30
114	EF8202291 Available to backorder	Worm Gear	£49.56 £41.30
115	EF8202334 Available to backorder	Wheel	£84.00 £70.00
116	EF66110794 Available to backorder	Labels Kit Motore Emak. Emak engine	£6.72 £5.60
117	EF66060008AR Available to backorder	Plate	£2.00 £1.67
119	EF8203339B Available to backorder	Rear Wheel Kit	£47.52 £39.60
121	EF3035022R Available to backorder	Bearing	£13.20 £11.00
122	EF8203336R Available to backorder	Bushing	£3.01 £2.51
123	EF66060276 Available to backorder	Wheel Cover	£3.84 £3.20
124	EF8203340A Available to backorder	Front Wheel Kit	£61.32 £51.10
