Masport OPC 400 - 019057 - Apr 2011 7421017 - Cutting Cylinder Assembly

Description

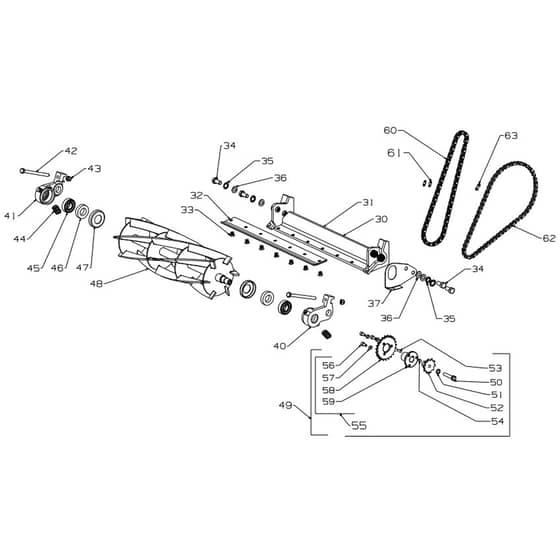

Masport OPC 400 Petrol Cylinder - Cutting Cylinder Assembly Parts Diagram

Part Number: 019057

Model: 400 PRR

Engine Model: Honda GC160

Model Range: Apr 2011

Serial Number: 7421017

Be the first to review this product

0 product questions

	Part No.	Details
31	MP009861 Available to backorder	Bracket Assy Backplate 400	£85.38 £71.15
32	MP009872 Available to backorder	Blade Baseplate 400	£123.68 £103.07
33	MP008611 Available to backorder	Screw CSK M8x10 Allen Head	£0.90 £0.75
35	MP503897 Available to backorder	Washer Spg 10	£0.35 £0.29
36	MP501704 Available to backorder	Washer Flt 10x19x1.6	£0.44 £0.37
37	MP002561 Available to backorder	Plate- Seal Chaincase	£2.44 £2.03
40	MP032023 Available to backorder	Housing- Assy Bearing LH	£43.58 £36.32
42	MP006282 Available to backorder	Bolt Set NF 5.16"x4" Hex	£5.60 £4.67
44	MP002581 Available to backorder	Spring- Baseplate	£2.06 £1.72
45	MP503273 Available to backorder	Bearing Ball 17x40x12 6203 2S	£21.86 £18.22
47	MP005211 Available to backorder	Cover- Dust Cylinder Bearing	£3.90 £3.25
48	MP032013 Available to backorder	Cylinder Assy Cutting-400 Keyed	£325.20 £271.00
50	MP501843 Available to backorder	Set Screw M8 x 40	£0.86 £0.72
51	MP503747 Available to backorder	Washer Spg 8	£0.48 £0.40
52	MP032002 Available to backorder	Sproket 10T	£33.76 £28.13
55	MP032045 Available to backorder	Sprocket Assy - 23 Key	£74.16 £61.80
58	MP032003 Available to backorder	Sprocket 23T	£43.04 £35.87

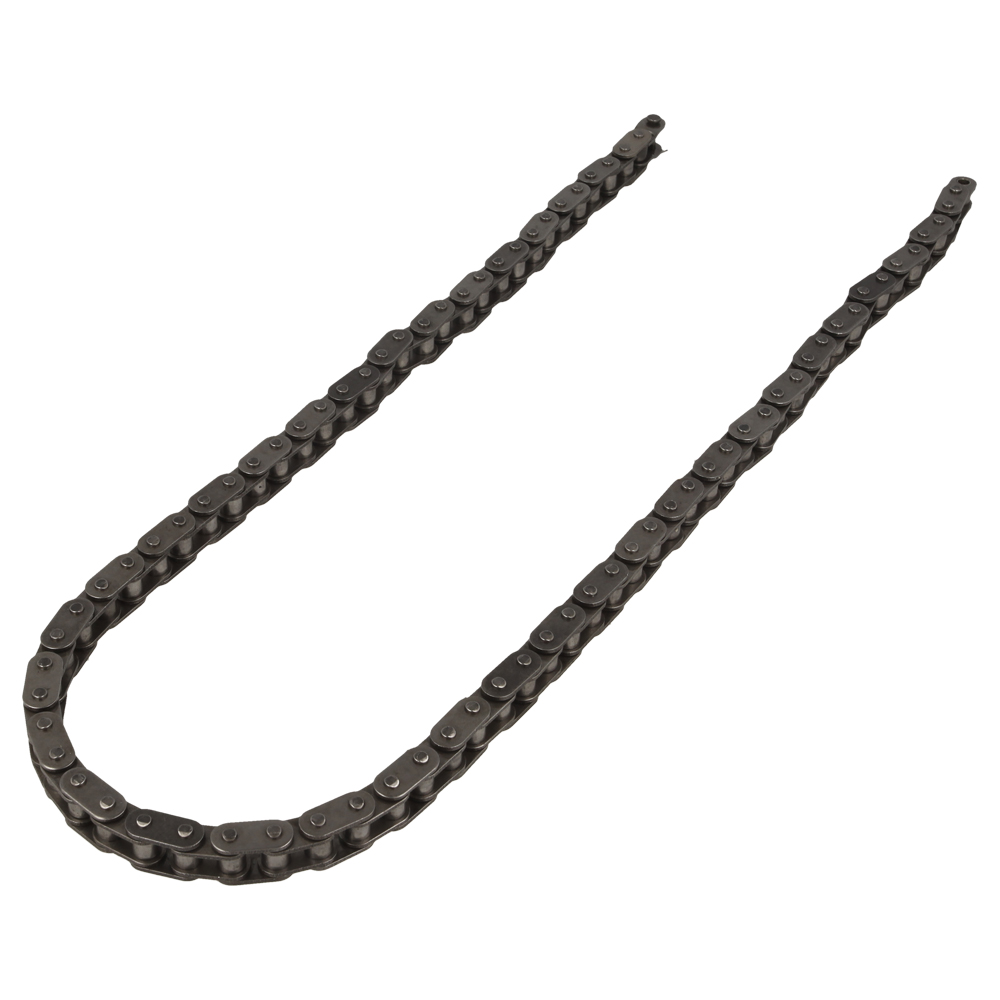

60	MP002835 Available to backorder	Chain- 0.23xP 3.8" 75P	£29.02 £24.18
61	MP731972 In stock	Link- Chain 3.8"	£6.84 £5.70
62	MP004299 Available to backorder	Chain- 0.205x P 1.2" 59P	£34.70 £28.92
63	MP731971 Available to backorder	Link- Chain 1.2"	£7.34 £6.12
