Masport OPC 400 - 019026 - Dec 2007 7091925 - Rear Roller Assembly

Description

Masport OPC 400 Petrol Cylinder - Rear Roller Assembly Parts Diagram

Part Number: 019026

Model: 400 PRR

Engine Model: B&S 3.5 I/C

Model Range: Dec 2007

Serial Number: 7091925

	Part No.	Details
66	MP002618 Available to backorder	Plate- Seal Bearing	£2.36 £1.97
67	MP002604 Available to backorder	Sprocket & Boss Assy Rear Roller	£36.25 £30.21
68	MP503872 Available to backorder	Washer Flt 8x20x3.0	£1.74 £1.45
69	MP503747 Available to backorder	Washer Spg 8	£0.48 £0.40
70	MP501717 Available to backorder	Screw Set M8x20 1mm Pitch	£1.37 £1.14

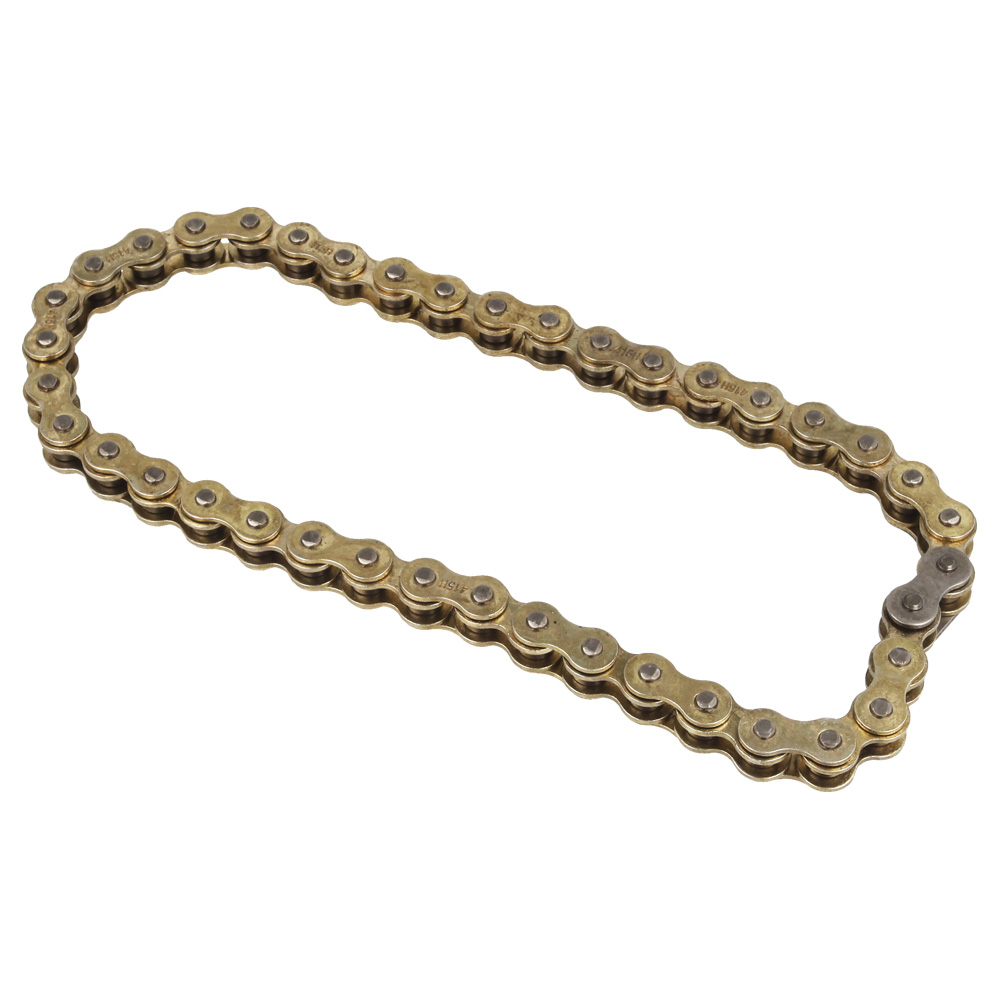

71	MP004929 Available to backorder	Chain 3.16" x 1.2 40P	£21.62 £18.02
72	MP731971 Available to backorder	Link Chain 1.2	£7.06 £5.88
73	MP501597 Available to backorder	Screw Set M8x20	£0.41 £0.34
74	MP501606 Available to backorder	Washer Flt 8x19x1.6	£0.37 £0.31
75	MP501602 Available to backorder	Nut M8 Hex	£0.31 £0.26
80	MP503273 Available to backorder	Bearing-Ball 17x40x12 6203 2S	£22.61 £18.84
81	MP004292 Available to backorder	Ring-Bearing Housing	£0.48 £0.40
82	MP000409 Available to backorder	Housing-Bearing	£8.66 £7.22
84	MP007260 Available to backorder	Circlip- 7.8" ext	£0.60 £0.50
85	MP002732 Available to backorder	Washer-Flt 22 x 40 x 2	£1.40 £1.17
85	MP567292 Available to backorder	(85a) Bolt-Hex M6 x 55 HT 8.8	£0.79 £0.66
86	MP501764 Available to backorder	Nut M6 Hex Nyloc	£0.31 £0.26
87	MP008943 Available to backorder	Carrier-Bevel Pinion	£40.22 £33.52
88	MP008945 Available to backorder	Spindle-Rear Roller Assy 400	£89.64 £74.70
89	MP002708 Available to backorder	Pinion-Bevel 14T	£4.31 £3.59
90	MP008944 Available to backorder	Collar	£1.78 £1.48

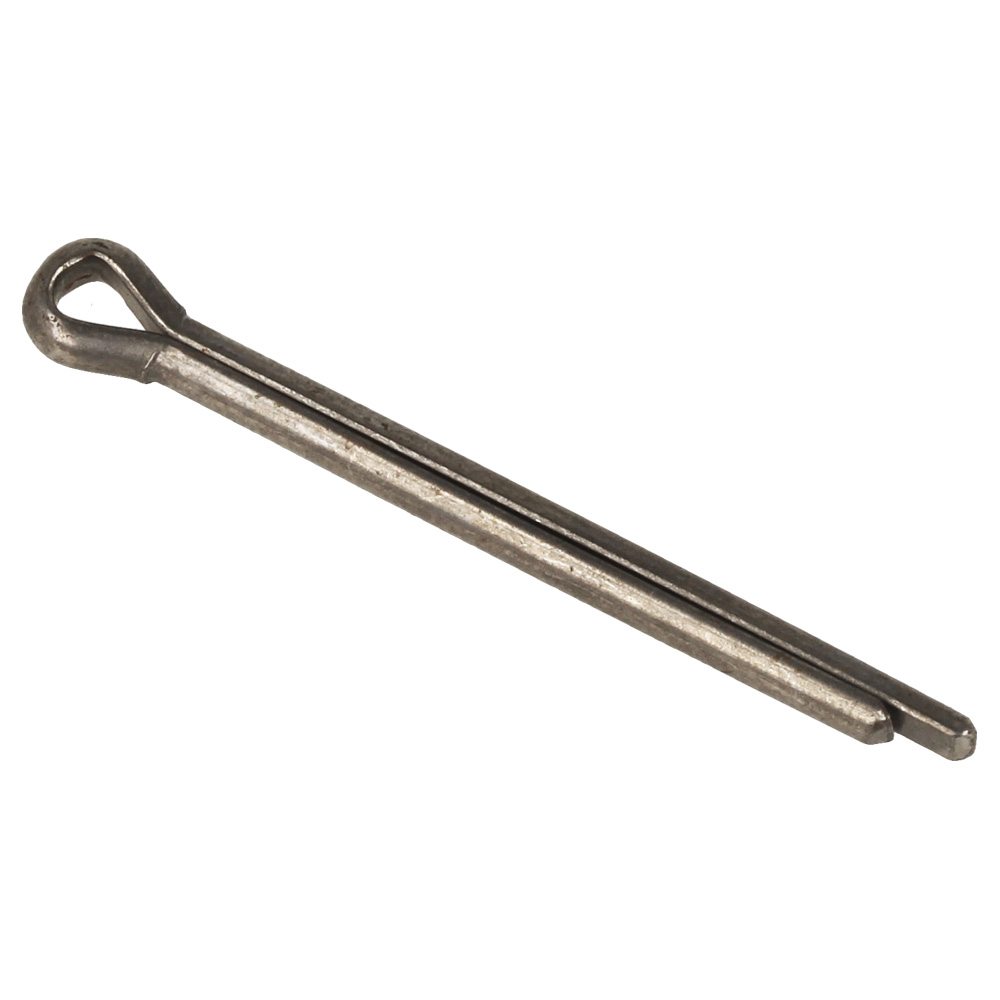

91	MP007473 Available to backorder	Split Pin 3.0dia x 30	£0.43 £0.36
93	MP031916 Available to backorder	Roller-Rear Assembly (Painted)	£242.64 £202.20
95	MP002707 Available to backorder	Gear-Bevel 24t	£5.42 £4.52
