Masport OPC 400 - 019026 - Dec 2007 7091925 - Chassis Assembly

Description

Masport OPC 400 Petrol Cylinder - Chassis Assembly Parts Diagram

Part Number: 019026

Model: 400 PRR

Engine Model: B&S 3.5 I/C

Model Range: Dec 2007

Serial Number: 7091925

	Part No.	Details
1	MP031580 Available to backorder	Chassis Assy- 400 Green	£165.72 £138.10
2	MP501843 Available to backorder	Set Screw M8x40 Hex	£0.83 £0.69
3	MP503747 Available to backorder	Washer Spg 8	£0.48 £0.40
4	MP501606 Available to backorder	Washer Flt 8x19x1.6	£0.37 £0.31
5	MP581527 Available to backorder	Retainer Clutch Cable	£0.72 £0.60
6	MP503591 Available to backorder	Screw Pan M6x12	£0.31 £0.26
7	MP501703 Available to backorder	Washer Flt 6x14x1.2	£0.48 £0.40
8	MP002589 Available to backorder	Bracket Grass Chute	£1.86 £1.55

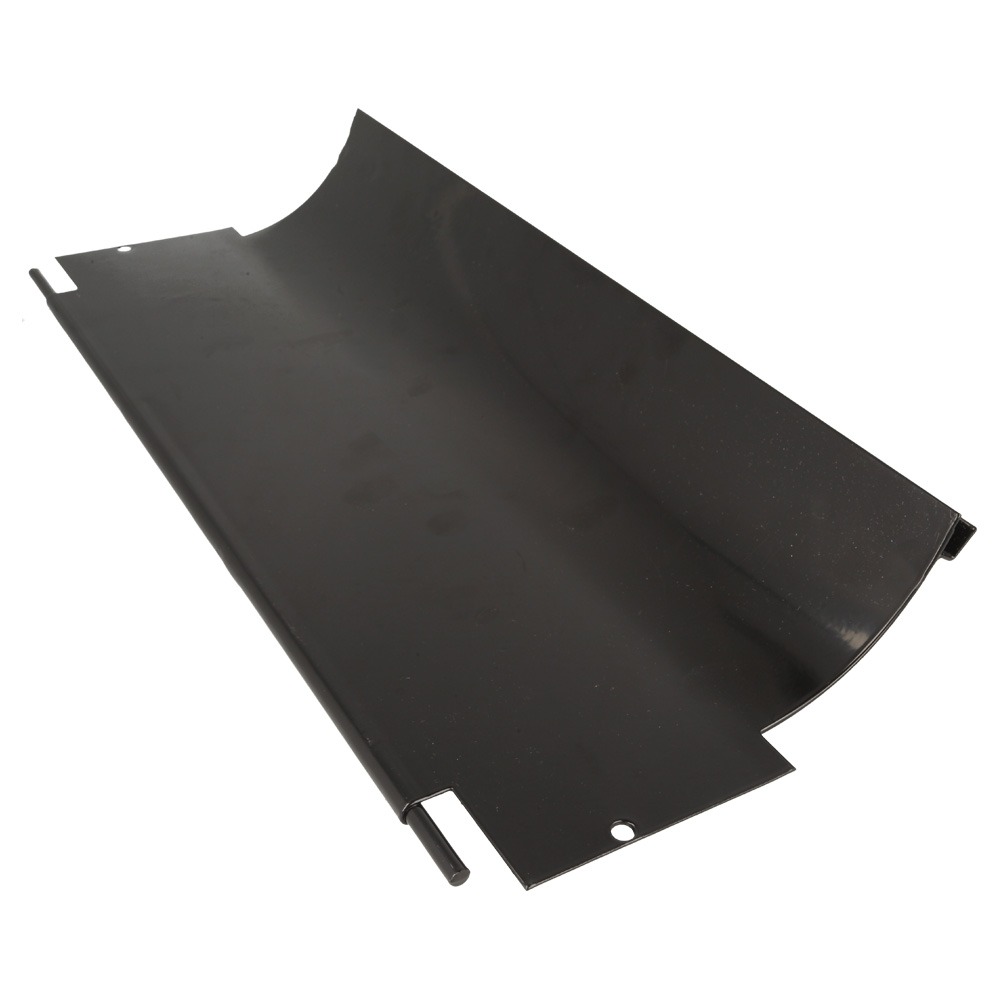

9	MP008900 In stock	Deflector Grass- 400	£57.12 £47.60
10	MP501702 Available to backorder	Set Screw M6x16 Hex	£0.41 £0.34
12	MP031915 Available to backorder	Bracket- Chain Cover	£2.86 £2.38
13	MP002848 Available to backorder	Bolt- Adjuster Chain	£19.03 £15.86
15	MP002845 Available to backorder	Sealplate- Chain Adjuster	£0.86 £0.72

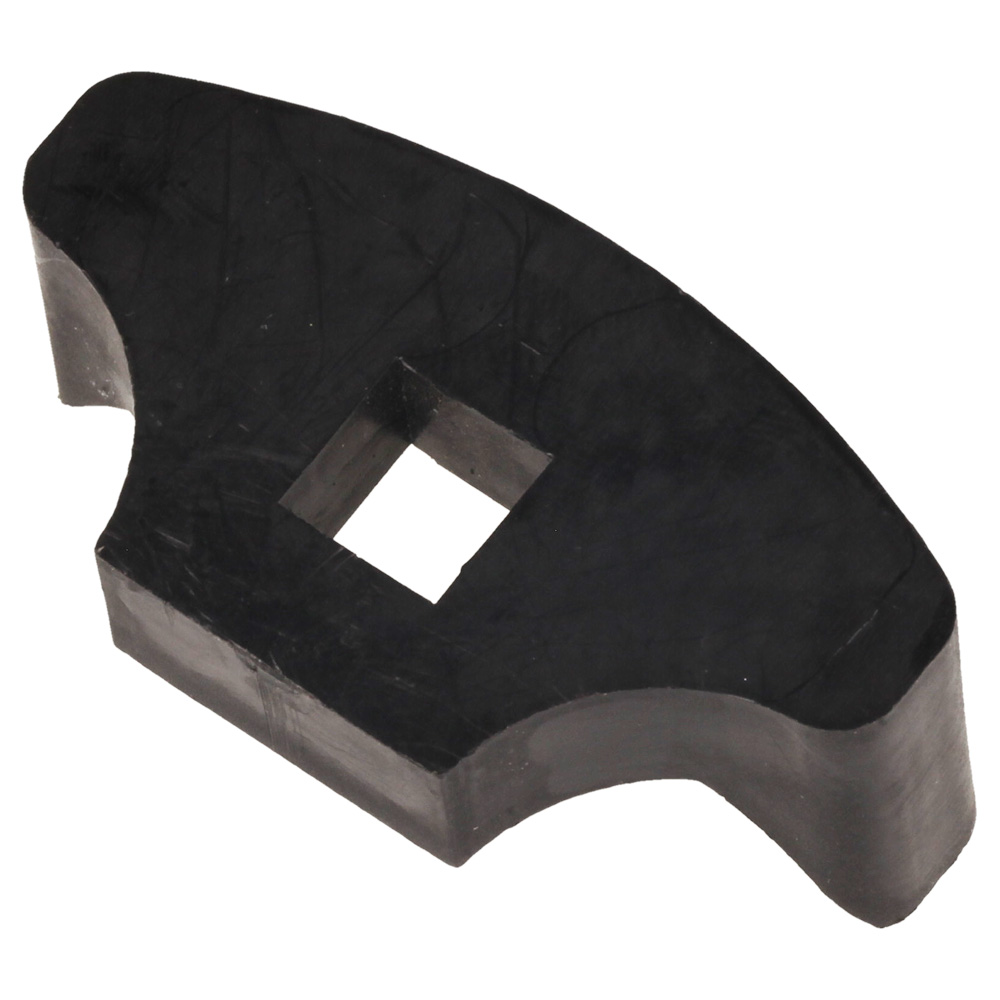

16	MP002844 In stock	Adjuster- Chain Fixed Nylon	£3.37 £2.81
18	MP501793 Available to backorder	Nut M8 Hex Nyloc 8 Thck	£1.92 £1.60
19	MP004942 Available to backorder	Plate Assy Mounting	£16.09 £13.41

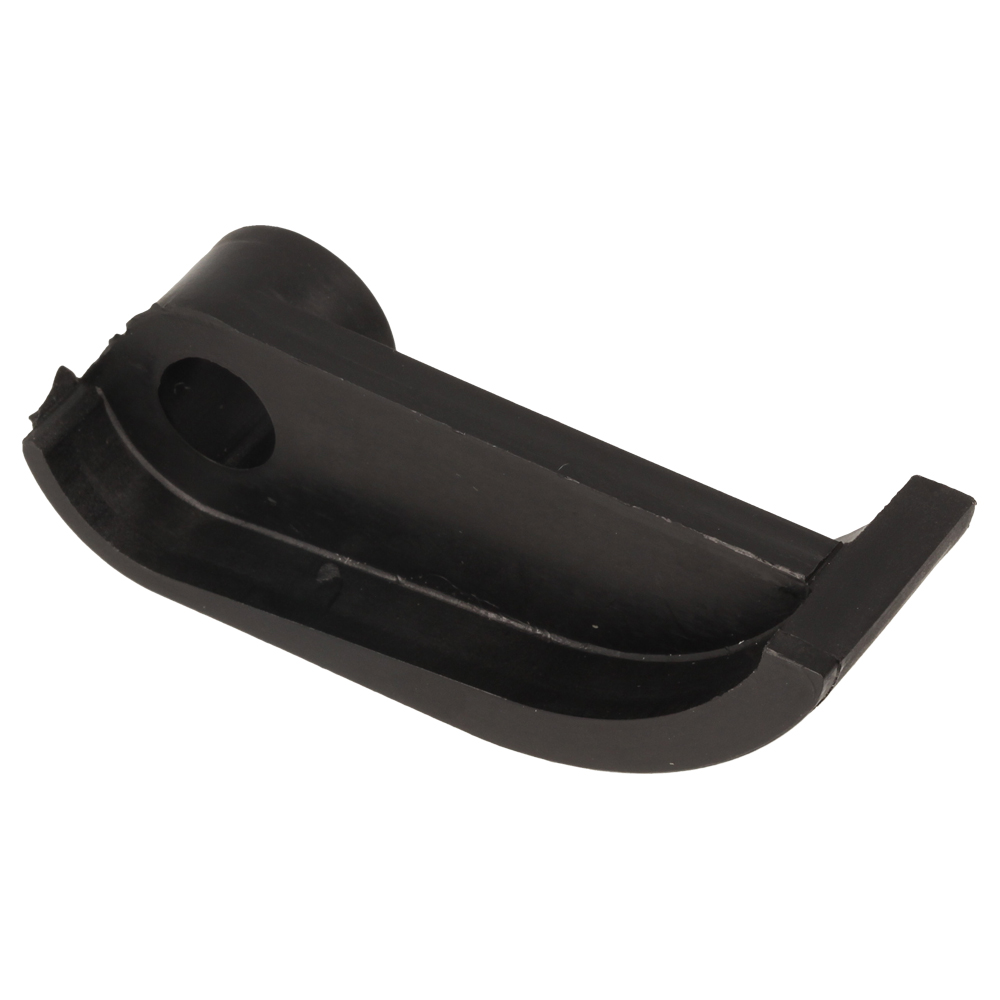

24	MP004963 Available to backorder	Adjuster- Chain Tension Nylon	£4.06 £3.38
26	MP501764 Available to backorder	Nut M6 Hex Nyloc 6 Thck	£0.31 £0.26

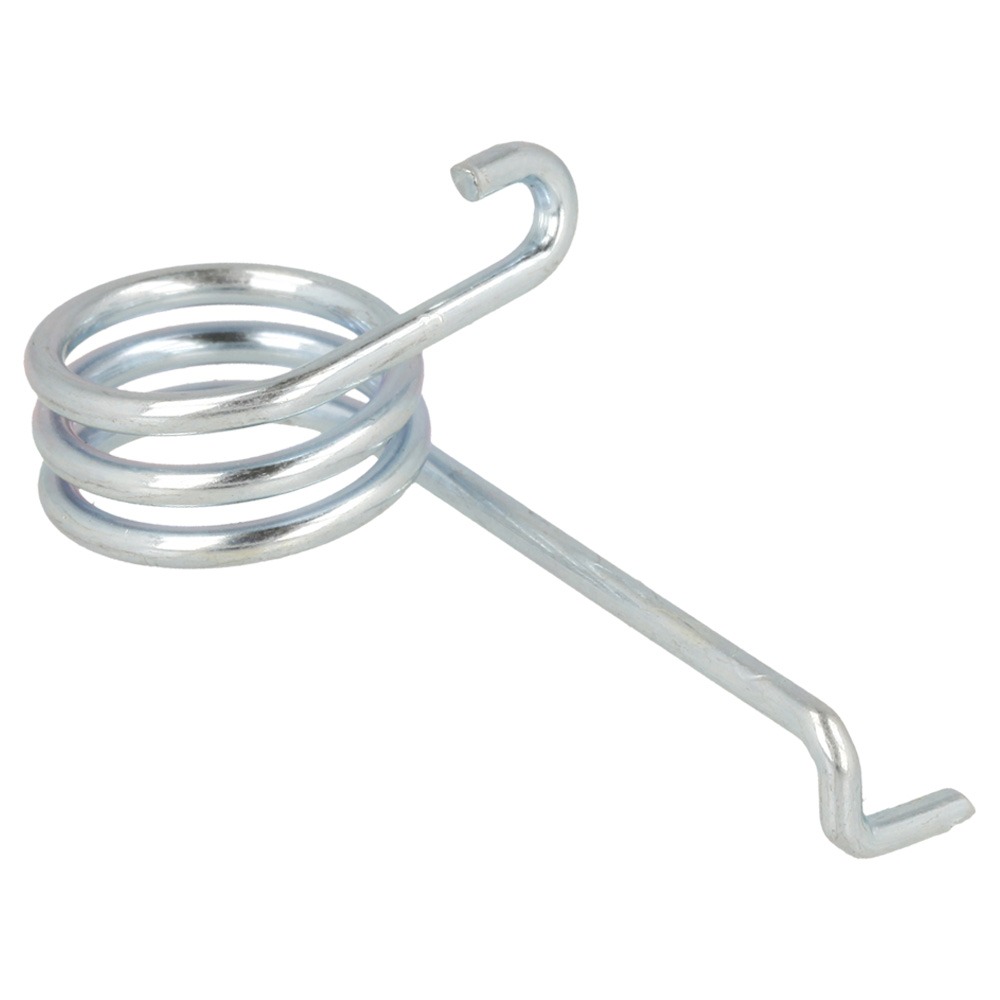

27	MP004945 Available to backorder	Spring	£2.14 £1.78
