Masport Mulcher AL - 579972 - Jun 2008 - Main Assembly

Name: Masport Mulcher AL - 579972 - Jun 2008 - Main Assembly
SKU: mulcheral579972main-group
Price: 0.26 GBP
Availability: InStock

Part No. mulcheral579972main-group

Skip to the end of the images gallery

Skip to the beginning of the images gallery

Masport Mulcher AL - 579972 - Jun 2008 - Main Assembly

Description

Masport Mulcher AL Petrol Push Rotary Mower - Main Assembly Parts Diagram

Part Number: 579972

Model: Mulcher AL

Engine Model: B & S Series 650

Model Range: Jun 2008

Serial Number: -

	Part No.	Details
1	MP781664 Available to backorder	Handle Assy- Upt Adj OPC	£45.20 £37.67
2	MP981740 Available to backorder	Bail Arm Assy OPC MSV	£20.51 £17.09
3	MP581656 In stock	Cable- Engine OPC Push On	£18.80 £15.67
4	MP583458 In stock	Control Assy- Throttle Wescon	£19.93 £16.61
5	MP503604 Available to backorder	Screw Pan M6x45 Poz ZP	£0.83 £0.69
6	MP501764 Available to backorder	Nut M6 Nyloc 6 Thck	£0.31 £0.26
7	MP703856 Available to backorder	Comfort Start Kit	£19.06 £15.88

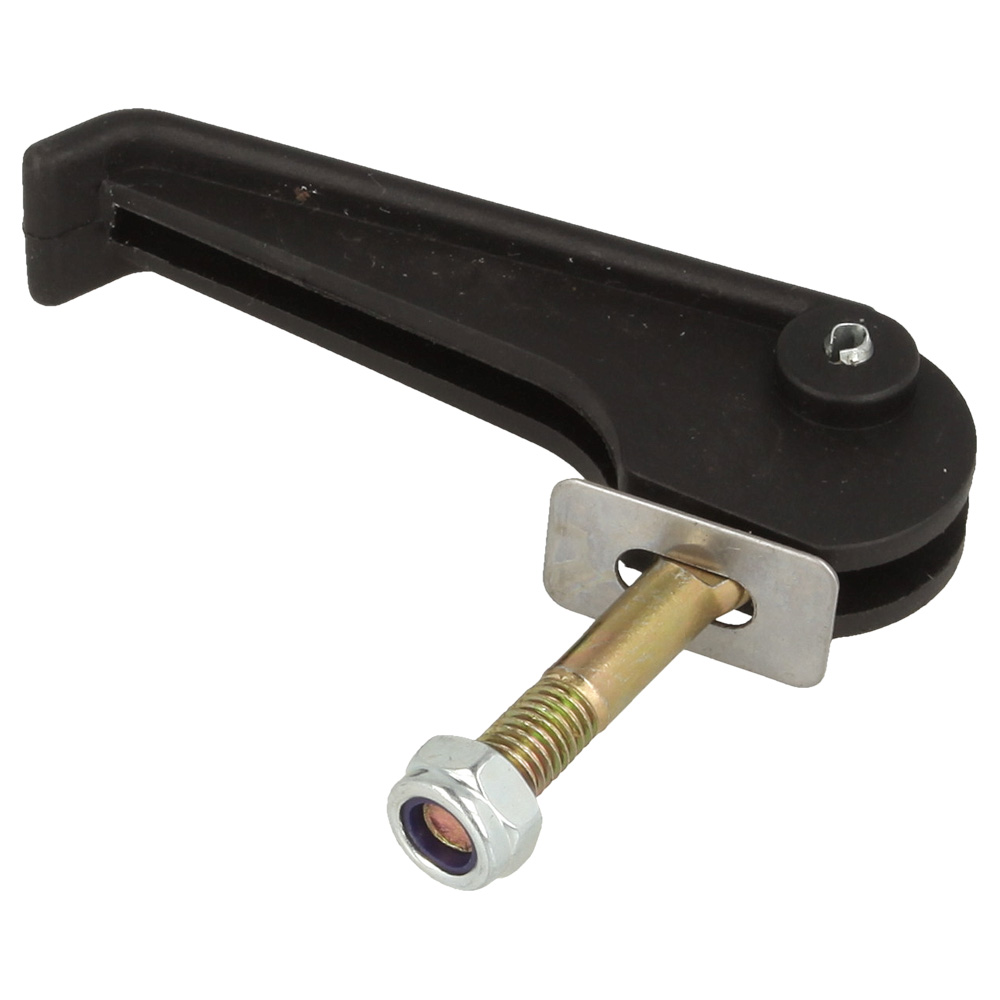

8	MP980456 In stock	Cam Lock Assy	£11.56 £9.63
9	MP581527 Available to backorder	Retainer- Clutch Cable	£0.72 £0.60
10	MP581660 Available to backorder	Disc- Locking Outer	£5.86 £4.88
11	MP581659 Available to backorder	Disc- Locking Inner	£6.17 £5.14
20	MP981712 Available to backorder	Handle- Lower "U" Adj 18"	£25.08 £20.90
21	MP501597 Available to backorder	Screw Set M8x20 Hex	£0.41 £0.34
22	MP501606 Available to backorder	Washer Flat 8x19x1.6	£0.37 £0.31
23	MP501793 Available to backorder	Nut M8 Hex Nyloc 8 Thck	£1.92 £1.60
30	MP983246 Available to backorder	Axle Assy Front 150mm Thrd	£32.15 £26.79
31	MP579196 Available to backorder	Wheel Assy- 175mm BB Spoked	£29.75 £24.79
31	MP579197 Available to backorder	(31a) Wheel Assy- 200mm BB Spoked	£34.57 £28.81
32	MP551212 Available to backorder	Bearing- Wheel Ball Type	£5.75 £4.79
34	MP503831 Available to backorder	Nut M8 Hex Nyloc 6 Thck	£0.72 £0.60
35	MP579198 Available to backorder	Hub Cap Button Spoked	£0.83 £0.69
36	MP580030 In stock	Bush- Pivot Axle	£0.76 £0.63
37	MP783256 Available to backorder	Axle Assy- Rear Thrd	£39.79 £33.16

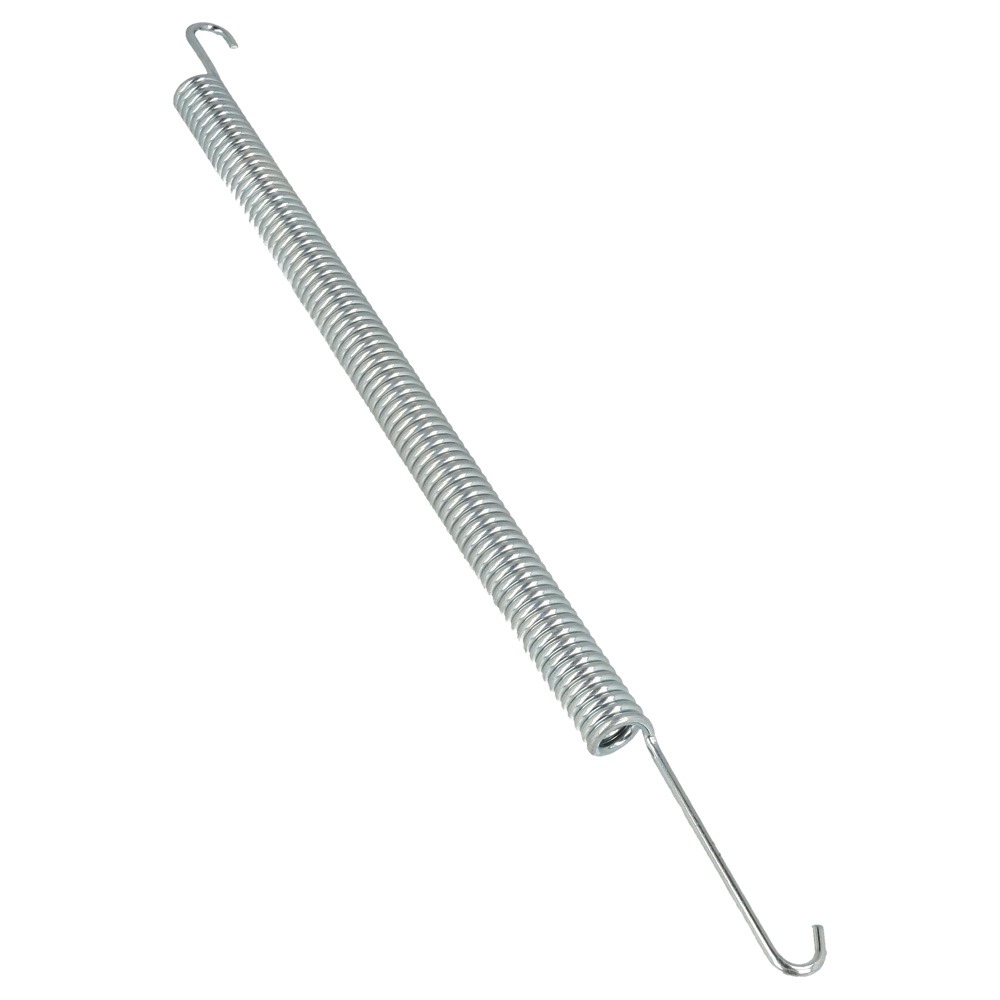

39	MP581463 Available to backorder	Spring Counter Balance Non SP	£7.09 £5.91
40	MP501365 Available to backorder	Clip- Starlock 5.16"	£0.48 £0.40
50	MP779401 Available to backorder	Housing Assy-Mulcher 460	£335.40 £279.50
51	MP980564 Available to backorder	Plate- Retainer Front Axle 18"	£0.83 £0.69
52	MP501599 Available to backorder	Screw S.T 1.4x5.8 Hex	£1.51 £1.26
53	MP580225 Available to backorder	Retainer Axle Rear	£0.72 £0.60
54	MP580025 Available to backorder	Quadrant Height Selector Plastic	£6.64 £5.53
56	MP581240 In stock	Nameplate Masport	£7.14 £5.95
57	MP503150 Available to backorder	Clip- Starlock 5 Dia	£0.48 £0.40
58	MP580453 Available to backorder	Screw S.T 3.8x1-1.8 UNC TRIBLK	£2.23 £1.86
59	MP503783 Available to backorder	Cyclowash- Fitting	£4.46 £3.72
