Masport Mulcher AL - 573998 - March 2010 - Main Assembly

Description

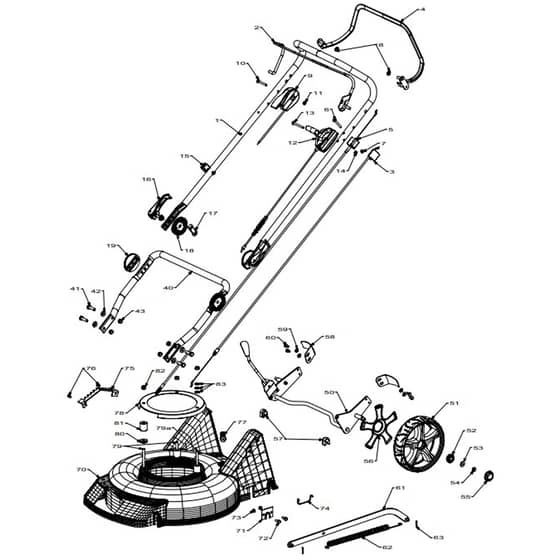

Masport Mulcher AL Petrol Power Drive - Main Assembly Parts Diagram

Part Number: 573998

Model: FWD Mulcher SPV

Engine Model: B & S Series 675

Model Range: March 2010

Serial Number: -

Be the first to review this product

0 product questions

	Part No.	Details
1	MP773721 Available to backorder	Handle Assy- Upt Adj SP-OPC	£39.64 £33.03
2	MP981740 Available to backorder	Bail Arm Assy OPC Flatnd	£21.30 £17.75
3	MP582523 Available to backorder	Cable- Engine OPC Push On	£17.94 £14.95
4	MP982161 Available to backorder	Bail Arm Assy SP	£27.36 £22.80
5	MP569221 Available to backorder	Cable- Clutch Thumb Wheel	£33.58 £27.98
6	MP503604 Available to backorder	Screw Pan M6x45 Poz ZP	£0.86 £0.72
7	MP501764 Available to backorder	Nut M6 Nyloc 6 Thck	£0.35 £0.29
8	MP501365 Available to backorder	Clip- Starlock 5.16"	£0.46 £0.38
9	MP583458 In stock	Control Assy- Throttle Wescon	£21.46 £17.88
12	MP773388 Available to backorder	Control Assy- Speed x 8 SPV	£61.86 £51.55
13	MP503508 Available to backorder	Screw Pan M6x55 Poz ZP	£1.14 £0.95
15	MP782546 Available to backorder	Comfort Start Kit 45mm	£16.68 £13.90
16	MP980456 In stock	Cam Lock Assy	£10.78 £8.98
17	MP581527 Available to backorder	Retainer- Clutch Cable	£0.72 £0.60
18	MP581660 Available to backorder	Disc- Locking Outer	£6.08 £5.07
19	MP581659 Available to backorder	Disc- Locking Inner	£6.42 £5.35
40	MP981712 Available to backorder	Handle- Lower "U" Adj 18"	£21.70 £18.08
42	MP501606 Available to backorder	Washer Flat 8x19x1.6	£0.36 £0.30
43	MP501793 Available to backorder	Nut M8 Hex Nyloc 8 Thck	£1.86 £1.55
50	MP569029 Available to backorder	Axle Assy- Rear FWD Mulcher	£38.94 £32.45
51	MP573706 Available to backorder	Wheel Assy- 200mm BB Mag Slvr	£33.42 £27.85
52	MP551212 Available to backorder	Bearing- Wheel Ball Type	£5.56 £4.63
54	MP503831 Available to backorder	Nut M8 Hex Nyloc 6 Thck	£0.72 £0.60
55	MP573707 Available to backorder	Hub Cap Button Mag Slvr	£0.44 £0.37
56	MP579205 Available to backorder	Cover- Inner Wheel	£2.76 £2.30
57	MP580668 Available to backorder	Bush- Pivot Rear Axle	£0.72 £0.60
58	MP569048 Available to backorder	Cleaner- Tyre Assy	£12.52 £10.43
59	MP501703 Available to backorder	Washer Flt 6x14x1.2	£0.48 £0.40
60	MP501959 Available to backorder	Screw Set M6x12 Hex	£0.38 £0.32
61	MP569033 Available to backorder	Rod Assy Connecting Mulcher	£17.92 £14.93
62	MP569035 Available to backorder	Spring Counter Balance	£8.64 £7.20
63	MP501056 Available to backorder	Pin Cotter2.3Dx16	£0.48 £0.40
70	MP769055 Available to backorder	Hsg Assy- Mulcher 460 FWD Ttnm	£327.36 £272.80
71	MP569053 Available to backorder	Plate- Mount Rear Axle	£3.56 £2.97
72	MP501702 Available to backorder	Screw Set M6x16 Hex	£0.44 £0.37
74	MP580225 Available to backorder	Retainer- Axle Rear	£0.72 £0.60
75	MP573325 Available to backorder	Quadrant Height Selector Stl	£17.56 £14.63
77	MP503783 Available to backorder	Cyclowash- Fitting	£4.62 £3.85
78	MP569037 Available to backorder	Ring- Safety FWD Mulcher	£18.80 £15.67
80	MP583448 Available to backorder	Spacer- Base Eng	£1,078.80 £899.00
83	MP501744 Available to backorder	Washer Flt 8x17x1.6	£0.48 £0.40
