Masport Mulcher AL - 567969 - Sept 2012 >7660679 - Main Assembly

Name: Masport Mulcher AL - 567969 - Sept 2012 >7660679 - Main Assembly
SKU: mulcheral5679697660679main-group
Price: 0.29 GBP
Availability: InStock

Skip to the end of the images gallery

Skip to the beginning of the images gallery

Masport Mulcher AL - 567969 - Sept 2012 >7660679 - Main Assembly

Description

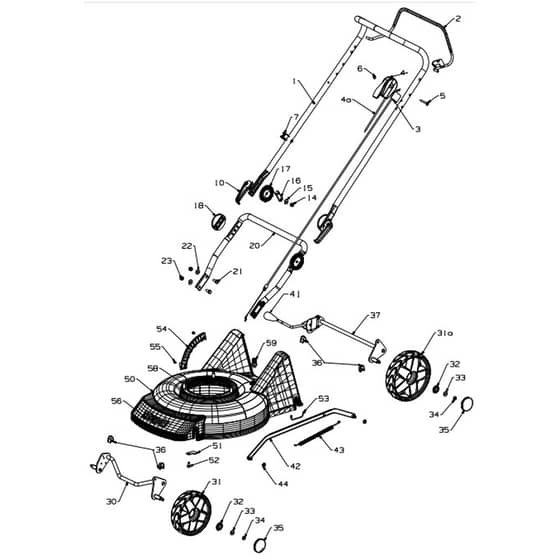

Masport Mulcher AL Petrol Push Rotary Mower - Main Assembly Parts Diagram

Part Number: 567969

Model: Mulcher AL

Engine Model: B & S Series 500

Model Range: Sept 2012

Serial Number: >7660679

Be the first to review this product

0 product questions

	Part No.	Details
1	MP773721	Handle- Upper Assy	Out of stock	£41.00 £34.17
2	MP981740	Bail Arm Assy OPC MSV	Out of stock	£21.30 £17.75
3	MP582523	Cable- Engine OPC Push On	Out of stock	£19.30 £16.08
4	MP579313	(4a) Cable- Throttle Inner& Outer	Out of stock	£18.64 £15.53
4	MP583458	Control- Throttle Housing Wescon	In stock	£19.99 £16.66
5	MP503604	Screw Pan M6x45 Poz ZP	Out of stock	£0.86 £0.72
6	MP501764	Nut M6 Nyloc 6 Thck	Out of stock	£0.35 £0.29
7	MP703856	Comfort Start kit	Out of stock	£19.80 £16.50
10	MP779755	Cam Lock Assy	In stock	£10.80 £9.00
14	MP501793	Nut M8 Hex Nyloc 8 Thck	Out of stock	£0.62 £0.52
15	MP501606	Washer Flat 8x19x1.6	Out of stock	£0.41 £0.34
16	MP581527	Retainer- Clutch Cable	Out of stock	£0.72 £0.60
17	MP581660	Disc- Locking Outer	Out of stock	£6.08 £5.07
18	MP581659	Disc- Locking Inner	Out of stock	£6.42 £5.35
20	MP981712	Handle- Lower "U" Adj 18"	Out of stock	£22.45 £18.71
21	MP501597	Screw Set M8x20 Hex	Out of stock	£0.44 £0.37
31	MP579196	Wheel Assy- 175mm BB Spoked	Out of stock	£30.90 £25.75
31	MP579197	(31a) Wheel Assy- 200mm BB Spoked	Out of stock	£35.92 £29.93
32	MP551212	Bearing- Wheel Ball Type	Out of stock	£5.98 £4.98
34	MP503831	Nut M8 Hex Nyloc 6 Thck	Out of stock	£0.72 £0.60
35	MP579198	Hub Cap Button Spoked	Out of stock	£0.86 £0.72
36	MP580030	Bush- Pivot Axle	Out of stock	Was £0.72 £0.60 Special Price £0.56 £0.47
41	MP581729	Knob -Height Lever Adjust	Out of stock	£3.12 £2.60
42	MP981157	Rod Assy Connecting Mulcher	Out of stock	£16.68 £13.90
43	MP581463	Spring Counter Balance Non SP	Out of stock	£7.38 £6.15
44	MP501365	Clip- Starlock 5.16"	Out of stock	£0.54 £0.45
50	MP779401	Housing Assy Ali	Out of stock	£307.08 £255.90
51	MP980564	Plate- Retainer Front Axle 18"	Out of stock	£0.86 £0.72
52	MP501599	Screw S.T 1.4x5.8 Hex	Out of stock	£1.58 £1.32
53	MP580225	Retainer Axle Rear	Out of stock	£0.72 £0.60
54	MP580025	Quadrant Height Selector Plastic	Out of stock	£6.42 £5.35
56	MP569144	Nameplate Masport Gel Decal	Out of stock	£9.46 £7.88
58	MP580453	Screw S.T 3.8x1-1.8 UNC TRIBLK	Out of stock	£2.32 £1.93
59	MP503783	Cyclowash- Fitting	Out of stock	£4.62 £3.85
