Description

Masport MSV Petrol Push Rotary Mower - Main Assembly Parts Diagram

Part Number: 983852

Model: MSV 550

Engine Model: Quantum XVS 50

Model Range: Oct 2004

Serial Number: 1628801

Ref. Img. Part No. Details
  1 Mount-Throttle Top - Aubergine
Mount-Throttle Top - Aubergine
MP983320
Available to backorder
Mount-Throttle Top - Aubergine
£8.58 £7.15

  2 Screw Pan M6 x 45
Screw Pan M6 x 45
MP503604
Available to backorder
Screw Pan M6 x 45
£0.86 £0.72

  3 Control-Throttle -Ve.Nch
Control-Throttle -Ve.Nch
MP783466
Available to backorder
Control-Throttle -Ve.Nch
£23.82 £19.85

  4 Nut-Nyloc M6
Nut-Nyloc M6
MP501764
Available to backorder
Nut-Nyloc M6
£0.35 £0.29

  5 Arm Assy-Bail
Arm Assy-Bail
MP979278
Available to backorder
Arm Assy-Bail
£56.76 £47.30

  7 Handle & Sleeve Assy-Upp
Handle & Sleeve Assy-Upp
MP783509
Available to backorder
Handle & Sleeve Assy-Upp
£108.24 £90.20

  8 Cover-Throttle Bott
Cover-Throttle Bott
MP583521
Available to backorder
Cover-Throttle Bott
£4.42 £3.68

  9 Screw S.T M5 x 18
Screw S.T M5 x 18
MP503650
Available to backorder
Screw S.T M5 x 18
£1.14 £0.95

  10 Handle-Lower “U” - Adjustab
Handle-Lower “U” - Adjustab
MP982418
Available to backorder
Handle-Lower “U” - Adjustab
£34.66 £28.88

  11 Screw Set M8 x 20
Screw Set M8 x 20
MP501597
Available to backorder
Screw Set M8 x 20
£0.44 £0.37

  12 Disc-Locking Inner
Disc-Locking Inner
MP581659
Available to backorder
Disc-Locking Inner
£6.42 £5.35

  13 Retainer-Clutch Cable-Handle
Retainer-Clutch Cable-Handle
MP581527
Available to backorder
Retainer-Clutch Cable-Handle
£0.72 £0.60

  14 Nut-Nyloc M8
Nut-Nyloc M8
MP501793
Available to backorder
Nut-Nyloc M8
£1.86 £1.55

  15 Disc-Locking Outer
Disc-Locking Outer
MP581660
Available to backorder
Disc-Locking Outer
£6.08 £5.07

  16 Cam Lock Assy
Cam Lock Assy
MP779755
In stock
Cam Lock Assy
£10.06 £8.38

  17 Kit - Comfort Sart
Kit - Comfort Sart
MP782546
Available to backorder
Kit - Comfort Sart
£16.68 £13.90

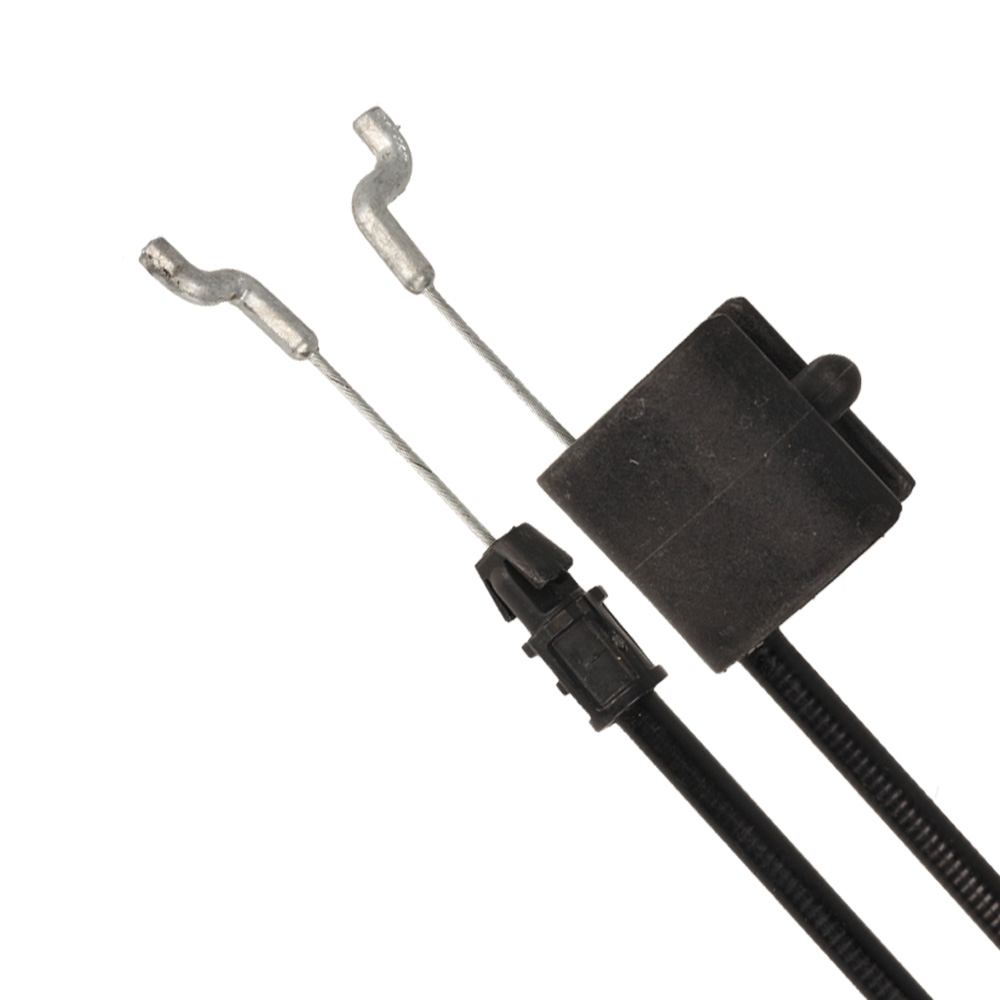

  18 Cable-Engine
Cable-Engine
MP582516
Available to backorder
Cable-Engine
£16.08 £13.40

  20 • Flap-Spring
• Flap-Spring
MP583343
Available to backorder
• Flap-Spring
£2.16 £1.80

  21 • Wire-Flap Pivot 325mm x 8mm
• Wire-Flap Pivot 325mm x 8mm
MP583312
Available to backorder
• Wire-Flap Pivot 325mm x 8mm
£4.96 £4.13

  22 Axle Assy-Rear
Axle Assy-Rear
MP783302
Available to backorder
Axle Assy-Rear
£36.14 £30.12

  23 • Knob-Height Lever Adjust
• Knob-Height Lever Adjust
MP581729
Available to backorder
• Knob-Height Lever Adjust
£3.12 £2.60

  24 • Rod-Height Selector
• Rod-Height Selector
MP583592
Available to backorder
• Rod-Height Selector
£5.80 £4.83

  25 • Spring-Leaf
• Spring-Leaf
MP580649
Available to backorder
• Spring-Leaf
£5.62 £4.68

  26 • Rivet-Flat Head 3.16
• Rivet-Flat Head 3.16
MP503373
Available to backorder
• Rivet-Flat Head 3.16" x 27.64"
£0.96 £0.80

  28 Bush-Pivot Axle Rear
Bush-Pivot Axle Rear
MP580668
Available to backorder
Bush-Pivot Axle Rear
£0.72 £0.60

  29 Screw-Set M6 x 12
Screw-Set M6 x 12
MP501959
Available to backorder
Screw-Set M6 x 12
£0.38 £0.32

  30 Plate-Antispill
Plate-Antispill
MP583360
Available to backorder
Plate-Antispill
£20.04 £16.70

  31 Bush-Pivot Axle
Bush-Pivot Axle
MP580030
In stock
Bush-Pivot Axle
£0.70 £0.58

  32 Brace-Rear
Brace-Rear
MP583512
Available to backorder
Brace-Rear
£18.34 £15.28

  33 Rivet-Pop 4.0 Dia x 7.9
Rivet-Pop 4.0 Dia x 7.9
MP503226
Available to backorder
Rivet-Pop 4.0 Dia x 7.9
£0.35 £0.29

  34 Wheel Assy-200mm BB
Wheel Assy-200mm BB
MP573703
Available to backorder
Wheel Assy-200mm BB
£38.24 £31.87

  35 • Bearing-Wheel (2 per wheel)
• Bearing-Wheel (2 per wheel)
MP551212
Available to backorder
• Bearing-Wheel (2 per wheel)
£5.56 £4.63

  36 Washer Flat 8 x 19 x 1.6
Washer Flat 8 x 19 x 1.6
MP501606
Available to backorder
Washer Flat 8 x 19 x 1.6
£0.36 £0.30

  37 Nut-Nyloc M8
Nut-Nyloc M8
MP503831
Available to backorder
Nut-Nyloc M8
£0.72 £0.60

  38 Hub Cap-Button - Charcoal
Hub Cap-Button - Charcoal
MP583309
Available to backorder
Hub Cap-Button - Charcoal
£1.84 £1.53

  39 Clip-Starlock 5.16
Clip-Starlock 5.16
MP501365
Available to backorder
Clip-Starlock 5.16"
£0.46 £0.38

  40 Rod Assy-Connecting
Rod Assy-Connecting
MP983301
Available to backorder
Rod Assy-Connecting
£16.42 £13.68

  41 Spring-Counter Balance
Spring-Counter Balance
MP581463
Available to backorder
Spring-Counter Balance
£6.84 £5.70

  42 Retainer-Axle Rear
Retainer-Axle Rear
MP580225
Available to backorder
Retainer-Axle Rear
£0.72 £0.60

  43 Screw S.T M4 x 10
Screw S.T M4 x 10
MP503834
Available to backorder
Screw S.T M4 x 10
£0.38 £0.32

  44 Skirt-Side L.H - Charcoal
Skirt-Side L.H - Charcoal
MP583625
Available to backorder
Skirt-Side L.H - Charcoal
£13.10 £10.92

  45 Plate Retainer Axle - Front
Plate Retainer Axle - Front
MP983315
Available to backorder
Plate Retainer Axle - Front
£0.96 £0.80

  46 Screw. S.T 1.4
Screw. S.T 1.4
MP501599
Available to backorder
Screw. S.T 1.4" x 5.8"
£1.58 £1.32

  47 Cover-Rear Wheel
Cover-Rear Wheel
MP583327
Available to backorder
Cover-Rear Wheel
£6.14 £5.12

  48 Axle Assy-Front 200mm
Axle Assy-Front 200mm
MP983305
Available to backorder
Axle Assy-Front 200mm
£31.54 £26.28

  49 Screw. S.T 3. 8
Screw. S.T 3. 8
MP580453
Available to backorder
Screw. S.T 3. 8" x 1 1.8" UNC
£2.32 £1.93

  50 Cyclowash-Fitting
Cyclowash-Fitting
MP503783
Available to backorder
Cyclowash-Fitting
£4.62 £3.85

  52 Skirt-Side R.H - Charcoal
Skirt-Side R.H - Charcoal
MP583624
Available to backorder
Skirt-Side R.H - Charcoal
£13.12 £10.93

  53 Rivet-Pop 4.8 Dia x 12.7
Rivet-Pop 4.8 Dia x 12.7
MP503200
Available to backorder
Rivet-Pop 4.8 Dia x 12.7
£0.30 £0.25

  54 Quadrant-Height Selector
Quadrant-Height Selector
MP583318
Available to backorder
Quadrant-Height Selector
£5.34 £4.45
