Masport MSV - 983851 - May 2002 46878681 - Main Assembly

Description

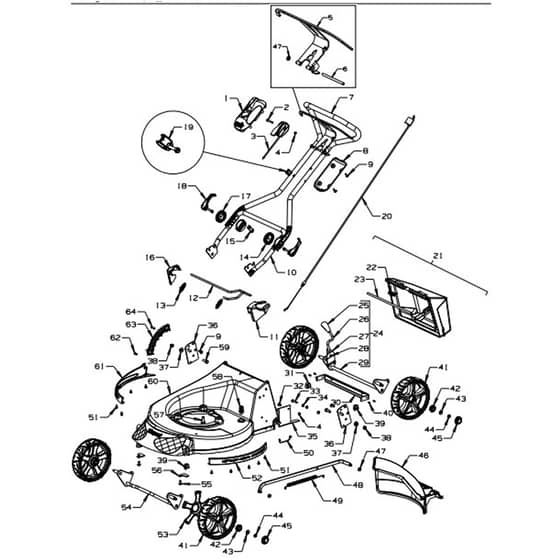

Masport MSV Petrol Push Rotary Mower - Main Assembly Parts Diagram

Part Number: 983851

Model: MSV 3'n'1

Engine Model: Quantum XVS 60

Model Range: May 2002

Serial Number: 46878681

Be the first to review this product

0 product questions

	Part No.	Details
1	MP983320 Available to backorder	Mount-Throttle Top - Aubergine	£8.58 £7.15
2	MP503604 Available to backorder	Screw Pan M6 x 45	£0.86 £0.72
3	MP783466 Available to backorder	Control-Throttle -Ve.Nch	£23.82 £19.85
4	MP501764 Available to backorder	Nut-Nyloc M6	£0.35 £0.29
5	MP979278 Available to backorder	Bail Arm Assy - Charcoal	£56.76 £47.30
7	MP783509 Available to backorder	Handle & Sleeve Assy Upp	£108.24 £90.20
8	MP583521 Available to backorder	Cover-Throttle Bott	£4.42 £3.68
9	MP503650 Available to backorder	Screw S.T M5 x 18	£1.14 £0.95
10	MP982418 Available to backorder	Handle-Lower ”U” (Adjustible Lif	£34.66 £28.88
11	MP583335 Available to backorder	Cover-Handle LH - Charcoal	£6.34 £5.28
12	MP983332 Available to backorder	Rod Assy-Adjuster Low	£47.62 £39.68
13	MP580268 Available to backorder	Spring-Pedal	£1.30 £1.08
14	MP581659 Available to backorder	Disc-Locking Inner	£6.42 £5.35
15	MP581527 Available to backorder	Retainer-Clutch Cable-Handle	£0.72 £0.60
16	MP583336 Available to backorder	Cover-Handle RH - Charcoal	£6.26 £5.22
17	MP581660 Available to backorder	Disc-Locking Outer	£6.08 £5.07
18	MP779755 In stock	Cam Lock Assy	£10.06 £8.38
19	MP782546 Available to backorder	Kit - Comfort Sart	£16.68 £13.90
20	MP582516 Available to backorder	Cable-Engine	£16.08 £13.40
22	MP583343 Available to backorder	• Spring-Flap	£2.16 £1.80
23	MP583312 Available to backorder	• Wire-Flap Pivot 325mm x 8mm	£4.96 £4.13
24	MP783302 Available to backorder	Axle Assy-Re	£36.14 £30.12
25	MP581729 Available to backorder	• Knob-Height Lever Adjust	£3.12 £2.60
26	MP583592 Available to backorder	• Rod-Height Selector	£5.80 £4.83
27	MP580649 Available to backorder	• Spring-Leaf	£5.62 £4.68
28	MP503373 Available to backorder	• Rivet-Flathead 3.16" x 27.64"	£0.96 £0.80
30	MP583512 Available to backorder	Brace-Rear	£18.34 £15.28
31	MP580668 Available to backorder	Bush-Pivot Axle Rear	£0.72 £0.60
32	MP501962 Available to backorder	Screw Set M6 x 30	£0.80 £0.67
33	MP501959 Available to backorder	Screw Set M6 x 12	£0.38 £0.32
34	MP501682 Available to backorder	Nut M6	£2.60 £2.17
35	MP583360 Available to backorder	Plate-Antispill	£20.04 £16.70
38	MP501793 Available to backorder	Nut-Nyloc M8	£1.86 £1.55
39	MP580030 In stock	Bush-Pivot Axle	£0.70 £0.58
40	MP503226 Available to backorder	Rivet-Pop 4.0 Dia x 7.9	£0.35 £0.29
41	MP573703 Available to backorder	Wheel Assy-200mm BB	£38.24 £31.87
42	MP551212 Available to backorder	• Bearing-Wheel (2 per wheel)	£5.56 £4.63
43	MP501606 Available to backorder	Washer Flat 8 x 19 x 1.6	£0.36 £0.30
44	MP503831 Available to backorder	Nut-Nyloc M8	£0.72 £0.60
45	MP583309 Available to backorder	Hub Cap-Button - Charcoal	£1.84 £1.53
46	MP783472 Available to backorder	Insert-Mulching	£41.24 £34.37
47	MP501365 Available to backorder	Clip-Starlock 5.16"	£0.46 £0.38
48	MP983301 Available to backorder	Rod Assy-Connecting	£16.42 £13.68
49	MP581463 Available to backorder	Spring-Counter Balance	£6.84 £5.70
50	MP580225 Available to backorder	Retainer-Axle Rear	£0.72 £0.60
51	MP503834 Available to backorder	Screw S.T M4 x 10	£0.38 £0.32
52	MP583625 Available to backorder	Skirt-Side LH - Charcoal	£13.10 £10.92
53	MP583327 Available to backorder	Cover-Rear Wheel - Charcoal	£6.14 £5.12
54	MP983305 Available to backorder	Axle Assy-Front 200mm	£31.54 £26.28
55	MP501599 Available to backorder	Screw. S.T 1.4" X 5.8"	£1.58 £1.32
56	MP583315 Available to backorder	Plate-Retainer Axle Front	£1.52 £1.27
57	MP580453 Available to backorder	Screw. S.T 3. 8" x 1 1.8"	£2.32 £1.93
58	MP503783 Available to backorder	Cyclowash-Fitting	£4.62 £3.85
59	MP501685 Available to backorder	Screw Set M8 x 30	£0.80 £0.67
61	MP583624 Available to backorder	Skirt-Side R.H - Charcoal	£13.12 £10.93
62	MP503200 Available to backorder	Rivet-Pop 4.8 Dia x 12.7	£0.30 £0.25
63	MP583318 Available to backorder	Quadrant-Height Selector	£5.34 £4.45
