Masport MSV - 983851 - May 2002 46878681 - 485mm Disc Blade Assembly

Name: Masport MSV - 983851 - May 2002 46878681 - 485mm Disc Blade Assembly
SKU: msv98385146878681485mmdiscblade-group
Price: 0.26 GBP
Availability: InStock

Part No. msv98385146878681485mmdiscblade-group

Skip to the end of the images gallery

Skip to the beginning of the images gallery

Masport MSV - 983851 - May 2002 46878681 - 485mm Disc Blade Assembly

Description

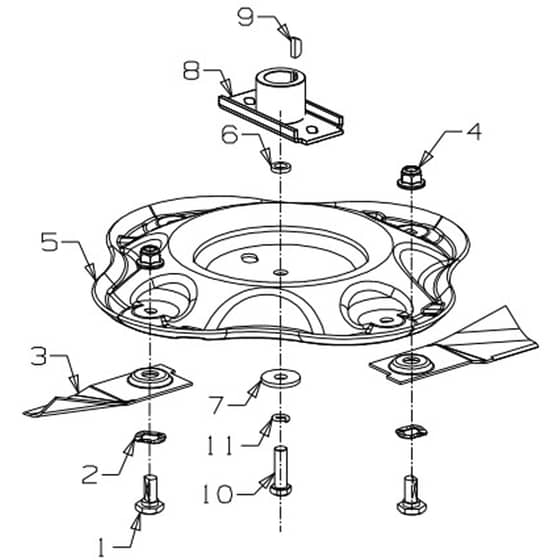

Masport MSV Petrol Push Rotary Mower - 485mm Disc Blade Assembly Parts Diagram

Part Number: 983851

Model: MSV 3'n'1

Engine Model: Quantum XVS 60

Model Range: May 2002

Serial Number: 46878681

	Part No.	Details
1	MP581707 In stock	• Bolt-Blade M10 x 22	£2.41 £2.01
2	MP580693 In stock	• Washer Wavy 13.4 x 24.2 x .51	£0.37 £0.31
3	MP783529 In stock	• Blade-Swing Back - 485mm	£18.16 £15.13
4	MP503672 In stock	• Nut Flange Nyloc M10	£0.36 £0.30
5	MP783314 Available to backorder	Disc-Blade Contoured	£52.80 £44.00
5	MP783603 Available to backorder	(5a) Kit-Insert	£21.14 £17.62
7	MP503855 Available to backorder	• Washer 9.75 x 30 x 4	£1.66 £1.38
8	MP031640 Available to backorder	Driver-Blade - 25mm Shaft	£21.84 £18.20
9	MP503363 Available to backorder	Key Woodru	£0.41 £0.34
10	MP581610 In stock	Screw Set NF 3.8" x 1.25	£2.11 £1.76
11	MP500204 Available to backorder	Washer Spring 3.8"	£0.31 £0.26
