Masport MC900 - 536672 - Jun 2022 - Plate Assembly

Name: Masport MC900 - 536672 - Jun 2022 - Plate Assembly
SKU: mc900536672plate-group
Price: 0.27 GBP
Availability: InStock

Skip to the end of the images gallery

Skip to the beginning of the images gallery

Masport MC900 - 536672 - Jun 2022 - Plate Assembly

Description

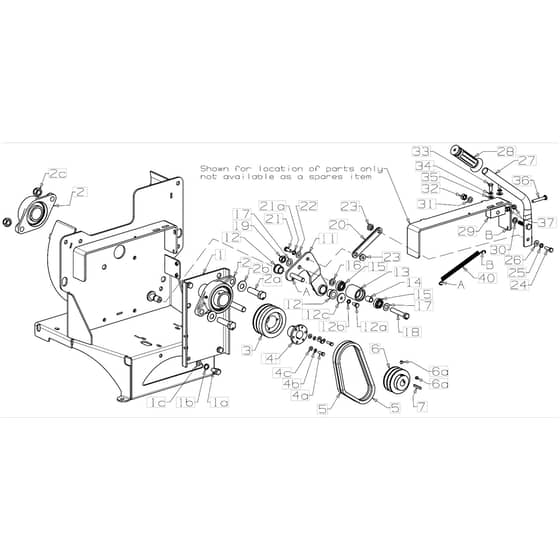

Masport MC900 Petrol Shredder - Plate Assembly Parts Diagram

Part Number: 536672

Model: MC900H 6.0HP

Engine Model: Honda GX200

Model Range: Jun 2022

Serial Number: -

Be the first to review this product

0 product questions

	Part No.	Details
1	MP501704 Available to backorder	(1c) Washer Flat 10 x 19 x 1.6	£0.44 £0.37
1	MP503897 Available to backorder	(1b) Washer SPg 10	£0.35 £0.29
1	MP501846 Available to backorder	(1a) Screw Set M10 x 25HT Hex	£1.40 £1.17
2	MP502017 Available to backorder	(2b) Washer Flat 16 x 32 x 1.6	£1.18 £0.98
2	MP536651 Available to backorder	Bearing- Two Bolt Flanged 40mm	£57.88 £48.23
3	MP536657 Available to backorder	Pulley- V 2 Groove 100mm	£100.92 £84.10
4	MP501703 Available to backorder	(4c) Washer Flat 6 x 14 x 1.2	£0.48 £0.40
4	MP536658 Available to backorder	Bush- Biloc 28mm Bore	£67.92 £56.60
5	MP536642 Available to backorder	Belt-V A21	£14.78 £12.32
6	MP503386 Available to backorder	(6a) Screw Grub M8 x 8	£0.44 £0.37
7	MP536012 Available to backorder	Key- Square 5 x 5 x 35	£2.86 £2.38
11	MP536630 Available to backorder	Idler Assy- Belt Tensioner	£30.38 £25.32
12	MP536634 Available to backorder	Bush- Idler Swivel Chip Acetal	£10.36 £8.63
12	MP572199 Available to backorder	(12c) Washer Flat 8 x 32 x 2.0	£1.36 £1.13
12	MP503747 Available to backorder	(12b) Washer SPG 8	£0.48 £0.40
13	MP536655 Available to backorder	Pulley- Idler	£39.46 £32.88
14	MP536678 Available to backorder	Spacer- Belt Idler 13 x 16 x 19.5	£5.94 £4.95
15	MP501213 Available to backorder	Bearing 12 x 32 x 10 6201 2RS	£16.70 £13.92
20	MP536635 Available to backorder	Lever- Idler Connect Arm	£18.30 £15.25
21	MP501597 Available to backorder	Screw Set M8 x 20 Hex	£0.44 £0.37
22	MP501606 Available to backorder	Washer Flat 8 x 19 x 1.6	£0.36 £0.30
23	MP574208 Available to backorder	Nut- Pivot Con-Rod	£1.64 £1.37
24	MP502296 Available to backorder	Screw Set M8 x 25 HT Hex	£1.18 £0.98
27	MP936636 Available to backorder	Handle Assy- Actuator Chipper	£33.16 £27.63
28	MP550368 Available to backorder	Handle Grips- Plastic Black	£5.32 £4.43
29	MP536639 Available to backorder	Mount- Handle Actuator	£40.26 £33.55
32	MP503672 In stock	Nut M10 Hex Nyloc x 10mm thick	£0.32 £0.27
37	MP501793 Available to backorder	Nut M8 Hex Nyloc x 8mm thick	£1.86 £1.55
40	MP580621 Available to backorder	Spring- Counter Balance	£5.14 £4.28
