Masport Maxicatch - 983979 - Main Assembly

Description

Masport Maxicatch Petrol Push Rotary Mower - Main Assembly Parts Diagram

Part Number: 983979

Model: Maxicatch 300

Engine Model: Sprint 375

Model Range: -

Serial Number: -

Be the first to review this product

0 product questions

	Part No.	Details
1	MP503604 Available to backorder	Screw Pan M6 x 45	£0.86 £0.72
2	MP583034 Available to backorder	Handle-Bail	£18.54 £15.45
4	MP501764 Available to backorder	Nut Nyloc M6	£0.35 £0.29
5	MP503460 Available to backorder	Plug-Nylon 6.3mm Dia	£0.68 £0.57
6	MP581656 Available to backorder	Cable-Engine	£17.54 £14.62
7	MP583458 In stock	Control-Throttle -Ve N.Ch	£21.46 £17.88
9	MP503319 Available to backorder	Plug-22mm	£0.72 £0.60
10	MP980692 Available to backorder	Handle-Lower "Stub" - Black	£13.10 £10.92
11	MP581527 Available to backorder	Retainer-Control Cable Handle	£0.72 £0.60
12	MP574218 Available to backorder	Bolt SPH M8 x 53 x 35	£1.70 £1.42
13	MP501793 Available to backorder	Nut Nyloc M8	£1.86 £1.55
14	MP501597 Available to backorder	Screw Screw M8 x 20	£0.44 £0.37
15	MP574230 In stock	Knob M8 - Plastic	£4.32 £3.60
16	MP503794 Available to backorder	Screw-Set M6 x	£0.35 £0.29
17	MP782546 Available to backorder	Guide-Rope - Comfort Start	£16.68 £13.90
18	MP783470 Available to backorder	Chute Assy-Grass (Optional)	£171.08 £142.57

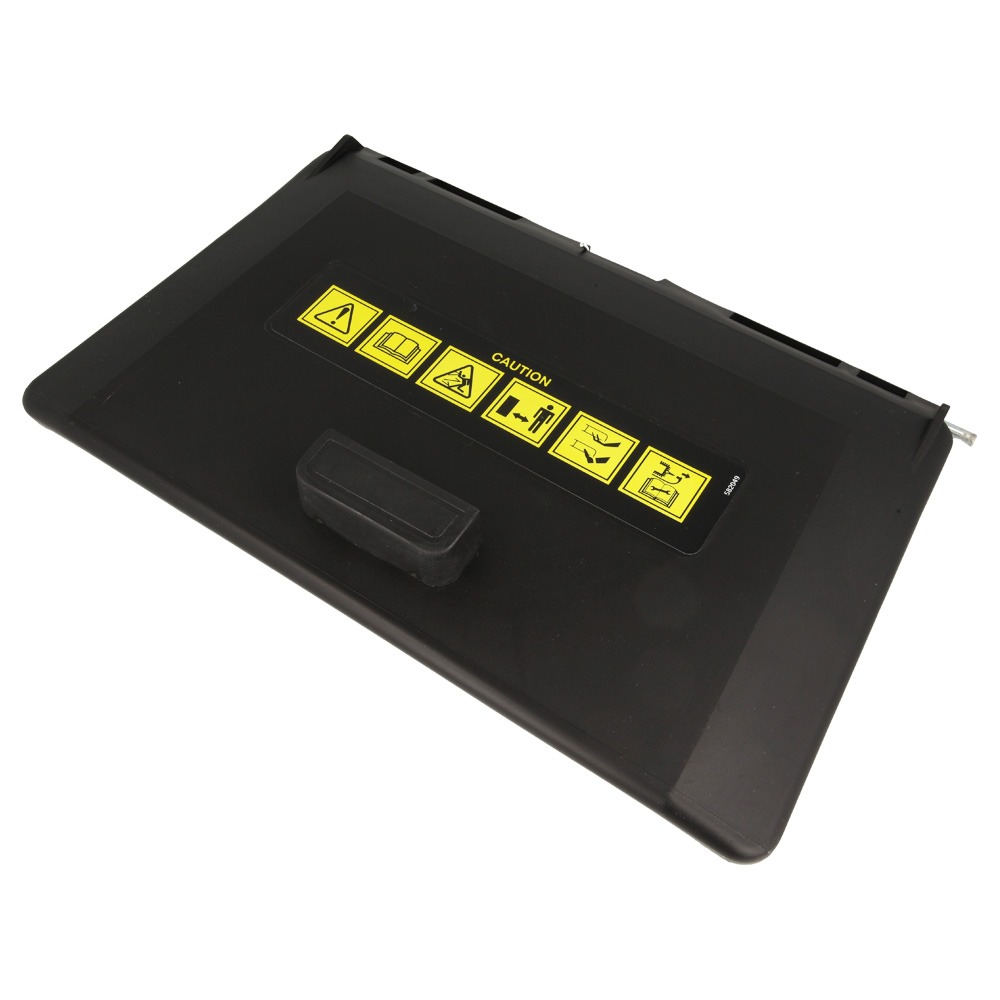

19	MP782200 Available to backorder	Flap Assy-Rear Plastic	£45.50 £37.92
21	MP580602 Available to backorder	• Handle-Flap	£2.82 £2.35
22	MP581106 Available to backorder	• Spring-Latch Flap	£1.14 £0.95
23	MP981650 Available to backorder	• Latch-Flap Barbed	£10.70 £8.92
24	MP581528 Available to backorder	Spring-Flap	£2.20 £1.83
25	MP581743 Available to backorder	Wire-6mm x 352mm Flap Pivot	£2.98 £2.48
26	MP980229 Available to backorder	Lever Assy-Height Adjuster	£13.82 £11.52

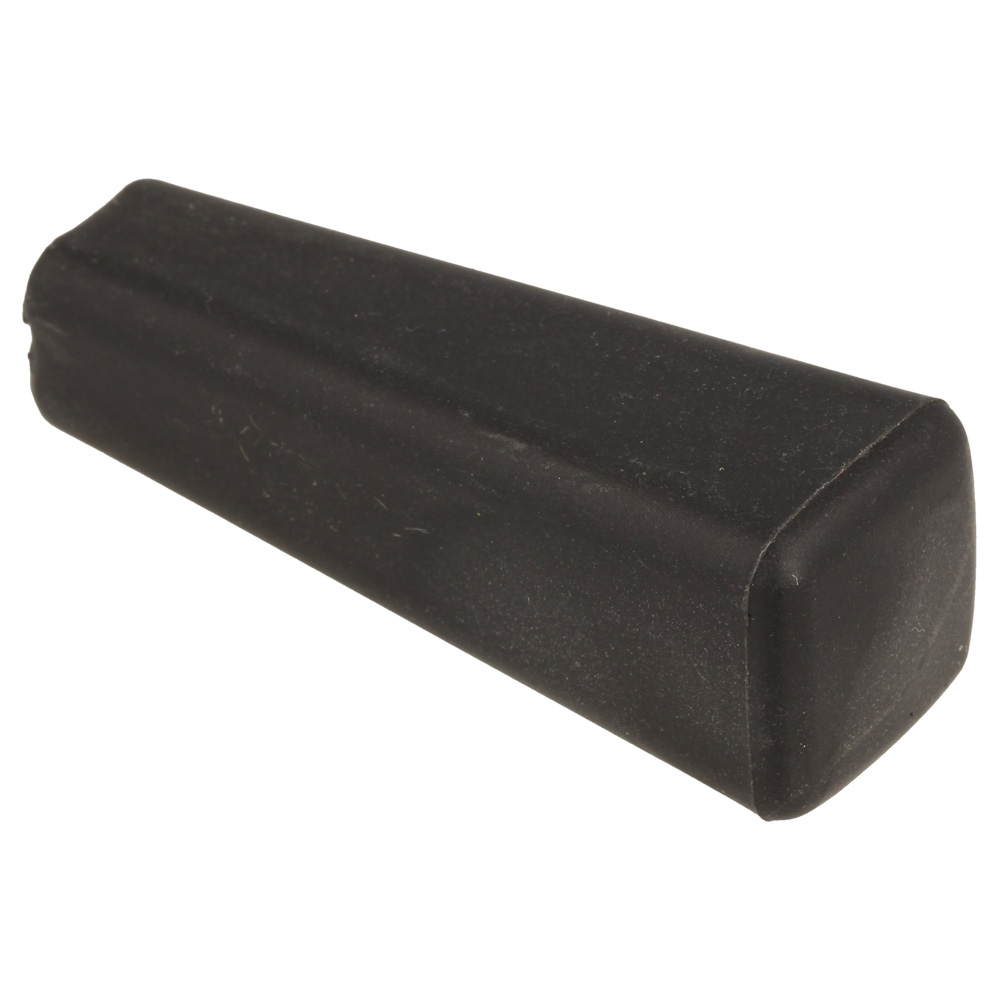

28	MP580056 Available to backorder	• Grip-7.9 Dia	£1.14 £0.95

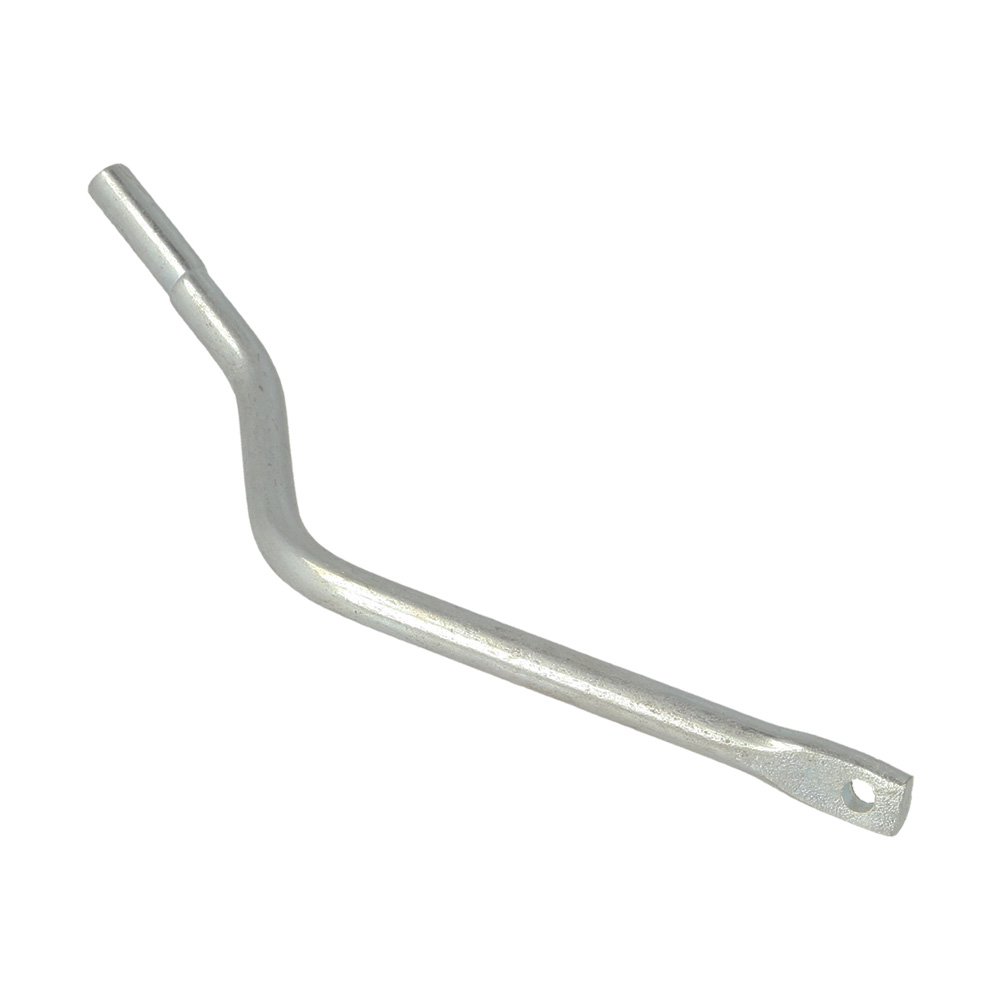

29	MP980733 Available to backorder	• Rod-Height Selector	£4.28 £3.57
30	MP580649 Available to backorder	• Spring-Leaf	£5.62 £4.68
31	MP503373 Available to backorder	• Rivet 3.16" x 27.64"	£0.96 £0.80
32	MP580020 Available to backorder	• Axle Assy-Rear	£25.48 £21.23
33	MP580030 In stock	Bush-Pivot Axle	£0.70 £0.58
34	MP983267 Available to backorder	• Brace-Rear Adaptor	£28.40 £23.67
36	MP980608 Available to backorder	• Stiffener-Rear Brace	£13.32 £11.10
37	MP503226 Available to backorder	• Rivet-Pop 4 Dia x 8	£0.35 £0.29

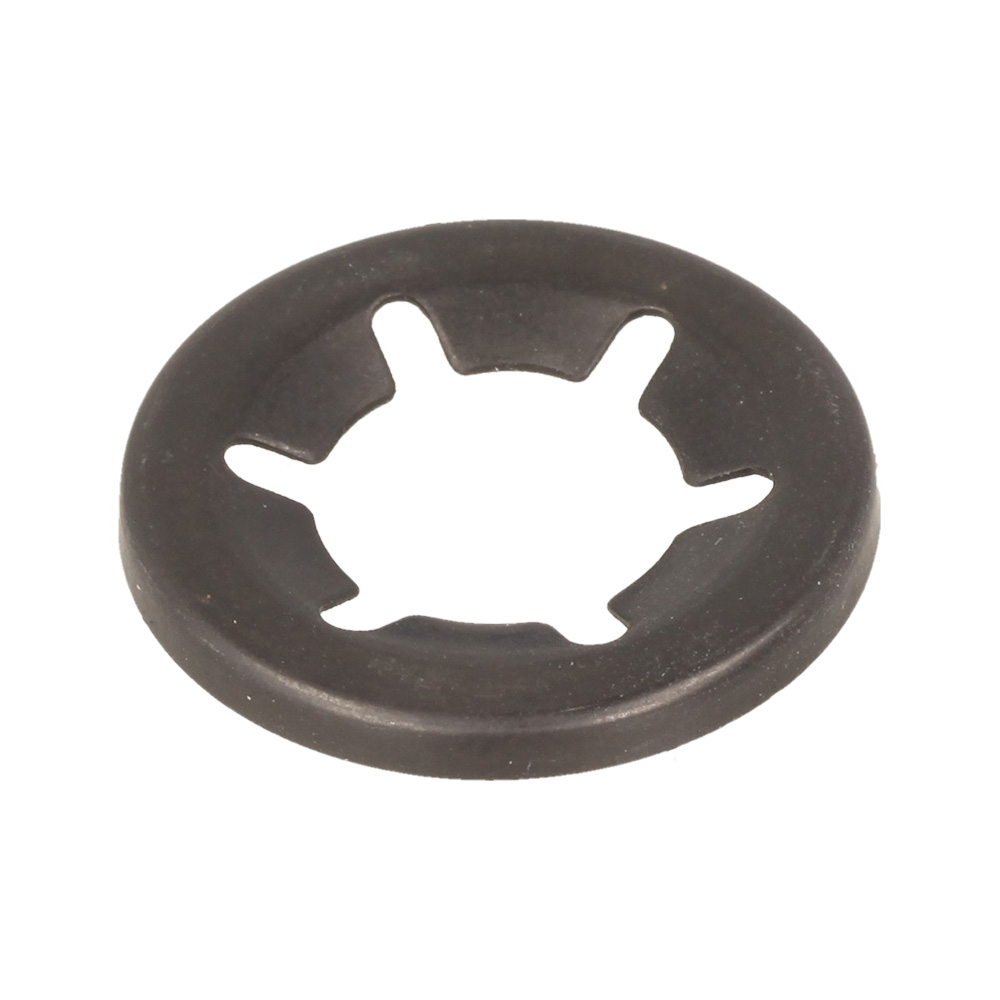

39	MP503236 Available to backorder	Clip-Starlock 1.2"	£2.10 £1.75
40	MP579105 Available to backorder	Wheel Assy-200mm PB	£21.36 £17.80

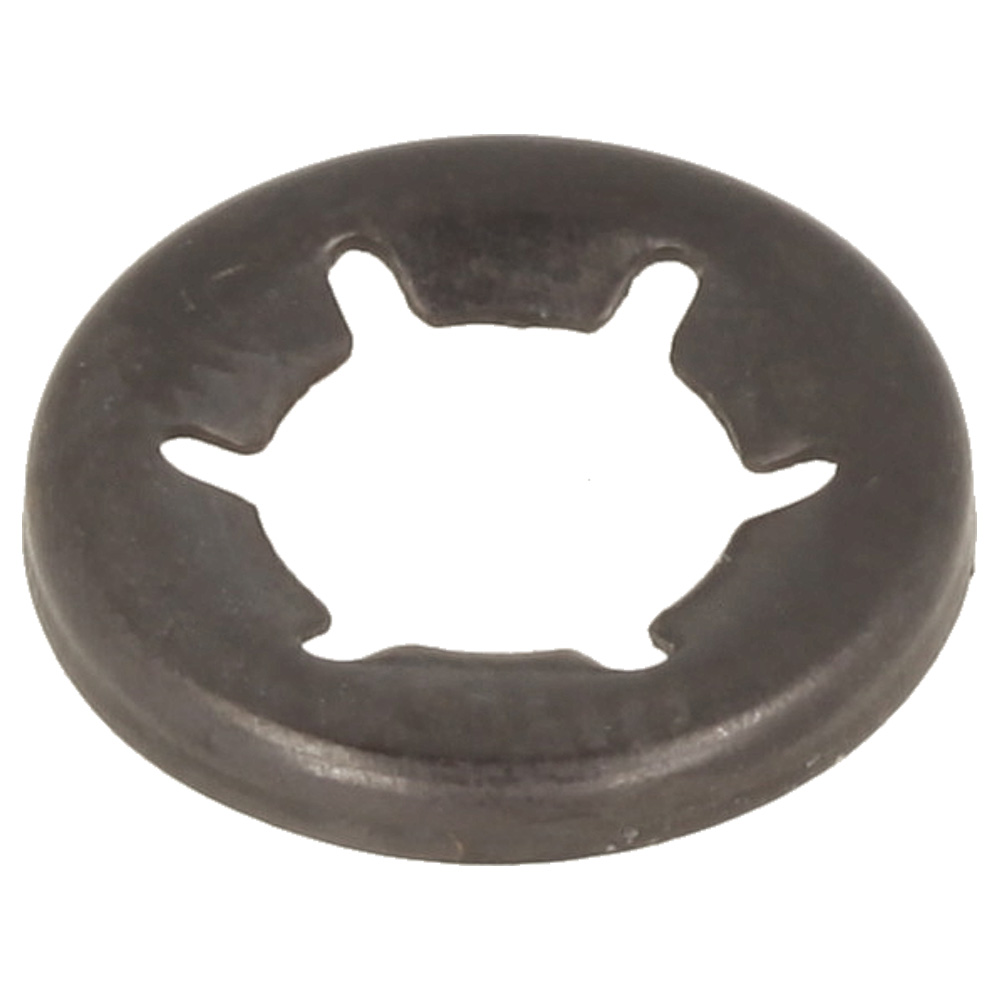

41	MP501365 Available to backorder	Clip-Starlock 5.16"	£0.46 £0.38
42	MP980404 Available to backorder	Rod Assy-Connecting 150mm	£16.68 £13.90
43	MP581591 Available to backorder	Wheel Assy-150mm Mk 2 PB	£11.32 £9.43
44	MP580225 Available to backorder	Retainer-Axle Rear	£0.72 £0.60
45	MP980564 Available to backorder	Plate-Retainer Axle Front	£0.86 £0.72
46	MP501599 Available to backorder	Screw S.T 1.4" x 5.8"	£1.58 £1.32
47	MP983246 Available to backorder	Axle Assy-Front 150mm	£32.02 £26.68
48	MP503150 Available to backorder	Clip-Starlock 5 Dia	£0.52 £0.43
49	MP581240 Available to backorder	Nameplate	£7.08 £5.90
50	MP580453 Available to backorder	Screw S.T UNC 3.8" x 1 1.8"	£2.32 £1.93
51	MP783175 Available to backorder	Housing - Silver	£222.36 £185.30

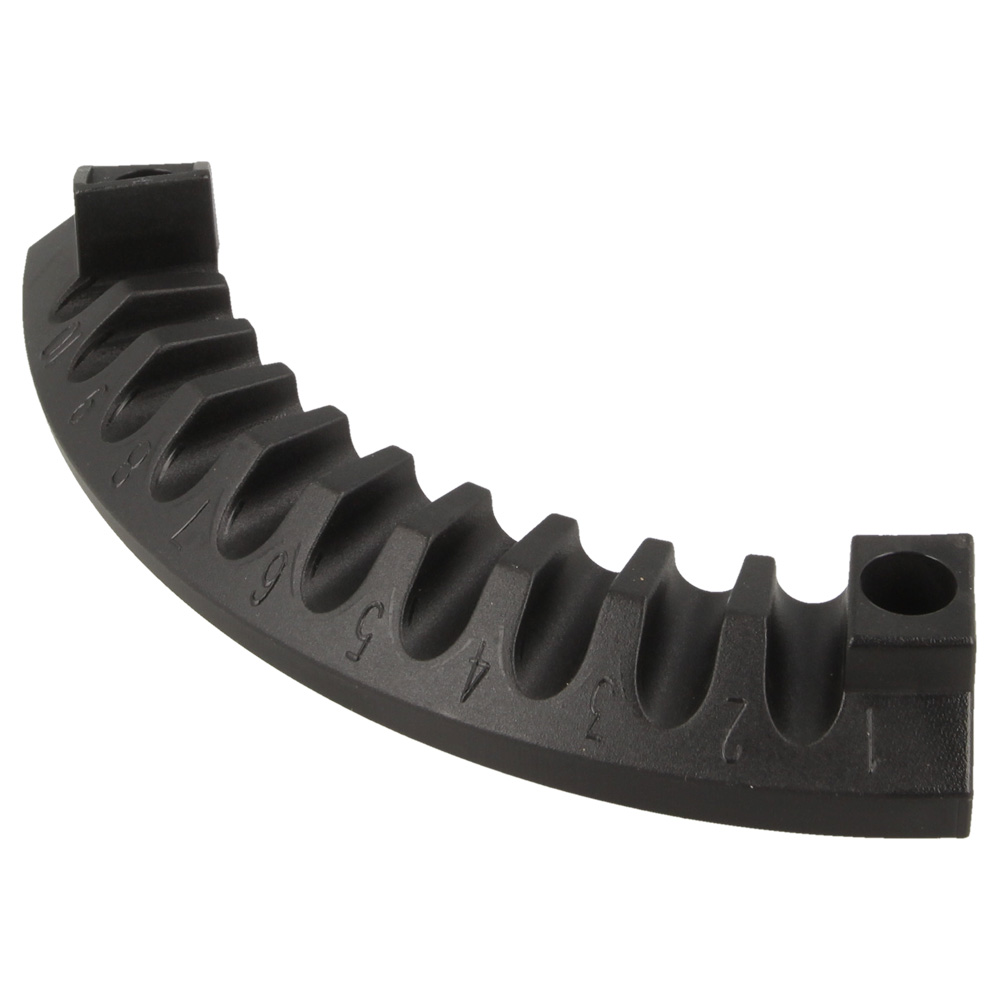

53	MP580025 Available to backorder	Quadrant-Height Selector	£6.42 £5.35
