Masport Maxicatch - 983962 - Sept 2002 1348161 - Main Assembly

Description

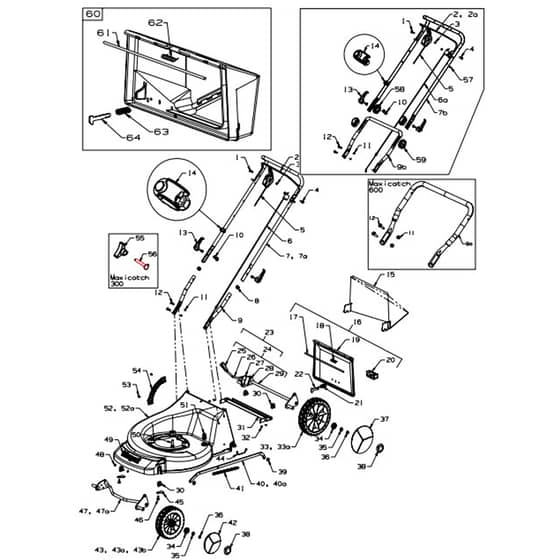

Masport Maxicatch Petrol Push Rotary Mower - Main Assembly Parts Diagram

Part Number: 983962

Model: Maxicatch 400

Engine Model: Quattro 40

Model Range: Sept 2002

Serial Number: 1348161

	Part No.	Details
1	MP503604 Available to backorder	Screw Pan M6 x 45	£0.83 £0.69
2	MP981740 Available to backorder	Handle-Bail	£20.51 £17.09
3	MP501764 Available to backorder	Nut Nyloc M6	£0.31 £0.26
5	MP503460 Available to backorder	Plug-Nylon 6.3mm Dia	£0.48 £0.40
6	MP583458 In stock	Control-Throttle -Ve N.Ch	£19.93 £16.61
7	MP581656 In stock	Cable-Engine - Maxicatch 400 500	£18.80 £15.67
8	MP781664 Available to backorder	(8a) Handle-Upper Upturned - Adjustab	£45.20 £37.67
8	MP781265 Available to backorder	Handle-Upper Upturned	£29.20 £24.33
9	MP503319 Available to backorder	Plug-22mm - Maxicatch 400	£0.72 £0.60
10	MP981257 Available to backorder	(10a) Handle-Lower "U" - Maxicatch 600	£4.49 £3.74
10	MP980692 Available to backorder	Handle-Lower "Stub" - Bla	£9.31 £7.76
10	MP981712 Available to backorder	(10b) Handle-Lower "U" - Adjustab	£25.08 £20.90
11	MP581527 Available to backorder	Retainer-Control Cable Handle	£0.72 £0.60
12	MP501793 Available to backorder	Nut Nyloc M8	£1.92 £1.60
13	MP501597 Available to backorder	Screw Screw M8 x 20	£0.41 £0.34
14	MP980456 In stock	Cam Lock Assy	£11.56 £9.63
16	MP503369 Available to backorder	• Pin Tension 3.16" x 7.8"	£0.48 £0.40
17	MP016777 Available to backorder	• Washer-Slipper	£0.72 £0.60
18	MP580690 Available to backorder	• Stud-Handle Lock	£2.32 £1.93
19	MP503794 Available to backorder	Screw-Set HEX M6 x	£0.31 £0.26
20	MP782546 Available to backorder	Guide-Rope - Comfort Start	£16.08 £13.40
21	MP783470 Available to backorder	Chute Assy-Grass (Optional)	£159.12 £132.60
22	MP782200 Available to backorder	Flap Assy-Rear Plast	£45.66 £38.05
24	MP580602 Available to backorder	• Handle-Flap	£2.44 £2.03
25	MP581106 Available to backorder	• Spring-Latch Flap	£1.09 £0.91
26	MP981650 Available to backorder	• Latch-Flap Barbed	£10.32 £8.60
27	MP581528 Available to backorder	Spring-Flap	£2.28 £1.90
28	MP581743 Available to backorder	Wire-6mm x 352mm Flap Pivot	£2.86 £2.38
31	MP580056 Available to backorder	• Grip-7.9 Dia	£1.09 £0.91
32	MP980733 Available to backorder	• Rod-Height Selector	£4.43 £3.69
33	MP580649 Available to backorder	• Spring-Leaf	£5.44 £4.53
34	MP503373 Available to backorder	• Rivet 3.16" x 27.64"	£0.94 £0.78
35	MP580020 Available to backorder	• Axle Assy-Rear	£24.49 £20.41
36	MP580030 In stock	Bush-Pivot Axle	£0.76 £0.63
37	MP983267 Available to backorder	• Brace-Rear Adaptor	£29.71 £24.76
39	MP980608 Available to backorder	• Stiffener-Rear Brace	£12.80 £10.67
40	MP503226 Available to backorder	• Rivet-Pop 4 Dia x 8	£0.48 £0.40
41	MP580799 Available to backorder	Hub Cap-200mm Mk6 - Red	£2.94 £2.45
42	MP503236 Available to backorder	Clip-Starlock 1.2"	£2.03 £1.69
43	MP551212 Available to backorder	Bearing-Wheel	£5.75 £4.79
44	MP580791 Available to backorder	Wheel Assy-200mm Mk 6 BB	£34.57 £28.81
45	MP501365 Available to backorder	Clip-Starlock 5.16"	£0.48 £0.40
46	MP581270 Available to backorder	(46a) Rod Assy-Connecting 175	£16.55 £13.79
47	MP581463 Available to backorder	Spring-Counter Balance	£7.09 £5.91
48	MP580798 Available to backorder	Hub Cap-150mm Mk6 - Red	£2.26 £1.88

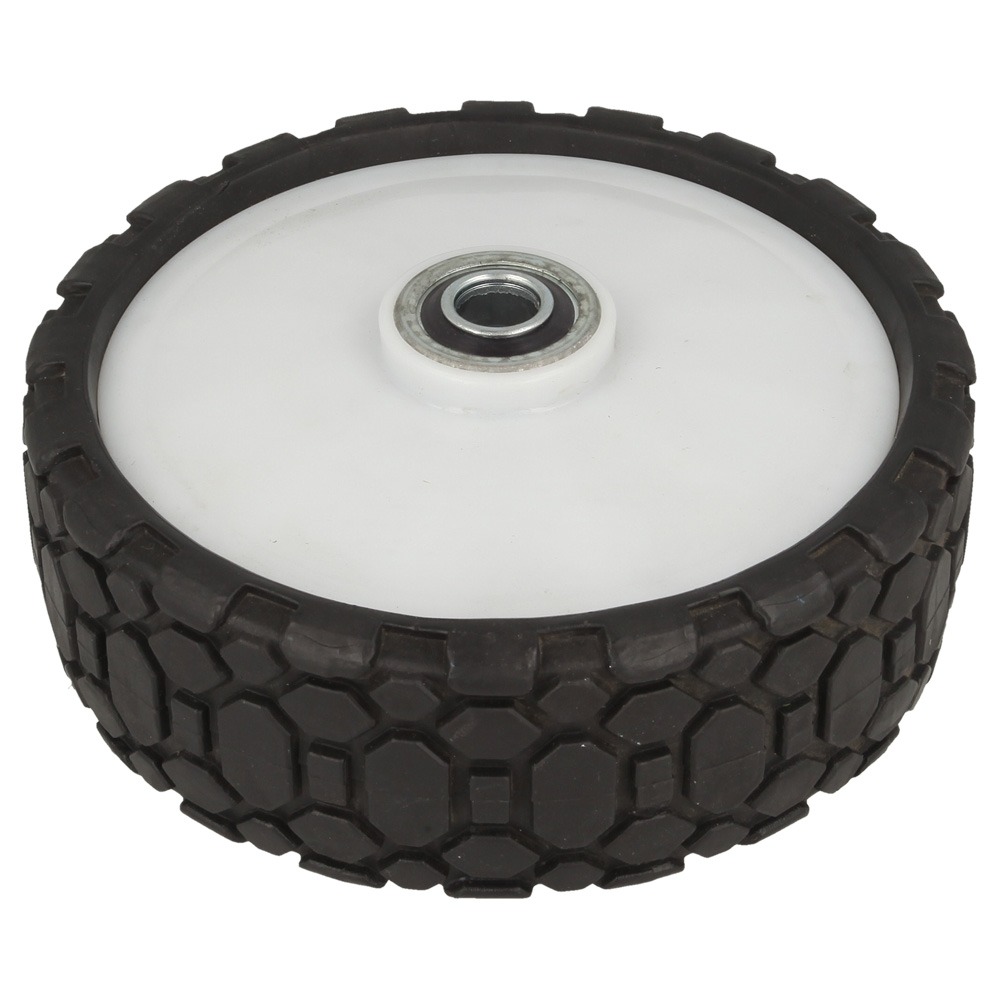

49	MP580787 Available to backorder	Wheel Assy-150mm Mk 6	£22.34 £18.62
49	MP580790 Available to backorder	(49b) Wheel Assy-175mm Mk 6	£29.75 £24.79
50	MP580225 Available to backorder	Retainer-Axle Rear	£0.72 £0.60
51	MP980564 Available to backorder	Plate-Retainer Axle Front	£0.83 £0.69
52	MP501599 Available to backorder	Screw S.T 1.4" x 5.8"	£1.51 £1.26
53	MP983247 Available to backorder	Axle Assy-Front 175	£32.69 £27.24
53	MP983246 Available to backorder	Axle Assy-Front 150	£32.15 £26.79
54	MP503150 Available to backorder	Clip-Starlock 5 Dia	£0.48 £0.40
55	MP581240 In stock	Nameplate	£7.14 £5.95
56	MP580453 Available to backorder	Screw S.T UNC 3.8" x 1 1.8"	£2.23 £1.86
57	MP503783 Available to backorder	Cyclowash Fitti	£4.46 £3.72
58	MP783175 Available to backorder	Housing - Silv	£239.64 £199.70
60	MP580025 Available to backorder	Quadrant-Height Selector	£6.64 £5.53
61	MP581660 Available to backorder	Disc-Locking Out	£5.86 £4.88
62	MP581659 Available to backorder	Disc-Locking Inn	£6.17 £5.14
63	MP981649 Available to backorder	Smartchute-Plastic - Bla	£57.14 £47.62
64	MP581647 Available to backorder	• Handle-Flap	£13.49 £11.24
66	MP581646 Available to backorder	• Flap-Door	£14.20 £11.83
