Masport Maxicatch - 983949 - Main Assembly

Name: Masport Maxicatch - 983949 - Main Assembly
SKU: maxicatch983949main-group
Price: 0.25 GBP
Availability: InStock

Skip to the end of the images gallery

Skip to the beginning of the images gallery

Masport Maxicatch - 983949 - Main Assembly

Description

Masport Maxicatch Petrol Power Drive - Main Assembly Parts Diagram

Part Number: 983949

Model: Maxicatch 575 SP

Engine Model: Quantum XTE 50

Model Range: -

Serial Number: -

Be the first to review this product

0 product questions

	Part No.	Details
1	MP781664 Available to backorder	Handle-Upper Upturned (Adjustable)	£63.74 £53.12
2	MP503604 Available to backorder	Screw Pan M6 x 45	£0.86 £0.72
3	MP982161 Available to backorder	Bail Arm Assy	£27.36 £22.80
4	MP981740 Available to backorder	Handle Assy-Bail	£21.30 £17.75
5	MP503460 Available to backorder	Plug-Plastic 6mm	£0.68 £0.57
7	MP501764 Available to backorder	Nut Nyloc M6	£0.35 £0.29
8	MP765435 In stock	Cable-Clutch Thumbwheel	£28.18 £23.48
10	MP583458 In stock	Control-Throttle -Ve.Nch	£21.46 £17.88
11	MP581656 Available to backorder	Cable-Engine	£17.54 £14.62
12	MP581527 Available to backorder	Retainer-Clutch Cable Handle	£0.72 £0.60
13	MP581659 Available to backorder	Disc-Locking Inner	£6.42 £5.35
14	MP981712 Available to backorder	Handle-Lower "U" (Adjustable)	£21.70 £18.08
15	MP501793 Available to backorder	Nut Nyloc M8	£1.86 £1.55
16	MP501597 Available to backorder	Screw Set M8 x 20	£0.44 £0.37
18	MP581660 Available to backorder	Disc-Locking Outer	£6.08 £5.07
19	MP980456 Available to backorder	Cam Lock Assy	£10.78 £8.98
21	MP503369 Available to backorder	• Pin Tension 3.16" x 7.8"	£0.48 £0.40
22	MP016777 Available to backorder	• Washer-Slipper	£0.68 £0.57
23	MP580690 Available to backorder	• Stud-Handle Lock	£2.44 £2.03
24	MP503794 Available to backorder	Screw Set M6 x 40 - Comfort Start	£0.35 £0.29
25	MP782546 Available to backorder	Guide-Rope - Comfort Start	£16.68 £13.90
26	MP981103 Available to backorder	Chute Assy-Grass (optional)	£119.54 £99.62
27	MP782200 Available to backorder	Flap Assy-Rear - Black	£45.50 £37.92
29	MP580602 Available to backorder	• Handle-Flap	£2.82 £2.35
30	MP581106 Available to backorder	• Spring-Flap Latch	£1.14 £0.95
31	MP981650 Available to backorder	• Latch-Flap Barbed	£10.70 £8.92
32	MP581528 Available to backorder	• Spring-Flap	£2.20 £1.83
33	MP581743 Available to backorder	• Wire-6mm x 352mm Flap Pivot	£2.98 £2.48
34	MP583192 Available to backorder	•Brace-Rear	£65.74 £54.78
35	MP503200 Available to backorder	• Rivet-Pop 4.8 Dia x 12.7	£0.30 £0.25
36	MP983212 Available to backorder	Cover Assy-Gearbox	£39.00 £32.50
37	MP501959 Available to backorder	Screw Set M6 x 12	£0.38 £0.32
38	MP501365 Available to backorder	Clip-Starlock 5.16"	£0.46 £0.38
39	MP580621 Available to backorder	Spring-Counter Balance	£5.14 £4.28
40	MP981170 Available to backorder	Rod Assy-Connecting	£28.34 £23.62
41	MP580798 Available to backorder	Hub Cap-150mm Dia - Red	£2.66 £2.22
42	MP503236 Available to backorder	Clip-Starlock 1.2"	£2.10 £1.75
43	MP551212 Available to backorder	Bearing-Wheel	£5.56 £4.63
44	MP580790 Available to backorder	Wheel Assy-175mm Mk 6	£30.90 £25.75
46	MP981178 Available to backorder	Retainer-Axle Rear	£7.32 £6.10
47	MP501602 Available to backorder	Nut M8 Hex	£0.35 £0.29
48	MP503747 Available to backorder	Washer Spring 8mm	£0.48 £0.40
49	MP501843 Available to backorder	Screw Set M8 x 40	£0.86 £0.72
50	MP983247 Available to backorder	Axle Assy-Front 175mm	£33.96 £28.30
51	MP501599 Available to backorder	Screw S.T 1.4" x 5.8"	£1.58 £1.32
52	MP980564 Available to backorder	Plate-Retainer Axle Front	£0.86 £0.72
53	MP580030 In stock	Bush-Pivot Front Axle	£0.70 £0.58
54	MP503150 Available to backorder	Clip-Starlock 5 Dia	£0.52 £0.43
55	MP581240 Available to backorder	Nameplate	£7.08 £5.90
56	MP580453 Available to backorder	Screw S.T 3.8" x 1 1.8"	£2.32 £1.93
57	MP503386 Available to backorder	Screw Grub M8 x 8	£0.44 £0.37
58	MP503363 Available to backorder	Key-Woodruff - 5.8" x 3.16" x 1.4"	£0.44 £0.37
59	MP782373 Available to backorder	Pulley-Engine - 25mm	£38.58 £32.15
60	MP503526 Available to backorder	Nut-Dome M8	£0.72 £0.60
61	MP572199 Available to backorder	Washer Flat 8 x 32 x 2	£1.36 £1.13
62	MP983213 Available to backorder	Cover Assy-Belt - Silver	£36.36 £30.30
63	MP779480 Available to backorder	Housing - Silver	£301.08 £250.90
64	MP580025 Available to backorder	Quadrant-Height Selector	£6.42 £5.35

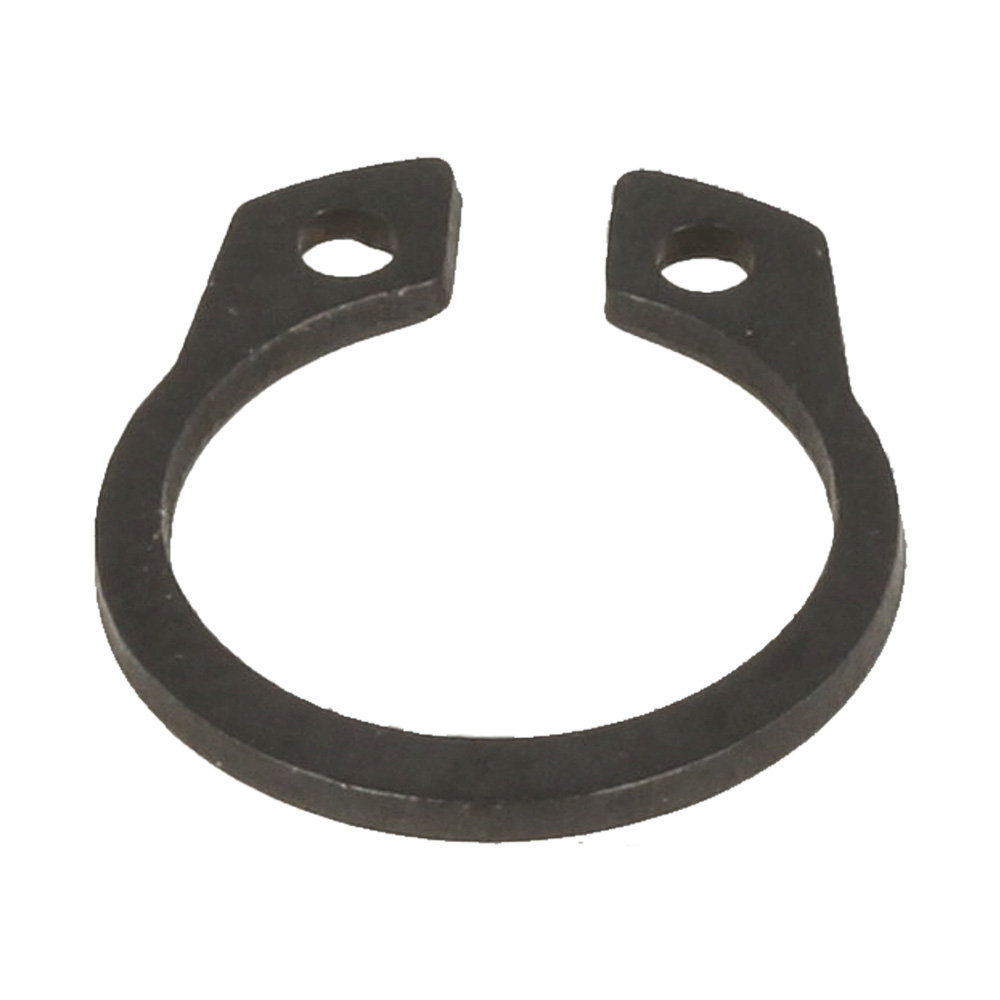

66	MP503759 In stock	Circlip 12mm Ext	£0.48 £0.40

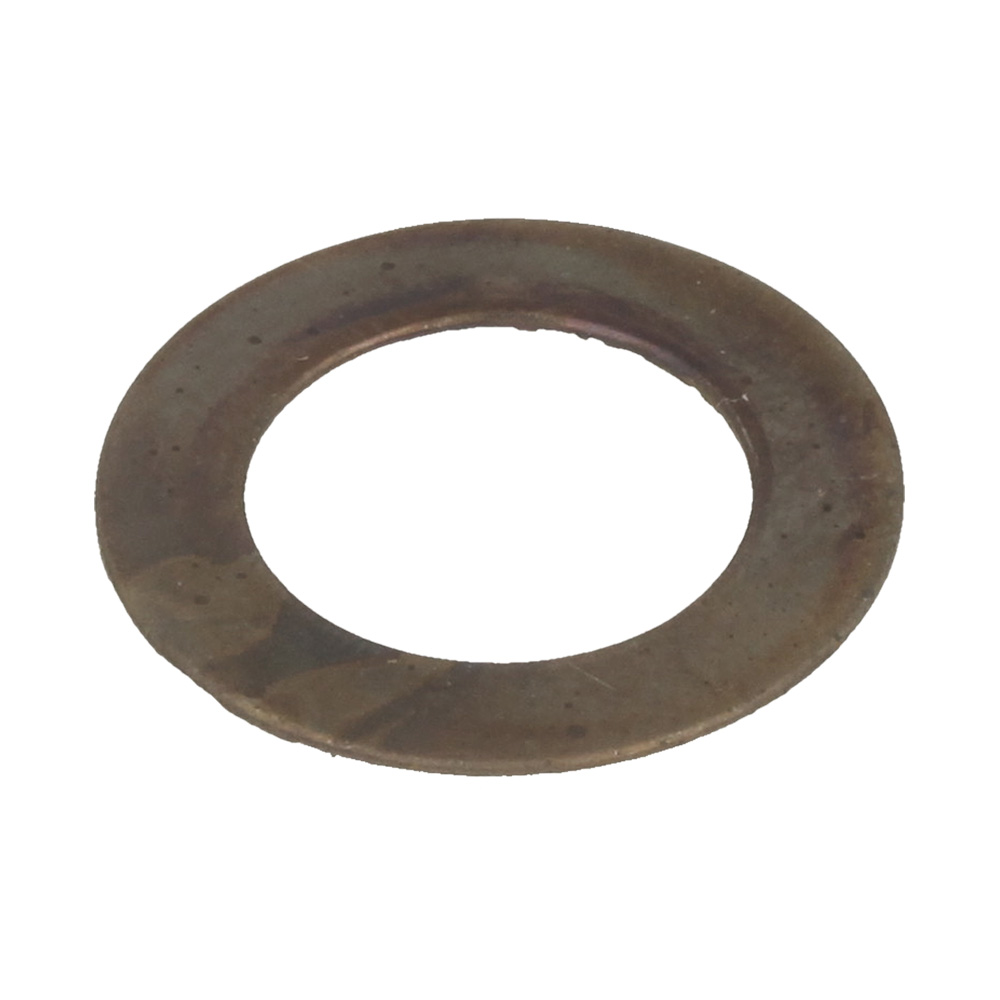

67	MP503102 Available to backorder	Washer Flat 12 x 20 x .4	£0.84 £0.70
68	MP581091 Available to backorder	Pinion-RH	£47.46 £39.55
69	MP581090 Available to backorder	Pinion-LH	£47.46 £39.55

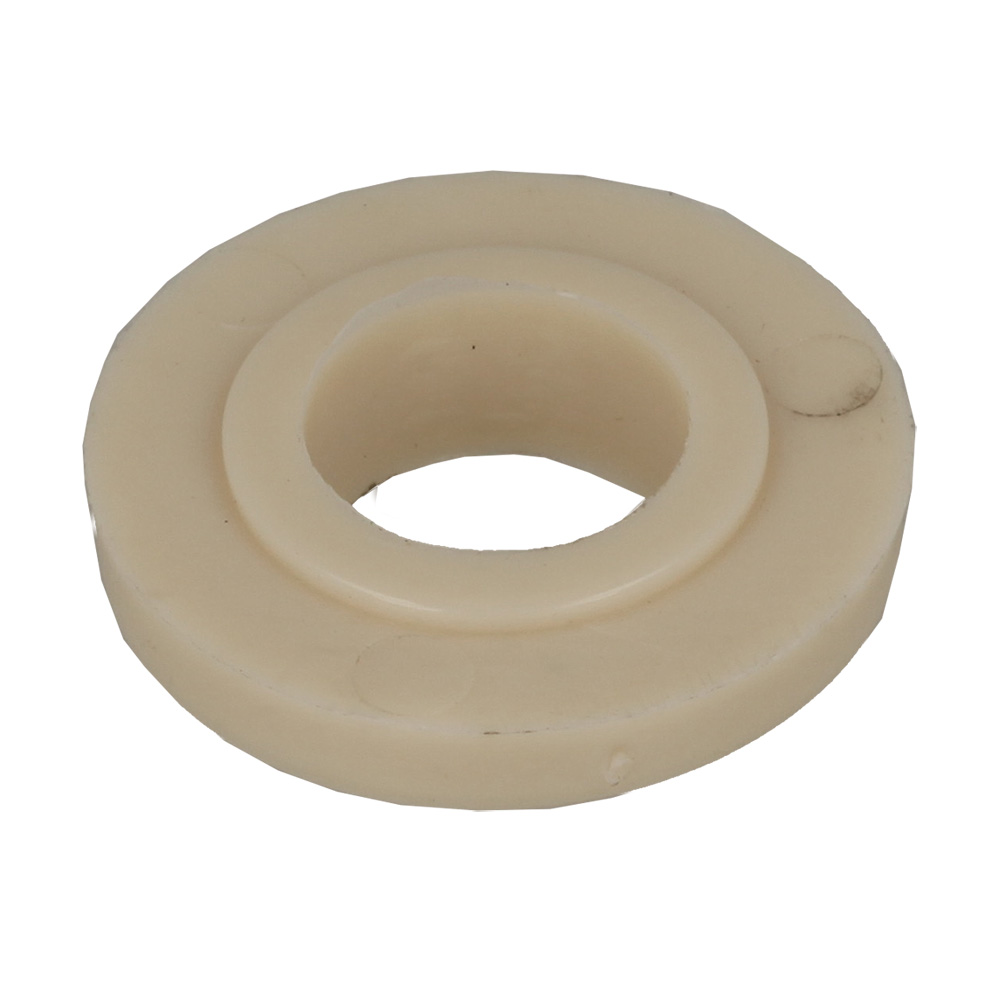

70	MP581093 Available to backorder	Cap-Pinion - Plastic	£11.04 £9.20
71	MP501213 Available to backorder	Bearing Ball 12 x 32 x 10	£16.70 £13.92
72	MP581626L Available to backorder	Belt-V Pix 'X' tra 800	£24.28 £20.23

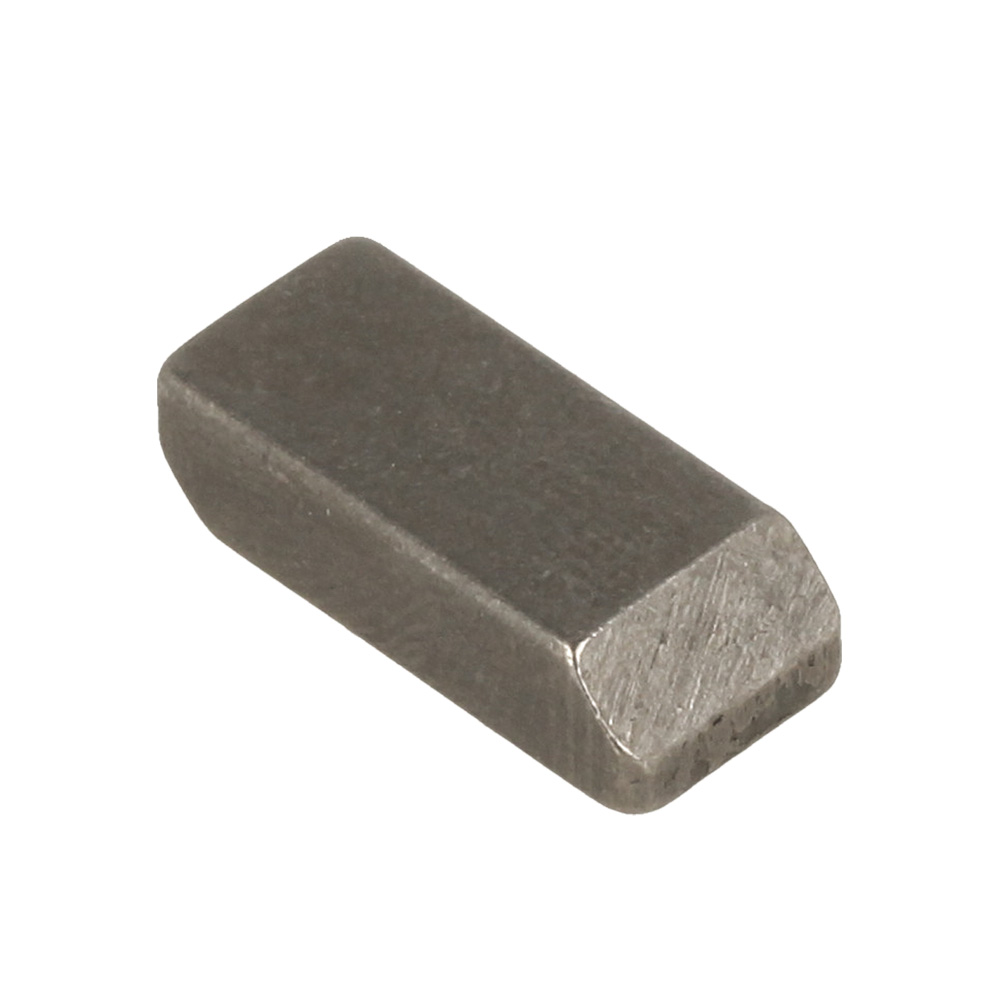

73	MP581092 Available to backorder	Pawl-Pinion	£2.98 £2.48
74	MP782170 Available to backorder	Gearbox-Single Speed	£143.26 £119.38
75	MP982169 Available to backorder	Mount-Gearbox	£20.96 £17.47
76	MP580799 Available to backorder	Hub Cap-200mm Dia - Red	£3.06 £2.55
77	MP501606 Available to backorder	Washer-Flat 8 x 19 x 1.6	£0.36 £0.30
78	MP501682 Available to backorder	Nut M6 HEX	£2.60 £2.17
79	MP501703 Available to backorder	Washer Flat 6 x 14 x 1.2	£0.48 £0.40
80	MP579070 Available to backorder	Wheel Assy-220mm Mk 6	£44.50 £37.08
81	MP580046 Available to backorder	Seal-Wheel	£11.82 £9.85
82	MP580038 Available to backorder	Gear-Driving	£103.14 £85.95
83	MP580179 Available to backorder	Screw Set M6 x 40	£1.12 £0.93
84	MP580067 Available to backorder	Cover-Dust LH	£24.08 £20.07
85	MP580614 Available to backorder	Sleeve-Rear Axle	£6.78 £5.65
86	MP773419 Available to backorder	Axle Assy-Rear Drive	£153.00 £127.50
87	MP980229 Available to backorder	Lever Assy-Height (Incl. iitems 88-91)	£13.82 £11.52
88	MP503373 Available to backorder	• Rivet 3.16" x 27.64"	£0.96 £0.80
89	MP580649 Available to backorder	• Spring-Leaf	£5.62 £4.68
90	MP980733 Available to backorder	• Rod-Height Selector	£4.28 £3.57
91	MP580056 Available to backorder	• Grip-7.9 Dia	£1.14 £0.95
92	MP580066 Available to backorder	Cover-Dust RH	£25.74 £21.45

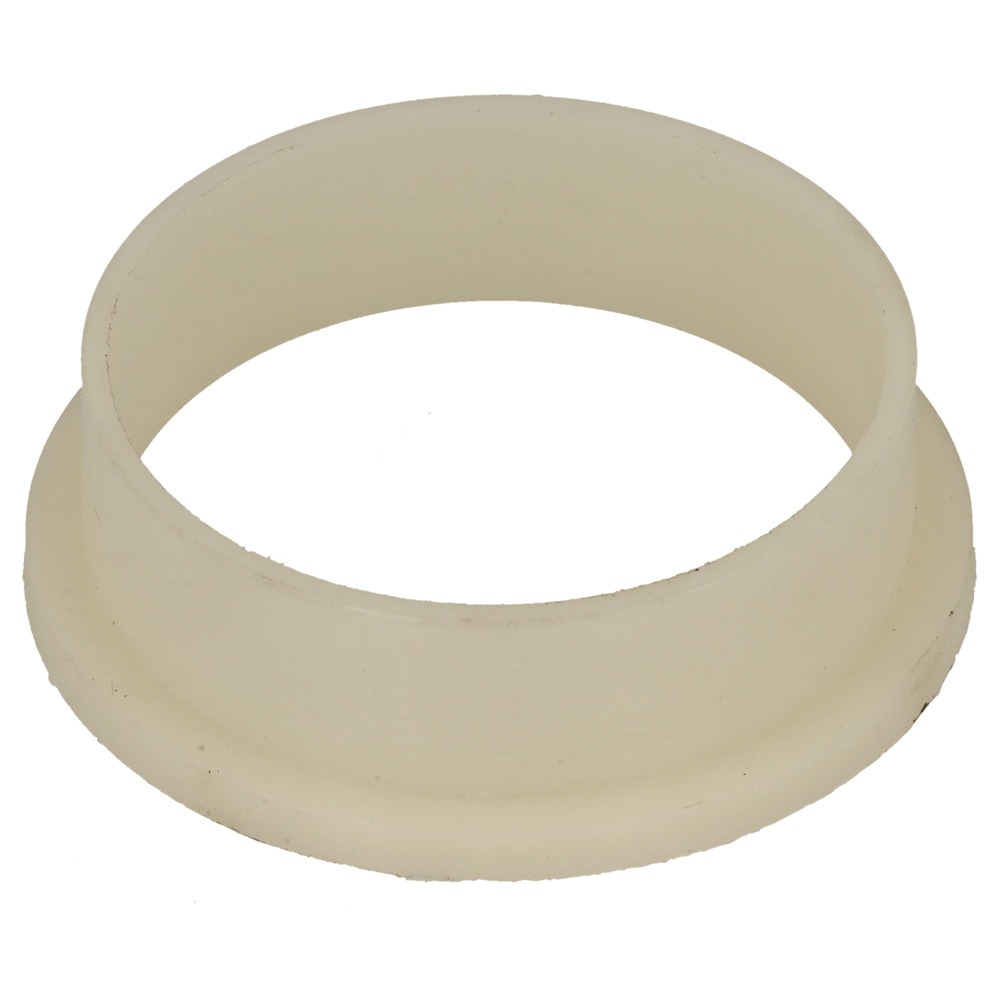

93	MP580091 Available to backorder	Bush-Pivot Rear Axle	£1.42 £1.18
