Masport Maxicatch - 983949 - 460mm Quick Cut Blade Assembly

Name: Masport Maxicatch - 983949 - 460mm Quick Cut Blade Assembly
SKU: maxicatch983949460mmquickcutblade-group
Price: 0.26 GBP
Availability: InStock

Part No. maxicatch983949460mmquickcutblade-group

Skip to the end of the images gallery

Skip to the beginning of the images gallery

Masport Maxicatch - 983949 - 460mm Quick Cut Blade Assembly

Description

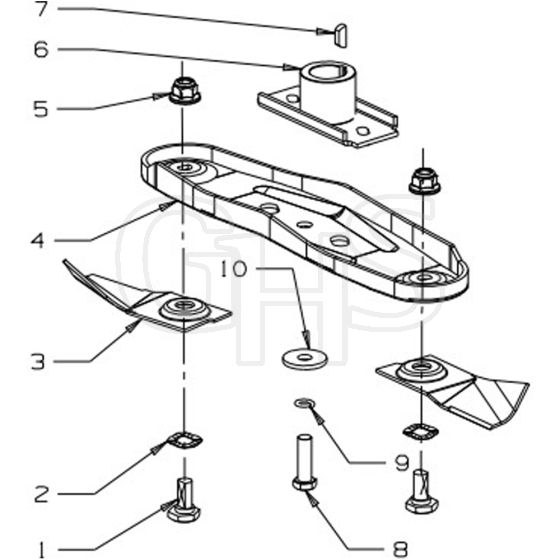

Masport Maxicatch Petrol Power Drive - 460mm Quick Cut Blade Assembly Parts Diagram

Part Number: 983949

Model: Maxicatch 575 SP

Engine Model: Quantum XTE 50

Model Range: -

Serial Number: -

	Part No.	Details
-1	MP783690 Available to backorder	Bolt Pack	£13.39 £11.16
1	MP581707 In stock	Bolt-Blade	£2.41 £2.01
2	MP580693 In stock	Washer Wavy	£0.37 £0.31
4	MP980653 Available to backorder	Carrier-Blade	£31.19 £25.99
5	MP503672 In stock	Nut Flange Nyloc M	£0.36 £0.30
6	MP031640 Available to backorder	Driver Assy Blade - 25mm Shaft	£21.84 £18.20
7	MP503363 Available to backorder	Key Woodru	£0.41 £0.34
8	MP581610 In stock	Screw Set NF 3.8" x 1.25	£2.11 £1.76
9	MP500204 Available to backorder	Washer Spring 3.8"	£0.31 £0.26
10	MP503667 Available to backorder	Washer Flat 9.75 x 30 x 3	£1.14 £0.95
