Masport Home Gardener - 550905 - Jan 2010 7286455 - Main Assembly

Description

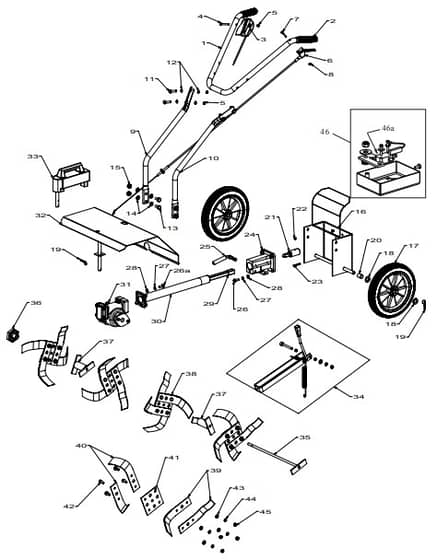

Masport Home Gardener Petrol Tiller - Main Assembly Parts Diagram

Part Number: 550905

Model: MK II 4 WAY

Engine Model: B & S Series 550 HRZ

Model Range: Jan 2010

Serial Number: 7286455

Be the first to review this product

0 product questions

	Part No.	Details
2	MP550368 Available to backorder	Handle Grip Plastic	£5.32 £4.43
3	MP583458 In stock	Control- ThrottleAssy Wescon	£21.46 £17.88
4	MP503604 Available to backorder	Screw Pan M6x45	£0.86 £0.72
5	MP501764 Available to backorder	Nut M6 Nylocx 6 Thck	£0.35 £0.29
6	MP555796 Available to backorder	Lever & Cable Assy- Safety	£71.72 £59.77
10	MP950144 Available to backorder	Handle- Lower LH Silver HG	£19.54 £16.28
11	MP501815 Available to backorder	Screw Set M6x35	£0.36 £0.30
12	MP501703 Available to backorder	Washer Flt 6x14x1.2	£0.48 £0.40
14	MP501704 Available to backorder	Washer Flt 10x19x1.6	£0.44 £0.37
15	MP503672 In stock	Nut M10 Nyloc 10 Thck	£0.32 £0.27
17	MP550010 Available to backorder	Wheel & Tyre Assy HG	£39.60 £33.00
19	MP530281 Available to backorder	Clip- Hairpin Large HG	£6.98 £5.82
21	MP550164 Available to backorder	Coupling- Engine HG	£26.94 £22.45
22	MP503386 Available to backorder	Screw Grub M8x8	£0.44 £0.37
23	MP536012 Available to backorder	Key- Engine 3.16"SQ x 38	£2.86 £2.38
24	MP950376 Available to backorder	Housing Drive Cast HG	£80.30 £66.92
25	MP550018 Available to backorder	Locking Clamp- Bolt	£22.46 £18.72
26	MP501597 Available to backorder	(26a) Screw Set M8x20	£0.44 £0.37
27	MP503747 Available to backorder	Washer Spg 8	£0.48 £0.40
28	MP501744 Available to backorder	Washer Flt 8x17x1.6	£0.48 £0.40
30	MP550312 Available to backorder	Outer Tube Assy- Drive	£43.06 £35.88
31	MP950334 Available to backorder	Gear Head Assembly (Basic)	£213.60 £178.00
31	MP550333 Available to backorder	Gear Head Assy (+Drivers incl)	£268.86 £224.05
31	MP500012 Available to backorder	Key- Woodruff 3.16"x3.4"	£2.54 £2.12
31	MP550016 Available to backorder	Nut-Hand T Bolt	£28.84 £24.03
31	MP550006 Available to backorder	Driver-Gearbox	£32.30 £26.92
32	MP555790 Available to backorder	Tine Shield Assy	£101.74 £84.78
33	MP550106 Available to backorder	Weight- Stabiliser Cast	£75.92 £63.27
34	MP550319 Available to backorder	Spring- Stand	£2.92 £2.43
34	MP550327 Available to backorder	Stand Assy- Support HG incl	£29.50 £24.58
34	MP580056 Available to backorder	Grip-Height Lever	£1.14 £0.95

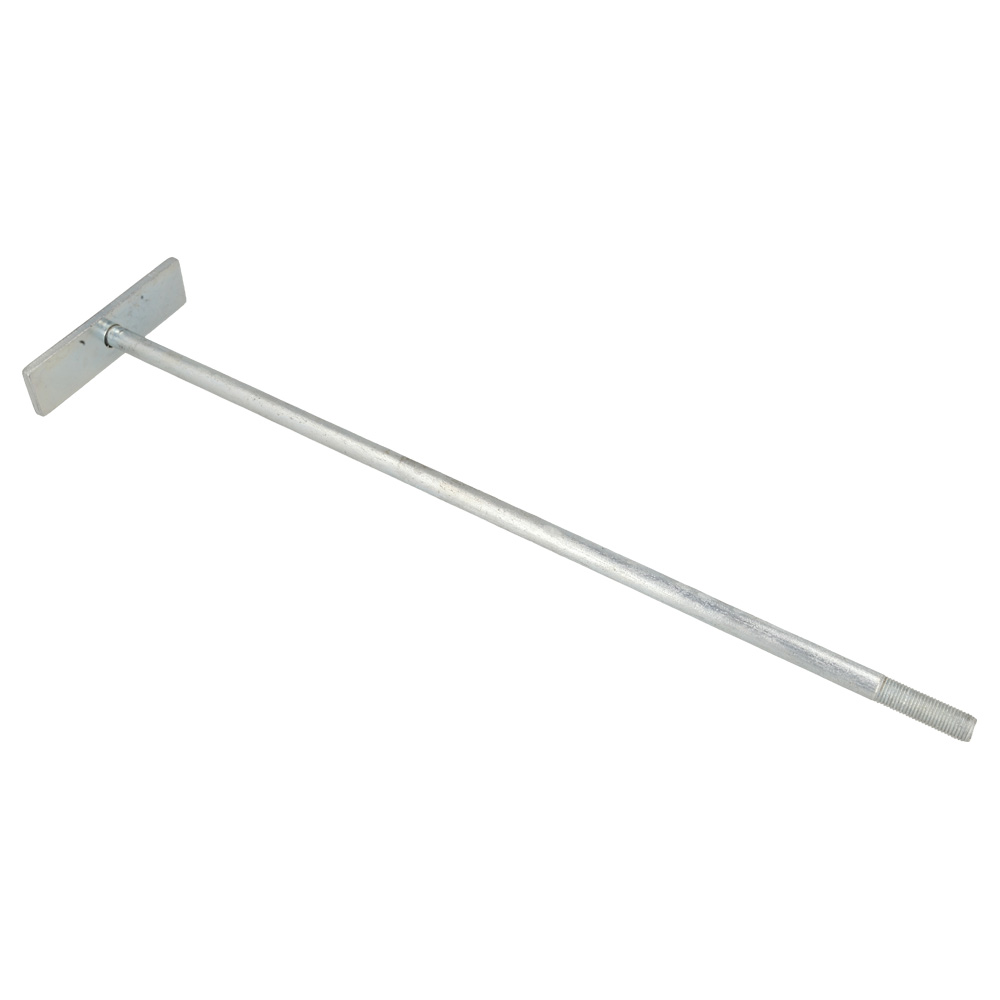

35	MP550013 Available to backorder	T Bolt 14-1.2" (370mm)	£28.68 £23.90
38	MP550062 Available to backorder	Tine Assy	£41.90 £34.92
39	MP550040 Available to backorder	Tine- Curved RH HG	£15.18 £12.65
40	MP550041 Available to backorder	Tine- Curved LH HG	£15.18 £12.65
45	MP501602 Available to backorder	Nut M8 Hex	£0.35 £0.29
