Description

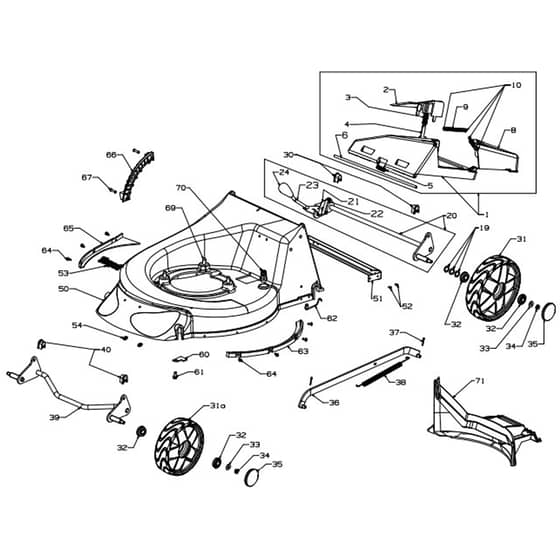

Masport Genius Petrol Push Rotary Mower - Deck Parts Diagram

Part Number: 567958

Model: S18 GENIUS 4n1

Engine Model: B&S W14 Series 825

Model Range: Sept 2012

Serial Number: > 7664560

Ref. Img. Part No. Details
  2 Handle-Flap Side Discharge
Handle-Flap Side Discharge
MP581647 Out of stock
Handle-Flap Side Discharge
£14.02 £11.68

  3 Spring- Flap Latch
Spring- Flap Latch
MP581106 Out of stock
Spring- Flap Latch
£1.14 £0.95

  4 Latch- Flap Barbed
Latch- Flap Barbed
MP981650 Out of stock
Latch- Flap Barbed
£10.70 £8.92

  5 Spring-Flap ALI
Spring-Flap ALI
MP581528 Out of stock
Spring-Flap ALI
£2.20 £1.83

  6 Wire-Flap Pivot 6mm x 352mm
Wire-Flap Pivot 6mm x 352mm
MP581743 Out of stock
Wire-Flap Pivot 6mm x 352mm
£2.98 £2.48

  8 Flap-Door Side Red
Flap-Door Side Red
MP571095 Out of stock
Flap-Door Side Red
£19.08 £15.90

  9 Spring-Flap Side Discharge
Spring-Flap Side Discharge
MP581648 Out of stock
Spring-Flap Side Discharge
£2.32 £1.93

  10 Pin Tension 6.0 x 35
Pin Tension 6.0 x 35
MP581676 Out of stock
Pin Tension 6.0 x 35
£1.36 £1.13

  19 Washer Flat 1.2 x 3.4 x 18G
Washer Flat 1.2 x 3.4 x 18G
MP503301 Out of stock
Washer Flat 1.2 x 3.4 x 18G
£3.36 £2.80

  20 Axle Assy-Rear 18
Axle Assy-Rear 18
MP969398 Out of stock
Axle Assy-Rear 18"
£41.36 £34.47

  21 Spring- Leaf
Spring- Leaf
MP580649 Out of stock
Spring- Leaf
£5.62 £4.68

  22 Rivet- F.HD 3.16x27.64
Rivet- F.HD 3.16x27.64
MP503373 Out of stock
Rivet- F.HD 3.16x27.64"
£0.96 £0.80

  23 Rod- Height Selector
Rod- Height Selector
MP973681 Out of stock
Rod- Height Selector
£3.08 £2.57

  24 Knob-height Lever MSV
Knob-height Lever MSV
MP581729 Out of stock
Knob-height Lever MSV
£3.12 £2.60

  30 Bush-Pivot Axle
Bush-Pivot Axle
MP580030 In stock
Bush-Pivot Axle
Was £0.72 £0.60 Special Price £0.56 £0.47

  31 Wheel Assy-200mm BB Spkd Svr
Wheel Assy-200mm BB Spkd Svr
MP579197 Out of stock
Wheel Assy-200mm BB Spkd Svr
£35.92 £29.93

  31 (31a) Wheel Assy-175mm BB Spkd Svr
(31a) Wheel Assy-175mm BB Spkd Svr
MP579196 Out of stock
(31a) Wheel Assy-175mm BB Spkd Svr
£30.90 £25.75

  32 Bearing- Wheel
Bearing- Wheel
MP551212 Out of stock
Bearing- Wheel
£5.98 £4.98

  33 Washer Flat 8 x 19 x 1.6
Washer Flat 8 x 19 x 1.6
MP501606 Out of stock
Washer Flat 8 x 19 x 1.6
£0.41 £0.34

  34 Nut Nyloc M8
Nut Nyloc M8
MP503831 Out of stock
Nut Nyloc M8
£0.72 £0.60

  35 Hub Cap Button Spkd Svr
Hub Cap Button Spkd Svr
MP579198 Out of stock
Hub Cap Button Spkd Svr
£0.86 £0.72

  37 Pin Cotter 2.3 x 16
Pin Cotter 2.3 x 16
MP501056 Out of stock
Pin Cotter 2.3 x 16
£0.48 £0.40

  38 Spring-Counter Balance
Spring-Counter Balance
MP581463 Out of stock
Spring-Counter Balance
£7.38 £6.15

  39 Axle-Front 175 mm
Axle-Front 175 mm
MP983247 Out of stock
Axle-Front 175 mm
£33.96 £28.30

  51 Brace - Rear
Brace - Rear
MP980608 Out of stock
Brace - Rear
£13.32 £11.10

  53 Nameplate-
Nameplate-
MP567406 Out of stock
Nameplate- "MASPORT" MSV
£6.04 £5.03

  54 Clip-Starlock 5mm dia
Clip-Starlock 5mm dia
MP503150 Out of stock
Clip-Starlock 5mm dia
£0.54 £0.45

  60 Retainer-Axle Front
Retainer-Axle Front
MP980564 Out of stock
Retainer-Axle Front "Plate"
£0.86 £0.72

  61 Screw S.T 1.4x5.8 Hex
Screw S.T 1.4x5.8 Hex
MP501599 Out of stock
Screw S.T 1.4x5.8 Hex
£1.58 £1.32

  62 Retainer-Axle Rear Ali Deck
Retainer-Axle Rear Ali Deck
MP580225 Out of stock
Retainer-Axle Rear Ali Deck
£0.72 £0.60

  63 Deflector Air LH
Deflector Air LH
MP581524 Out of stock
Deflector Air LH
£8.64 £7.20

  64 Screw S.T 10x .4 Typ B
Screw S.T 10x .4 Typ B
MP503630 Out of stock
Screw S.T 10x .4 Typ B
£0.90 £0.75

  65 Deflector Air RH
Deflector Air RH
MP581525 Out of stock
Deflector Air RH
£8.58 £7.15

  66 Quadrant-Height Selector
Quadrant-Height Selector
MP580025 Out of stock
Quadrant-Height Selector
£6.42 £5.35

  69 Screw Set NF 3.8x1-1.8 UNC
Screw Set NF 3.8x1-1.8 UNC
MP580453 Out of stock
Screw Set NF 3.8x1-1.8 UNC
£2.32 £1.93

  70 Cyclowash- Fitting
Cyclowash- Fitting
MP503783 Out of stock
Cyclowash- Fitting
£4.62 £3.85

  71 Insert- Plug Mulching
Insert- Plug Mulching
MP583105 Out of stock
Insert- Plug Mulching
£15.82 £13.18


Description

Masport Genius Petrol Push Rotary Mower - Deck Parts Diagram

Part Number: 567958

Model: S18 GENIUS 4n1

Engine Model: B&S W14 Series 825

Model Range: Sept 2012

Serial Number: > 7664560
