Masport Genius - 567958 - Sept 2012 > 7664560 - 460mm MSV Disc Blade Assembly

Description

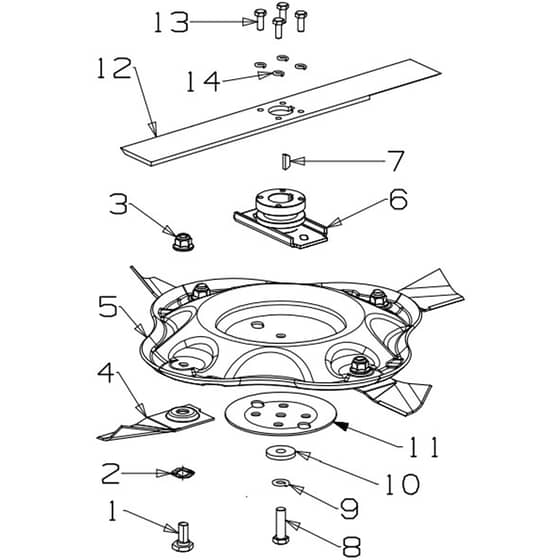

Masport Genius Petrol Push Rotary Mower - 460mm MSV Disc Blade Assembly Parts Diagram

Part Number: 567958

Model: S18 GENIUS 4n1

Engine Model: B&S W14 Series 825

Model Range: Sept 2012

Serial Number: > 7664560

	Part No.	Details
1	MP581707 In stock	Bolt Pivot M10x22	£2.41 £2.01
2	MP580693 In stock	Washer Wavy	£0.37 £0.31
3	MP503672 In stock	Nut M10 Hex Nyloc Flange	£0.36 £0.30
4	MP780658 Available to backorder	Blade Quick Cut 460mm	£17.70 £14.75
5	MP783314 Available to backorder	Disc Blade Contoured	£52.80 £44.00
6	MP581675 Available to backorder	Driver Assy- Chip 25mm M6	£28.68 £23.90
7	MP503363 Available to backorder	Key Woodruff - 5.8"x3.16"x1.4"	£0.41 £0.34
8	MP581610 In stock	Bolt	£2.11 £1.76
9	MP500204 Available to backorder	Washer Spring 3.8"	£0.31 £0.26
10	MP503855 Available to backorder	Washer Flt 9.75x30x4.0 ZP	£1.66 £1.38
11	MP567332 Available to backorder	Plate- Stiffener Disc Blade Assy	£16.84 £14.03
13	MP503972 Available to backorder	Screw Set M6x16HT 8.8 Hex	£0.34 £0.28
