Masport Contractor - 478751 - Apr 2017 > 8136449 - Wheel Assembly

Description

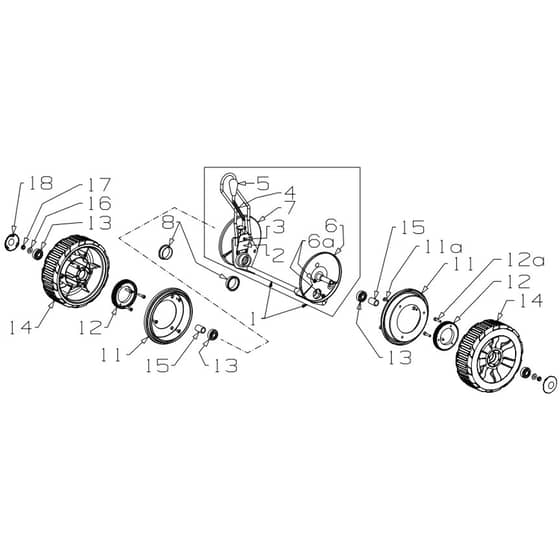

Masport Contractor Petrol Power Drive - Wheel Assembly Parts Diagram

Part Number: 478751

Model: S21 Contractor MRZ ST SPV 3'n1

Engine Model: B&S Series 850

Model Range: Apr 2017

Serial Number: > 8136449

Be the first to review this product

0 product questions

	Part No.	Details
1	MP765267 Available to backorder	Axle Assy- Rear SP Contr V2	£90.12 £75.10
2	MP580649 Available to backorder	Spring- Leaf	£5.62 £4.68
3	MP503373 Available to backorder	Rivet- Flat Head 3.16" x 27.64"	£0.96 £0.80
5	MP581729 Available to backorder	Knob- Height Lever Adj	£3.12 £2.60
6	MP503591 Available to backorder	(6a) Screw Pan M6 x 12	£0.34 £0.28
6	MP565262 Available to backorder	Cover- Dust LH Contr V2	£5.32 £4.43
7	MP565263 Available to backorder	Cover- Dust RH Contr V2	£5.32 £4.43
8	MP580091 Available to backorder	Bush- Pivot Rear Axle	£1.42 £1.18
11	MP502267 Available to backorder	(11a) Screw C.Sink M5 x 12 Allen Hd	£1.30 £1.08
11	MP567612 Available to backorder	Seal- Wheel Contr	£13.10 £10.92
12	MP503962 Available to backorder	(12a) Screw Cap M6 x 25	£2.40 £2.00
12	MP571272 In stock	Gear- Driving Cont 45 teeth	£43.84 £36.53
13	MP567564 Available to backorder	Bearing- Wheel 6202-2RS	£19.58 £16.32
14	MP767559 Available to backorder	Wheel Assy 235 x 75 Contr	£159.40 £132.83
15	MP567639 Available to backorder	Spacer- Wheel Length 30mm	£17.78 £14.82
16	MP501606 Available to backorder	Washer Flat 8 x 19 x 1.6	£0.36 £0.30
17	MP503831 Available to backorder	Nut M8 Hex Nyloc x 6mm thick	£0.72 £0.60
18	MP567637 Available to backorder	Hub Cap Contractor	£2.32 £1.93
