Masport Contractor - 465792 - Sept 2019 > 8392748 - Wheel Assembly

Name: Masport Contractor - 465792 - Sept 2019 > 8392748 - Wheel Assembly
SKU: contracr4657928392748wheel-group
Price: 0.26 GBP
Availability: InStock

Part No. contracr4657928392748wheel-group

Skip to the end of the images gallery

Skip to the beginning of the images gallery

Masport Contractor - 465792 - Sept 2019 > 8392748 - Wheel Assembly

Description

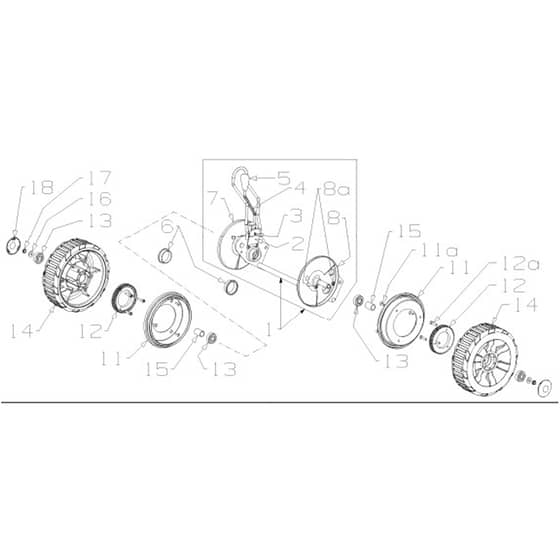

Masport Contractor Petrol Power Drive - Wheel Assembly Parts Diagram

Part Number: 465792

Model: CONTR MRZ STL SPV BBC

Engine Model: B&S Series 850

Model Range: Sept 2019

Serial Number: > 8392748

	Part No.	Details
1	MP765267 Available to backorder	Axle Assy- Rear SP Cont V2	£83.88 £69.90
2	MP580649 Available to backorder	Spring- Leaf	£5.44 £4.53
3	MP503373 Available to backorder	Rivet- Flat Head 3.16" x 27.64"	£0.94 £0.78
5	MP581729 Available to backorder	Knob- Height Lever Adj	£3.00 £2.50
6	MP580091 Available to backorder	Bush- Pivot Rear Axle	£1.34 £1.12
7	MP565263 Available to backorder	Cover- Dust RH Cont V2	£5.11 £4.26
8	MP565262 Available to backorder	Cover- Dust LH Cont V2	£5.11 £4.26
8	MP503591 Available to backorder	(8a) Screw Pan M6 x 12	£0.31 £0.26
11	MP567612 Available to backorder	Seal- Wheel Con	£12.62 £10.52
11	MP502267 Available to backorder	(11a) Screw C.Sink M5 x 12 Allen Head	£1.24 £1.03

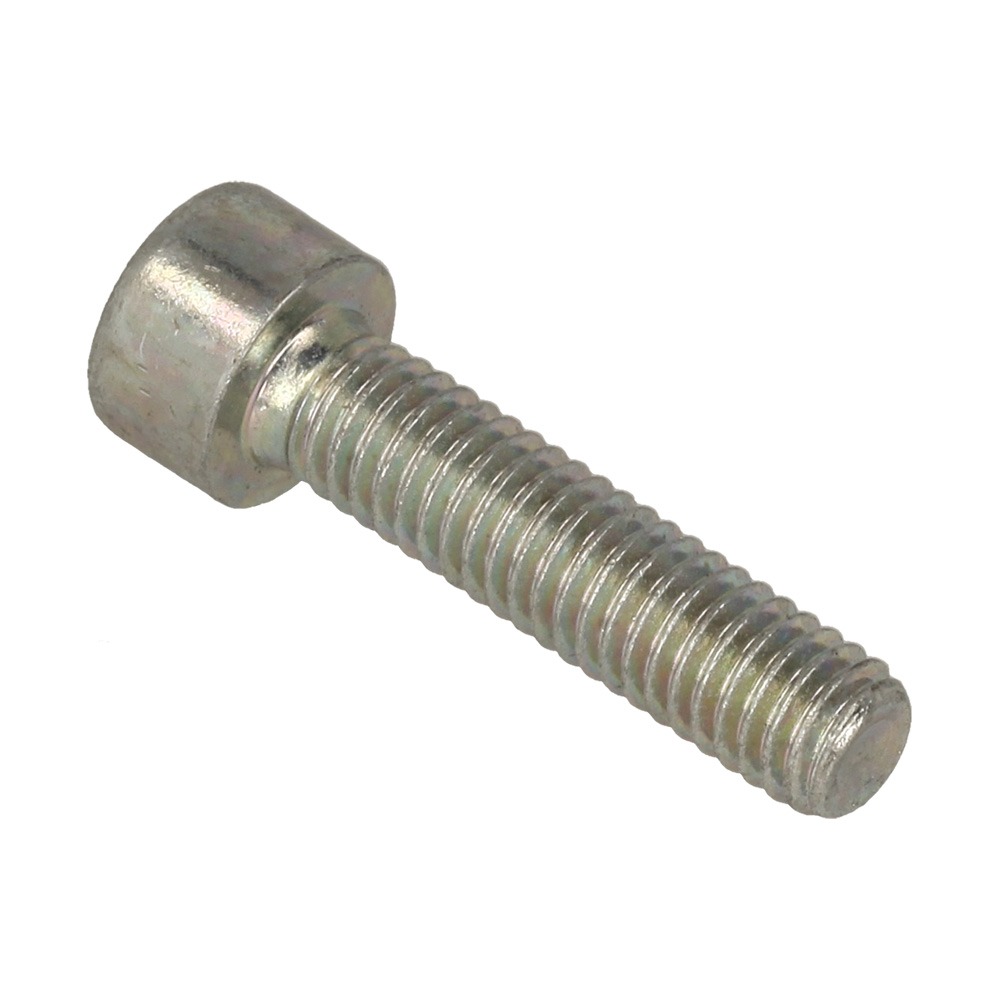

12	MP503962 Available to backorder	(12a) Screw Cap M6 x 25	£2.48 £2.07

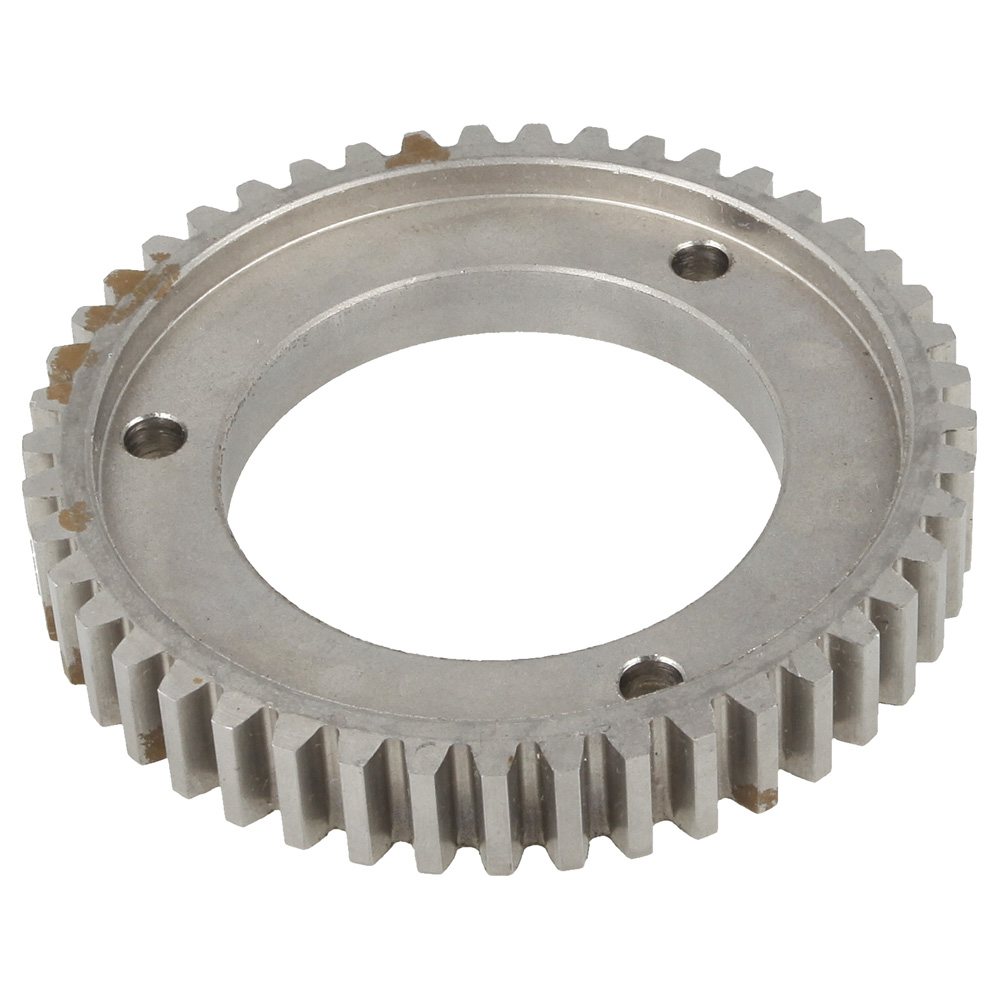

12	MP571272 In stock	Gear- Driving Cont 45 teeth	£46.96 £39.13
13	MP567564 Available to backorder	Bearing- Wheel 6202-2RS	£22.51 £18.76
14	MP767559 Available to backorder	Wheel Assy 235 x 75 Contr	£186.60 £155.50
15	MP567639 Available to backorder	Spacer- Wheel Length 30mm	£17.14 £14.28
16	MP501606 Available to backorder	Washer Flat 8 x 19 x 1.6	£0.37 £0.31
17	MP503831 Available to backorder	Nut M8 Hex Nyloc x 6mm thick	£0.72 £0.60
18	MP567637 Available to backorder	Hub Cap Con	£2.23 £1.86
