Masport Contractor - 465792 - Sept 2019 > 8392748 - Handle

Name: Masport Contractor - 465792 - Sept 2019 > 8392748 - Handle
SKU: contracr4657928392748handle-group
Price: 0.26 GBP
Availability: InStock

Part No. contracr4657928392748handle-group

Skip to the end of the images gallery

Skip to the beginning of the images gallery

Masport Contractor - 465792 - Sept 2019 > 8392748 - Handle

Description

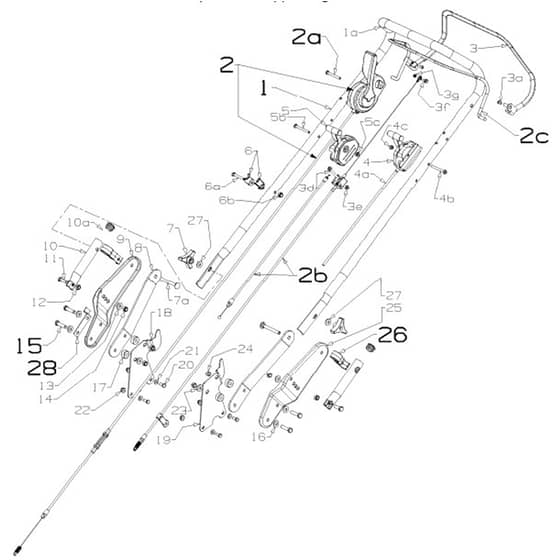

Masport Contractor Petrol Power Drive - Handle Parts Diagram

Part Number: 465792

Model: CONTR MRZ STL SPV BBC

Engine Model: B&S Series 850

Model Range: Sept 2019

Serial Number: > 8392748

	Part No.	Details
1	MP764088 Available to backorder	(1.1a) Handle & Sleeve OPC.SFT.BLK	£55.12 £45.93
2	MP974837 Available to backorder	(2c) Bail Arm Assy 21” BBC Sys Red	£17.36 £14.47

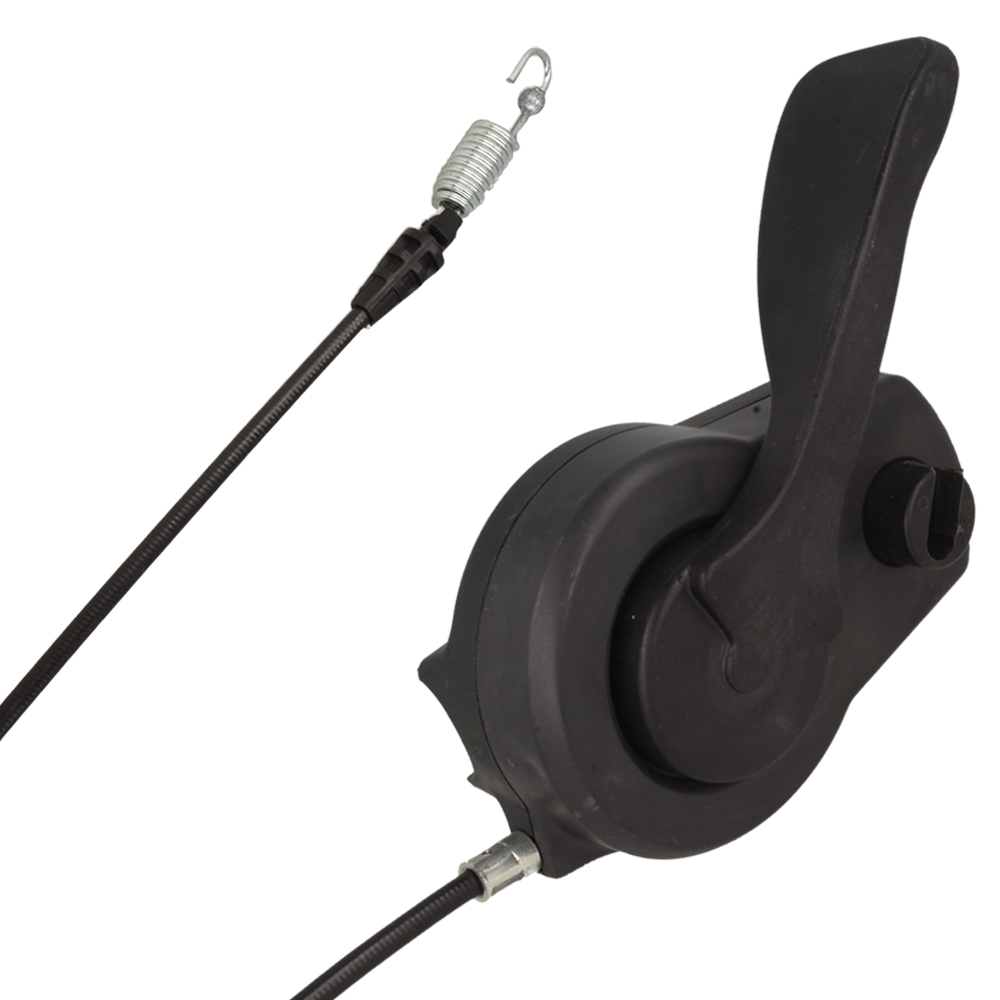

2	MP765258 In stock	Control- Cable & Lever Assy BBC	£26.38 £21.98
2	MP503508 Available to backorder	(2a) Screw Pan M6 x 55 Poz	£1.09 £0.91

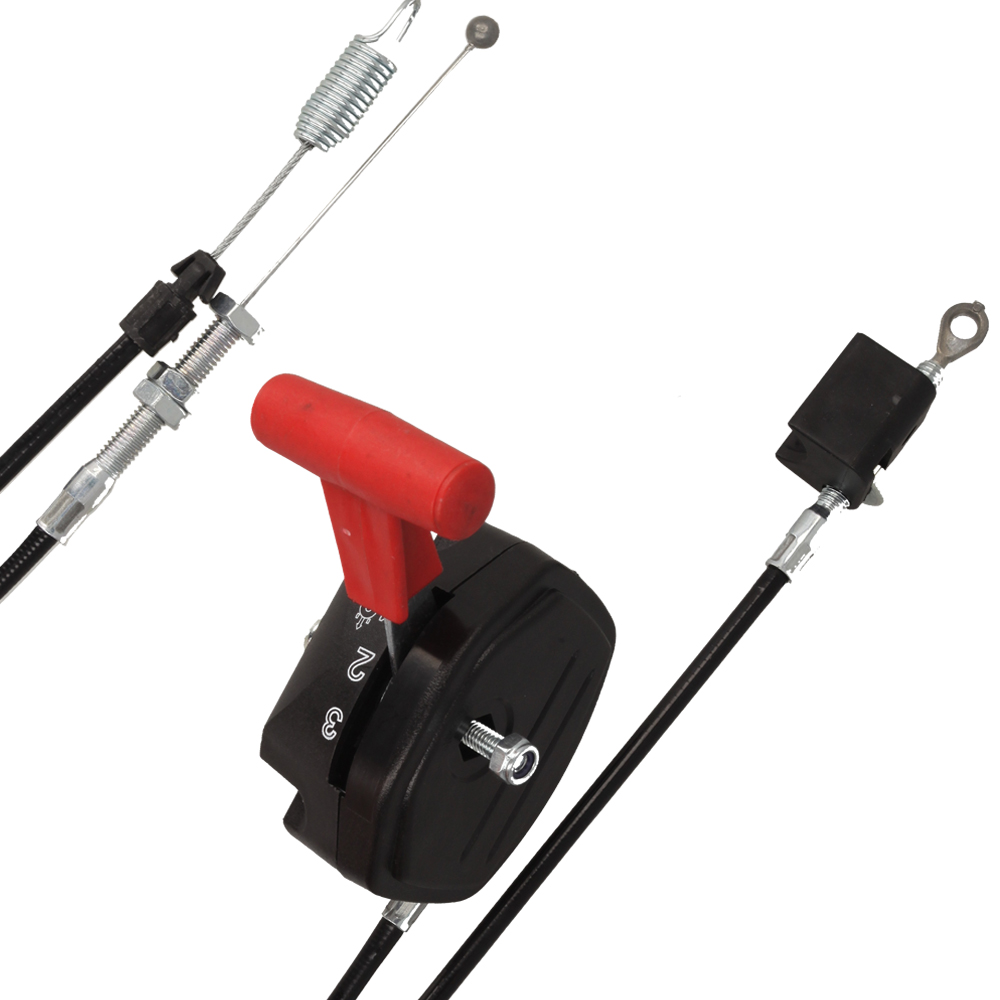

2	MP765393 In stock	(2b) Cable- Assy Clutch.SPV BBC Adj	Was £48.82 £40.68 Special Price £35.15 £29.29
3	MP502238 Available to backorder	(3g) Nut M5 Hex Nyloc x 5mm thick	£0.34 £0.28
3	MP501764 Available to backorder	(3e) Nut M6 Hex Nyloc x 6mm thick	£0.31 £0.26
3	MP965185 Available to backorder	Bail Arm Assy SP BBC Sys Red	£22.34 £18.62
3	MP502237 In stock	(3f) Bolt M5 Hex Fl.Head Shouldered	Was £14.74 £12.28 Special Price £10.57 £8.81
4	MP583460 Available to backorder	(4.4a) Throttle Ctrl & Cable -VE CH"T"	£25.69 £21.41
5	MP574272 Available to backorder	Control- Speed x 3 SP UPT HNDL	£22.09 £18.41
6	MP782546 Available to backorder	Comfort Start Kit	£16.08 £13.40
7	MP574230 Available to backorder	Knob- Plastic M8 Insert	£4.28 £3.57
7	MP502177 Available to backorder	(7a) Bolt Carriage M8 x 75	£1.66 £1.38
8	MP574128 Available to backorder	Brace- Handle Bkt Adj Con	£24.31 £20.26
9	MP964082 Available to backorder	Bracket- Handle Adjustable RH	£18.23 £15.19
10	MP974129 Available to backorder	Handle- Lower Stub S21 Stl Blk	£18.49 £15.41
12	MP501602 Available to backorder	Nut M8 Hex	£0.31 £0.26
13	MP501606 Available to backorder	Washer Flat 8 x 19 x 1.6	£0.37 £0.31
14	MP501793 Available to backorder	Nut M8 Hex Nyloc 8mm thick	£1.92 £1.60
15	MP501716 Available to backorder	Screw Set M8 x 3 Hex	£1.40 £1.17
17	MP574134 Available to backorder	Spacer- Pulley 8.5 x 19 x 4	£7.78 £6.48
18	MP574140 Available to backorder	Bracket- Catcher Mount RH	£18.04 £15.03
19	MP574139 Available to backorder	Bracket- Catcher Mount LH	£18.04 £15.03
20	MP501702 Available to backorder	Screw Set M6 x 16 Hex	£0.41 £0.34
21	MP501703 Available to backorder	Washer Flat 6 x 14 x 1.2	£0.48 £0.40
22	MP503973 Available to backorder	Nut M6 Hex Nyloc Flanged	£0.41 £0.34
25	MP964083 Available to backorder	Bracket- Handle Adjustable LH	£17.32 £14.43
26	MP572447 Available to backorder	Retainer- Control Cable– Contr	£5.00 £4.17
