Masport Contractor - 465792 - Sept 2019 > 8392748 - Deck

Name: Masport Contractor - 465792 - Sept 2019 > 8392748 - Deck
SKU: contracr4657928392748deck-group
Price: 0.28 GBP
Availability: InStock

Skip to the end of the images gallery

Skip to the beginning of the images gallery

Masport Contractor - 465792 - Sept 2019 > 8392748 - Deck

Description

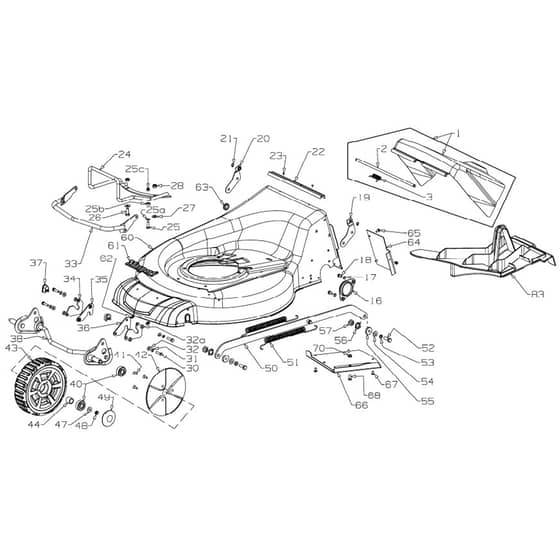

Masport Contractor Petrol Power Drive - Deck Parts Diagram

Part Number: 465792

Model: CONTR MRZ STL SPV BBC

Engine Model: B&S Series 850

Model Range: Sept 2019

Serial Number: > 8392748

Be the first to review this product

0 product questions

	Part No.	Details
1	MP764454 Available to backorder	Flap Assy Steel Contractor	£59.68 £49.73
3	MP579213 Available to backorder	Spring- Flap 19” STL	£2.32 £1.93
16	MP581178 Available to backorder	Retainer- Axle Rear	£7.74 £6.45
18	MP501959 Available to backorder	Screw Set M6 x 12 Hex	£0.38 £0.32
19	MP579209 Available to backorder	Bracket - Flap LH 19"	£4.92 £4.10
20	MP579210 Available to backorder	Bracket - Flap RH 19"	£4.92 £4.10
24	MP974518 Available to backorder	Guard- Bumper Assy	£21.04 £17.53
25	MP501764 Available to backorder	(25c) Nut M6 Hex Nyloc x 6mm thick	£0.35 £0.29
25	MP501703 Available to backorder	(25a) Washer Flat 6 x 14 x 1.2	£0.48 £0.40
25	MP501600 Available to backorder	Screw Set M6 x 20 Hex	£0.36 £0.30
27	MP501606 Available to backorder	Washer Flat 8 x 19 x 1.6	£0.36 £0.30
28	MP501793 Available to backorder	Nut M8 Hex Nyloc 8mm thick	£1.86 £1.55
33	MP974110 Available to backorder	Guard- Bumper Assy	£32.60 £27.17
34	MP574120 Available to backorder	Plate- Retainer Axle Fr.Inner	£7.54 £6.28
35	MP574122 Available to backorder	Plate- Retainer Axle Fr.RH	£12.82 £10.68
36	MP574121 Available to backorder	Plate- Retainer Axle Fr.LH	£12.82 £10.68
37	MP580030 In stock	Bush- Pivot Axle	£0.70 £0.58
38	MP565150 Available to backorder	Axle Assy- Front Contr 21” LC	£60.96 £50.80
40	MP567564 Available to backorder	Bearing- Wheel 6202-2RS	£19.58 £16.32
41	MP502267 Available to backorder	Screw C.Sink M5 x 12 Allen Head	£1.30 £1.08
42	MP574426 Available to backorder	Cover- Inner Wheel Front	£3.06 £2.55
43	MP764670 Available to backorder	Wheel Assy- 200 x 58mm	£113.38 £94.48
44	MP564039 Available to backorder	Spacer- Wheel o.d 19 x 18L	£19.70 £16.42
48	MP503831 Available to backorder	Nut M8 Hex Nyloc 6mm thick	£0.72 £0.60
49	MP567637 Available to backorder	Hub- Cap Contractor	£2.32 £1.93
50	MP565153 Available to backorder	Rod- Connecting 21" LC Contr	£26.68 £22.23
51	MP569035 Available to backorder	Spring- Counter Balance	£8.64 £7.20
53	MP503747 Available to backorder	Washer SPG 8	£0.48 £0.40
55	MP583448 Available to backorder	Spacer	£1,078.80 £899.00
56	MP580693 In stock	Washer Wavy 13.4 x 24.2 x .51	£0.34 £0.28
57	MP574208 Available to backorder	Nut- Pivot Con-Rod	£1.64 £1.37
60	MP768662 Available to backorder	HSG-StlT 21" XFQ FS BBC M.VPR	£275.40 £229.50
61	MP581240 Available to backorder	Nameplate- MASPORT	£7.08 £5.90
62	MP503150 Available to backorder	Clip- Starlock 5 dia	£0.52 £0.43
63	MP502179 Available to backorder	Grommet- Clutch Cable 20x16x6	£1.18 £0.98
64	MP574249 Available to backorder	Tunnel- G.Box Cover 21" Stl	£19.76 £16.47
65	MP503630 Available to backorder	Screw S.T 10x.4 Typ B	£0.90 £0.75
66	MP573285 Available to backorder	Cover- Belt 540 ST SP	£22.96 £19.13
68	MP501702 Available to backorder	Screw Set M6 x 16 Hex	£0.44 £0.37
70	MP503973 Available to backorder	Nut M6 Hex Nyloc Flanged	£0.44 £0.37
83	MP773389 Available to backorder	Insert- Mulching 21" Assy	£27.84 £23.20
