Description

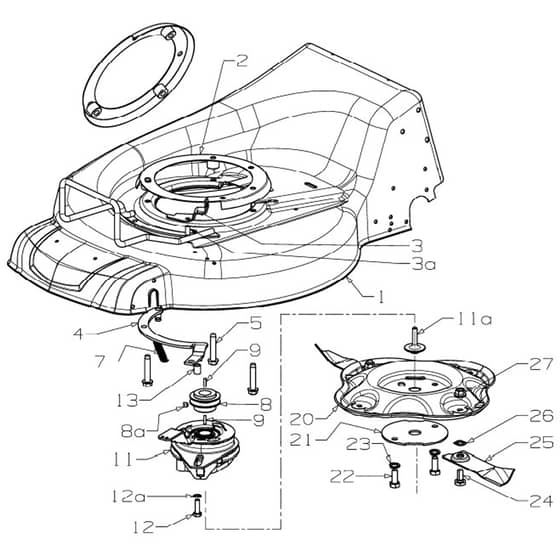

Masport Contractor Petrol Power Drive - BBC Assembly Parts Diagram

Part Number: 465792

Model: CONTR MRZ STL SPV BBC

Engine Model: B&S Series 850

Model Range: Sept 2019

Serial Number: > 8392748

Ref. Img. Part No. Details
  1 HSG-StlT21
HSG-StlT21
MP768662
Available to backorder
HSG-StlT21" XFQ FS BBC M.VPR
£275.40 £229.50

  2 Assy Ring- Safety BBC B&S
Assy Ring- Safety BBC B&S
MP565112
Available to backorder
Assy Ring- Safety BBC B&S
£18.04 £15.03

  3 Bracket- Cable Mount BBC
Bracket- Cable Mount BBC
MP574836
Available to backorder
Bracket- Cable Mount BBC
£5.08 £4.23

  4 Assy-Anti Rotate Bracket
Assy-Anti Rotate Bracket
MP974834
Available to backorder
Assy-Anti Rotate Bracket
£22.82 £19.02

  5 Screw S.T 3.8 x 2” UNC TRI
Screw S.T 3.8 x 2” UNC TRI
MP501081
Available to backorder
Screw S.T 3.8 x 2” UNC TRI
£3.36 £2.80

  7 Spring BBC
Spring BBC
MP574847
Available to backorder
Spring BBC
£2.98 £2.48

  8 (8a) Screw Grub M8 x 8
(8a) Screw Grub M8 x 8
MP503386
Available to backorder
(8a) Screw Grub M8 x 8
£0.44 £0.37

  8 Pulley-Eng 7.8bx55dx30h BBC Blk
Pulley-Eng 7.8bx55dx30h BBC Blk
MP574835
Available to backorder
Pulley-Eng 7.8bx55dx30h BBC Blk
£19.80 £16.50

  9 Key- W.Ruff 5.8 x 5.32 x 1.4
Key- W.Ruff 5.8 x 5.32 x 1.4
MP500636
Available to backorder
Key- W.Ruff 5.8 x 5.32 x 1.4
£14.81 £12.34

  11 (11a) Screw. Flange BBC Sys HT
(11a) Screw. Flange BBC Sys HT
MP501356
Available to backorder
(11a) Screw. Flange BBC Sys HT
£11.10 £9.25

  11 Blade Brake Clutch (BBC)
Blade Brake Clutch (BBC)
MP574839
Available to backorder
Blade Brake Clutch (BBC)
£278.36 £231.97

  12 Screw Set M8 x 25 HT
Screw Set M8 x 25 HT
MP502296
Available to backorder
Screw Set M8 x 25 HT
£1.18 £0.98

  12 (12a) Washer Int Tooth Grip 8.2ID
(12a) Washer Int Tooth Grip 8.2ID
MP502271
Available to backorder
(12a) Washer Int Tooth Grip 8.2ID
£0.68 £0.57

  13 Sleeve- Anti Rotate BBC
Sleeve- Anti Rotate BBC
MP574846
Available to backorder
Sleeve- Anti Rotate BBC
£10.56 £8.80

  20 Disc Blade- Wavy BBC System
Disc Blade- Wavy BBC System
MP574832
Available to backorder
Disc Blade- Wavy BBC System
£41.96 £34.97

  21 Plate- Stiffener Disc BBC
Plate- Stiffener Disc BBC
MP574833
Available to backorder
Plate- Stiffener Disc BBC
£10.04 £8.37

  22 Screw Set M10 x 25HT
Screw Set M10 x 25HT
MP501846
Available to backorder
Screw Set M10 x 25HT
£1.40 £1.17

  23 Washer SPG 10
Washer SPG 10
MP503897
Available to backorder
Washer SPG 10
£0.35 £0.29

  24 Bolt- Pivot M10 x 22
Bolt- Pivot M10 x 22
MP581707
Available to backorder
Bolt- Pivot M10 x 22
£2.28 £1.90

  26 Washer Wavy 13.4 x 24.2
Washer Wavy 13.4 x 24.2
MP580693
In stock
Washer Wavy 13.4 x 24.2
£0.34 £0.28

  27 Nut M10 Hex Nyloc Flange
Nut M10 Hex Nyloc Flange
MP503672
In stock
Nut M10 Hex Nyloc Flange
£0.32 £0.27


Description

Masport Contractor Petrol Power Drive - BBC Assembly Parts Diagram

Part Number: 465792

Model: CONTR MRZ STL SPV BBC

Engine Model: B&S Series 850

Model Range: Sept 2019

Serial Number: > 8392748
