Masport 800ST - 579987 - June 2008 7114028 - Main Assembly

Description

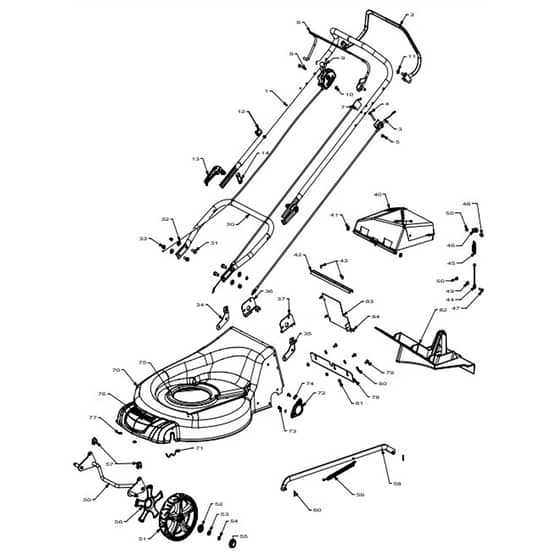

Masport 800ST Petrol Push Rotary Mower - Main Assembly Parts Diagram

Part Number: 579987

Model: 800ST SP

Engine Model: B & S Series 675

Model Range: June 2008

Serial Number: 7114028

	Part No.	Details
1	MP781265 Available to backorder	Handle Assy- Upper Upt OPC 19	£29.20 £24.33
2	MP982161 Available to backorder	Bail Arm Assy SP	£28.26 £23.55
3	MP765435 In stock	Cable- Clutch Thumb Wheel	£30.19 £25.16
4	MP503604 Available to backorder	Screw Pan M6x45 Poz ZP	£0.83 £0.69
5	MP501764 Available to backorder	Nut M6 Nylocx 6 Thck	£0.31 £0.26
6	MP981740 Available to backorder	Bail Arm Assy OPC Flatnd	£20.51 £17.09
7	MP583395 In stock	Cable- Engine OPC Push On	£20.12 £16.77
8	MP582506 Available to backorder	Control- Throttle Capro "T"	£28.22 £23.52
11	MP501365 Available to backorder	Clip- Starlock 5.16"	£0.48 £0.40
12	MP703856 Available to backorder	Comfort Start Kit	£19.06 £15.88
14	MP581527 Available to backorder	Retainer- Clutch Cable	£0.72 £0.60
30	MP973125 Available to backorder	Handle- Lower "U" 19"	£33.20 £27.67
31	MP501597 Available to backorder	Screw Set M8x20 Hex	£0.41 £0.34
32	MP501606 Available to backorder	Washer Flat 8x19x1.6	£0.37 £0.31
33	MP501793 Available to backorder	Nut M8 Nylocx 8 Thck	£1.92 £1.60
34	MP579210 Available to backorder	Bracket- Flap RH 19"	£4.74 £3.95
35	MP579209 Available to backorder	Bracket- Flap LH 19"	£4.74 £3.95
36	MP573436 Available to backorder	Bracket- RH 19.21" ST Aero	£8.23 £6.86
37	MP573435 Available to backorder	Bracket- LH 19.21" ST Aero	£8.23 £6.86
44	MP569731 Available to backorder	Cable Smart Chute	£0.31 £0.26
45	MP580268 Available to backorder	Spring Pedal	£1.24 £1.03
46	MP501682 Available to backorder	Nut M6	£2.48 £2.07
46	MP569732 Available to backorder	Bracket Smart Chute	£3.95 £3.29
47	MP501600 Available to backorder	Screw Set M6x20	£0.34 £0.28
48	MP501959 Available to backorder	Screw Set M6x12	£0.48 £0.40
50	MP983281 Available to backorder	Axle Assy Front 200mm Thrd	£32.42 £27.02
51	MP573706 Available to backorder	Wheel Assy- 200mm BB Mag Slv	£34.57 £28.81
52	MP551212 Available to backorder	Bearing- Wheel Ball Type	£5.75 £4.79
54	MP503831 Available to backorder	Nut M8 Hex Nyloc 6 Thck	£0.72 £0.60
55	MP579204 Available to backorder	Hub Cap Button Mag Silver	£0.48 £0.40
56	MP579205 Available to backorder	Cover- Inner Wheel	£2.36 £1.97
57	MP580030 In stock	Bush- Pivot Axle	£0.76 £0.63
58	MP573814 Available to backorder	Rod Assy Connecting 540	£16.82 £14.02
59	MP580621 Available to backorder	Spring Counter Balance SP	£4.92 £4.10
60	MP501056 Available to backorder	Pin Cotter 2.3x16	£0.48 £0.40
70	MP773241 Available to backorder	Housing Assy- Stl T 21"	£224.40 £187.00
71	MP529674 In stock	Retainer- Axle Front "W"	£0.50 £0.42
72	MP581178 Available to backorder	Retainer Axle Rear	£7.46 £6.22
75	MP580453 Available to backorder	Screw S.T 3.8x1-1.8 UNC TRIBLK	£2.23 £1.86
76	MP581240 In stock	Nameplate Black.White	£7.14 £5.95
77	MP503150 Available to backorder	Clip- Starlock 5 Dia	£0.48 £0.40
78	MP571048 Available to backorder	Hook 19.21" Aero Catcher	£18.49 £15.41
79	MP503591 Available to backorder	Screw Pan M6x12	£0.31 £0.26
80	MP501703 Available to backorder	Washer Flt 6x14x1.2	£0.48 £0.40
82	MP573389 Available to backorder	Insert- Mulching 21" Stl SP	£29.52 £24.60
83	MP573579 Available to backorder	Tunnel- GBox Cover 21" Stl	£20.54 £17.12
84	MP503834 Available to backorder	Screw S.T M4x10 Washer	£0.48 £0.40
