Masport 800ST - 579987 - June 2008 7114028 - Gearbox Assembly

Description

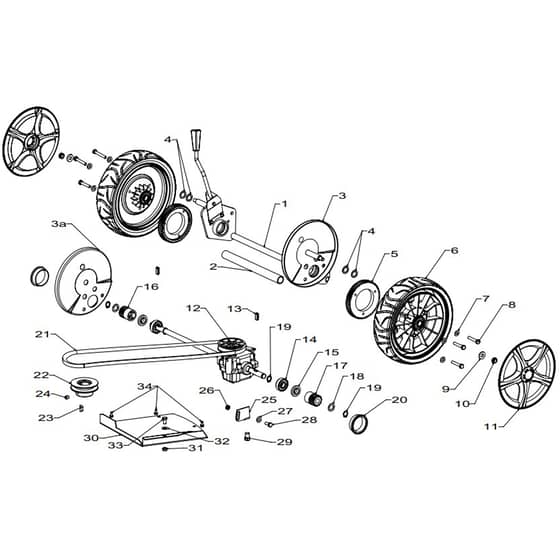

Masport 800ST Petrol Push Rotary Mower - Gearbox Assembly Parts Diagram

Part Number: 579987

Model: 800ST SP

Engine Model: B & S Series 675

Model Range: June 2008

Serial Number: 7114028

	Part No.	Details
1	MP779744 Available to backorder	Axle Assy Rear Comp 540 SP	£73.44 £61.20
3	MP579427 Available to backorder	Dust Cover LH	£5.44 £4.53
3	MP579426 Available to backorder	(3a) Dust Cover RH	£5.44 £4.53
4	MP503301 Available to backorder	Washer Flt 1.2x3.4x18G	£3.23 £2.69
5	MP569180 Available to backorder	Gear Driving- 45 Teeth	£50.98 £42.48
6	MP579070 Available to backorder	Wheel Assy- 220mm BB MSV SP	£42.83 £35.69
7	MP501703 Available to backorder	Washer Flat 6x14x1.2	£0.48 £0.40
8	MP501815 Available to backorder	Screw Set M6x35	£0.34 £0.28
9	MP501606 Available to backorder	Washer Flat 8x19x1.6	£0.37 £0.31
10	MP503831 Available to backorder	Nut M8 Nyloc 6 Thck	£0.72 £0.60
11	MP579207 Available to backorder	Hub Cap 220mm MSV SP Silver	£4.74 £3.95

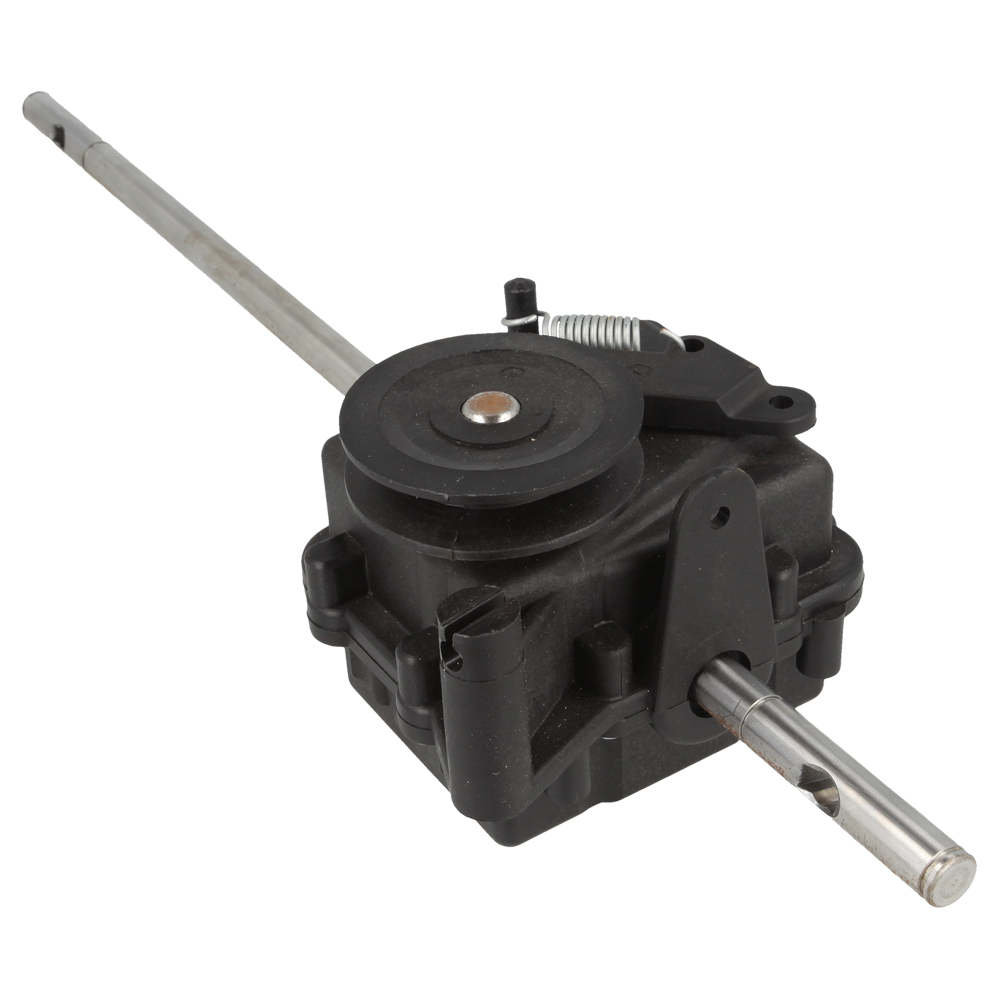

12	MP573181 Available to backorder	Gear Box Single Speed 540	£147.48 £122.90
13	MP581092 Available to backorder	Pawl Pinion 950 SP	£2.86 £2.38
14	MP501213 Available to backorder	Bearing 12x32x10 6201 2RS	£17.28 £14.40
15	MP581093 Available to backorder	Cap Pinion 950 SP Plastic	£11.46 £9.55
16	MP569179 Available to backorder	Pinion RH 12 Teeth	£32.92 £27.43
17	MP569178 Available to backorder	Pinion LH 12 Teeth	£32.92 £27.43
18	MP503102 Available to backorder	Washer Flat 12x20x0.4	£0.72 £0.60
19	MP503759 In stock	Circlip 12 EXT DIN 471	£0.32 £0.27
20	MP580091 Available to backorder	Bush- Pivot Rear Axle	£1.34 £1.12
21	MP571009 In stock	Belt- V HC Vectra XPZ 925 Gate	£42.68 £35.57
22	MP782373 Available to backorder	Pulley- Engine 25Bx34.5H SP	£37.12 £30.93
23	MP503363 Available to backorder	Key- W.Ruff 5.8x3.16x1.4	£0.41 £0.34
24	MP503386 Available to backorder	Screw Grub M8x8	£0.41 £0.34
25	MP573759 Available to backorder	Mount Gearbox 21"SP ST	£5.63 £4.69
26	MP503973 Available to backorder	Nut M6 Nyloc Flange	£0.41 £0.34
28	MP501702 Available to backorder	Screw Set M6x16	£0.41 £0.34
29	MP503955 Available to backorder	Screw Set M10x12	£1.14 £0.95
30	MP573285 Available to backorder	Cover- Belt 540 ST SP	£22.09 £18.41
31	MP501764 Available to backorder	Nut M6 Hex Nylocx 6 Thck	£0.31 £0.26
33	MP501959 Available to backorder	Screw Set M6x12	£0.48 £0.40
34	MP503834 Available to backorder	Screw S.T M4x10 Washrhex	£0.48 £0.40
