Masport 800ST - 579987 - June 2008 7114028 - 540mm QuickCut Blade Assembly

Description

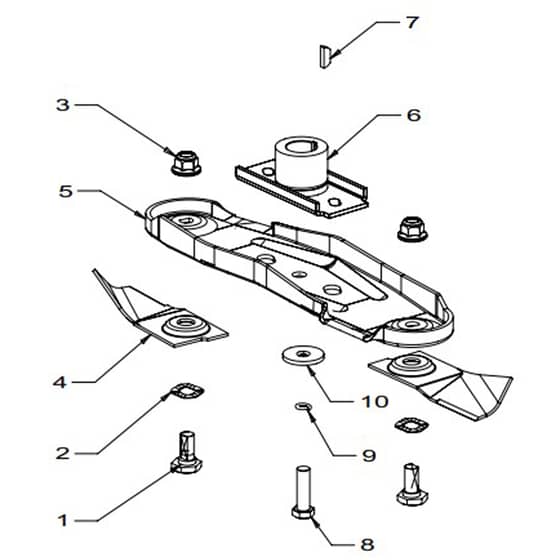

Masport 800ST Petrol Push Rotary Mower - 540mm QuickCut Blade Assembly Parts Diagram

Part Number: 579987

Model: 800ST SP

Engine Model: B & S Series 675

Model Range: June 2008

Serial Number: 7114028

	Part No.	Details
1	MP581707 In stock	Bolt-Blade	£2.41 £2.01
2	MP580693 In stock	Washer Wavy 13.4 x 24.2	£0.37 £0.31
3	MP503672 In stock	Nut Flange Nyloc M10	£0.36 £0.30
5	MP980653 Available to backorder	Carrier Blade QuickCut	£31.19 £25.99
6	MP031640 Available to backorder	Driver Assy 25mm	£21.84 £18.20
7	MP503363 Available to backorder	Key Woodruff - 5.8" x 3.16" x 1.4"	£0.41 £0.34
8	MP581610 In stock	Screw Set NF 3.8" x 1.25 NYG8	£2.11 £1.76
9	MP500204 Available to backorder	Washer Spring 3.8"	£0.31 £0.26
10	MP503667 Available to backorder	Washer Flat 9.75 x 30 x 3	£1.14 £0.95
