Masport 800ST - 480955 - Oct 2015 > 7975087 - Handle

Name: Masport 800ST - 480955 - Oct 2015 > 7975087 - Handle
SKU: 800st4809557975087handle-group
Price: 0.29 GBP
Availability: InStock

Description

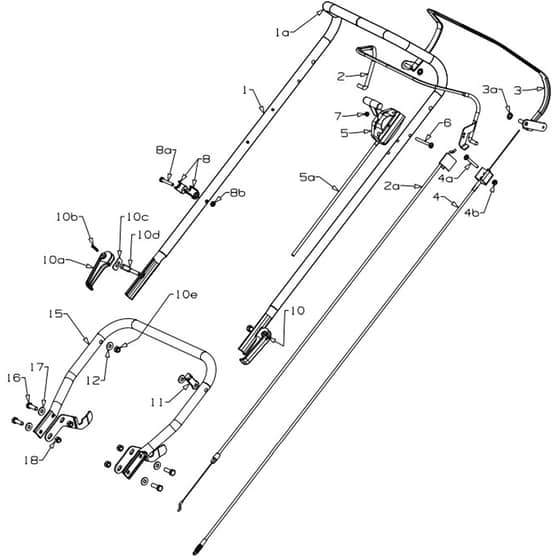

Masport 800ST Petrol Power Drive - Handle Parts Diagram

Part Number: 480955

Model: S21 800 ST SP 3'n1

Engine Model: B&S Series 675EXi

Model Range: Oct 2015

Serial Number: > 7975087

	Part No.	Details
1	MP764430 Available to backorder	(1.1a) Handle Assy-Upper Upt Blk	£61.86 £51.55
2	MP579782 Available to backorder	(2a) Cable- Engine OPC (push on)	£15.80 £13.17
2	MP981740 Available to backorder	Bail Arm Assy OPC	£21.30 £17.75
3	MP982161 Available to backorder	Bail Arm Assy SP	£27.36 £22.80
3	MP501365 Available to backorder	(3a) Clip- Starlock 5.16"	£0.46 £0.38
4	MP765435 In stock	Cable- Clutch Thumb Wheel	£28.18 £23.48
4	MP501764 Available to backorder	(4b) Nut M6 Hex Nyloc x 6mm thick	£0.35 £0.29
4	MP503604 Available to backorder	(4a) Screw Set M6 x 45 Poz	£0.86 £0.72
5	MP583460 In stock	(5.5a) Throttle & Cable VE LH CH "T"	£23.98 £19.98
6	MP503508 Available to backorder	Screw Pan M6 x 55	£1.14 £0.95
8	MP703856 Available to backorder	Comfort Start Kit	£19.80 £16.50
8	MP503794 Available to backorder	(8a) Screw Set M6 x 40	£0.35 £0.29
10	MP582419 Available to backorder	(10a) Lever- Handle Locking	£4.92 £4.10
10	MP016777 Available to backorder	(10c) Washer- Slipper S.S	£0.68 £0.57
10	MP779755 In stock	Cam Lock Assy (1 per)	£10.06 £8.38
10	MP503369 Available to backorder	(10b) Pin Tension 5.0 x 22	£0.48 £0.40
11	MP581527 Available to backorder	Retainer- Clutch Cable Handle	£0.72 £0.60
12	MP501606 Available to backorder	Washer Flat 8 x 19 x 1.6	£0.36 £0.30
15	MP973125 Available to backorder	Handle- Lower "U" 19" Wide	£28.74 £23.95
16	MP501597 Available to backorder	Screw Set M8 x 20	£0.44 £0.37
18	MP501793 Available to backorder	Nut M8 Hex Nyloc x 8mm thick	£1.86 £1.55
