Masport 800ST - 480955 - Oct 2015 > 7975087 - Gearbox

Description

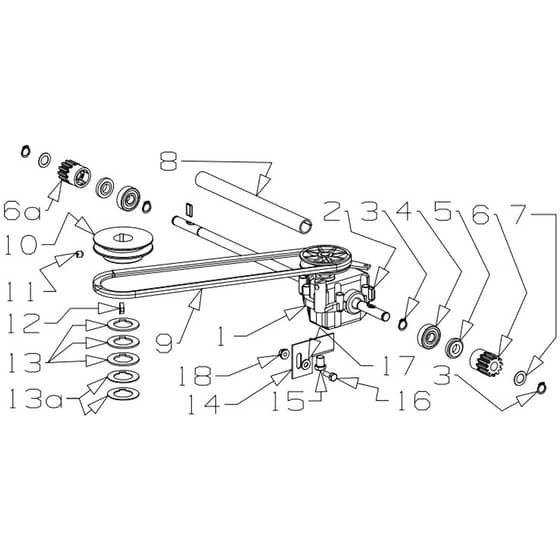

Masport 800ST Petrol Power Drive - Gearbox Parts Diagram

Part Number: 480955

Model: S21 800 ST SP 3'n1

Engine Model: B&S Series 675EXi

Model Range: Oct 2015

Serial Number: > 7975087

	Part No.	Details
1	MP573181 Available to backorder	Gearbox-Single Speed 21"	£147.48 £122.90
2	MP581092 Available to backorder	Pawl Pinion 950 SP	£2.86 £2.38
3	MP503759 In stock	Circlip 12 EXT DIN 471	£0.32 £0.27
4	MP501213 Available to backorder	Bearing 12x32x10 6201 2RS	£17.28 £14.40
5	MP581093 Available to backorder	Cap Pinion 950 SP Plastic	£11.46 £9.55
6	MP569178 Available to backorder	Pinion LH 12 Teeth	£32.92 £27.43
6	MP569179 Available to backorder	(6a) Pinion RH 12 Teeth	£32.92 £27.43
7	MP503102 Available to backorder	Washer Flat 12x20x0.4	£0.72 £0.60
9	MP571009 In stock	Belt- V HC Vextra XPZ 925 Gates	£42.68 £35.57
11	MP503386 Available to backorder	Screw Grb M8 x 8	£0.41 £0.34
12	MP503363 Available to backorder	Key Woodruff 5.8x3.16x1.4	£0.41 £0.34
13	MP569552 Available to backorder	Spacer-Pulley25x42x2	£3.40 £2.83
13	MP573024 Available to backorder	(13a) Spacer-Pulley25x42x1	£0.41 £0.34
14	MP573759 Available to backorder	Mount Gearbox 21" SP	£5.63 £4.69
15	MP503955 Available to backorder	Screw Set M10 x 12 Hex	£1.14 £0.95
16	MP501702 Available to backorder	Screw Set M6x16 Hex	£0.41 £0.34
17	MP501703 Available to backorder	Washer Flat 6 x 14 x 1.2	£0.48 £0.40
18	MP503973 Available to backorder	Nut M6 Nyloc Flange	£0.41 £0.34
