Masport 800ST - 480955 - Oct 2015 > 7975087 - 540 mm (21") Quick Cut Blade Assembly

Description

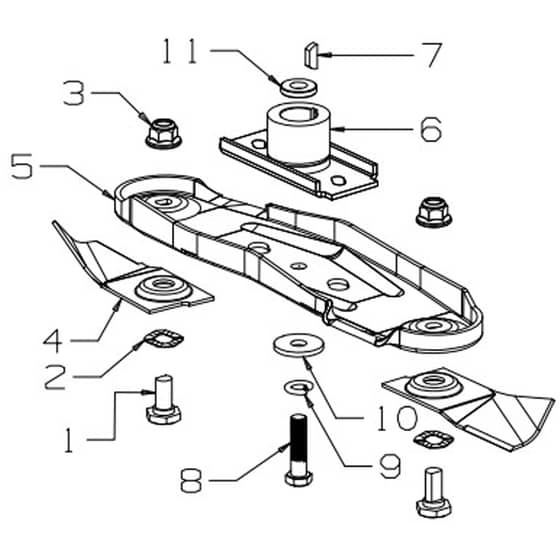

Masport 800ST Petrol Power Drive - 540 mm (21") Quick Cut Blade Assembly Parts Diagram

Part Number: 480955

Model: S21 800 ST SP 3'n1

Engine Model: B&S Series 675EXi

Model Range: Oct 2015

Serial Number: > 7975087

	Part No.	Details
1	MP581707 In stock	Bolt- Pivot M10 x 22	£2.41 £2.01
2	MP580693 In stock	Washer Wavy 13.4 x 24.2	£0.37 £0.31
3	MP503672 In stock	Nut M10 Hex Nyloc Flanged	£0.36 £0.30
5	MP980653 Available to backorder	Carrier- Blade QuickCut	£31.19 £25.99
6	MP031640 Available to backorder	Driver Assy-Blade - 25mm	£21.84 £18.20
7	MP503363 Available to backorder	Key Woodruff-5.8" x 3.16" x 1.4"	£0.41 £0.34
8	MP581610 In stock	Bolt	£2.11 £1.76
9	MP500204 Available to backorder	Washer Spring 3.8"	£0.31 £0.26
10	MP503667 Available to backorder	Washer Flat 9.75 x 30 x 3.0	£1.14 £0.95
11	MP501704 Available to backorder	Washer Flat 10 x 19 x 1.6	£0.41 £0.34
