Masport 800ST - 479987 - June 2008 7114028 - Wheel Assembly

Description

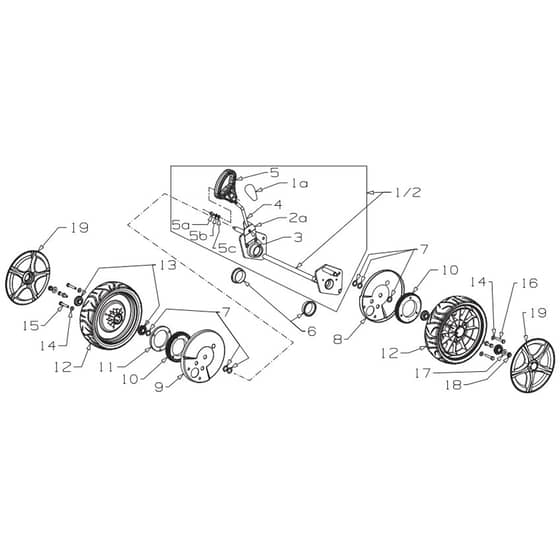

Masport 800ST Petrol Push Rotary Mower - Wheel Assembly Parts Diagram

Part Number: 479987

Model: 800ST SP WC CO OPC 09

Engine Model: B&S XVS 675

Model Range: June 2008

Serial Number: 7114028

	Part No.	Details
1	MP581729 Available to backorder	(1.a) Knob- Height Lever MSV	£3.00 £2.50
1	MP768795 Available to backorder	Axle Assy Rear Drive 21” SP	£70.44 £58.70
2	MP580649 Available to backorder	(2.a) Spring Leaf	£5.44 £4.53
3	MP503373 Available to backorder	Rivet- F.HD 3.16 x 27.64	£0.94 £0.78
4	MP568770 Available to backorder	Rod Height Selector 21" V2	£7.86 £6.55
5	MP501059 Available to backorder	(5a) Screw Pan M5 x 12 POZ	£0.71 £0.59
5	MP501765 Available to backorder	(5b) Washer SPG 5	£0.48 £0.40
5	MP501330 Available to backorder	(5c) Washer Flat 5 x 10 x 1.0	£1.14 £0.95
5	MP568771 Available to backorder	Handle- Height Lever Adj V2	£10.60 £8.83
6	MP580091 Available to backorder	Bush- Pivot Rear Axle	£1.34 £1.12
7	MP503301 Available to backorder	Washer Flat 1.2 x 3.4 x 18g	£3.23 £2.69
8	MP579427 Available to backorder	Dust Cover LH Maxic SP	£5.44 £4.53
9	MP579426 Available to backorder	Dust Cover LH.RH MSV SP	£5.44 £4.53
10	MP569180 Available to backorder	Gear Driving - 45 Teeth	£50.98 £42.48
11	MP569479 Available to backorder	Spacer Gear Driving	£15.97 £13.31
12	MP579070 Available to backorder	Wheel Assy- 220mm SP	£42.83 £35.69
13	MP551212 Available to backorder	Bearing-Wheel Ball Type	£5.75 £4.79
14	MP501703 Available to backorder	Washer Flat 6 x 14 x 1.2	£0.48 £0.40
15	MP503794 Available to backorder	Screw Set M6 x 40 RH Side	£0.31 £0.26
16	MP501815 Available to backorder	Screw Set M6 x 35 LH Side	£0.34 £0.28
17	MP501606 Available to backorder	Washer Flat 8 x 19 x 1.6	£0.37 £0.31
18	MP503831 Available to backorder	Nut M8 Hex Nyloc x 6mm thick	£0.72 £0.60
19	MP579207 Available to backorder	Hub Cap 220mm MSV SP Silver	£4.74 £3.95
