Masport 800ST - 478968 - Jan 2014 - Wheel and Gearbox Assembly

Description

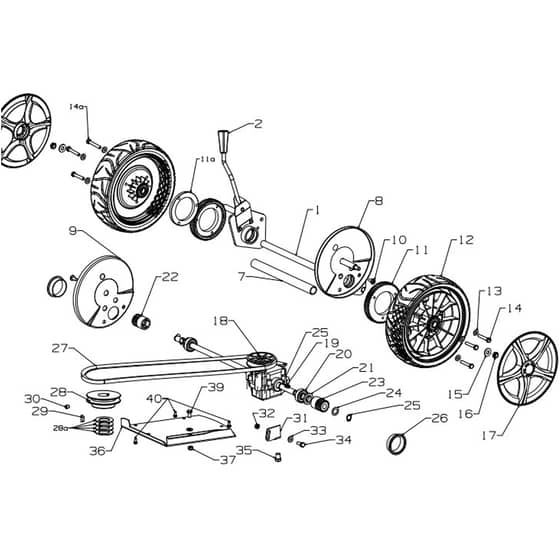

Masport 800ST Petrol Power Drive - Wheel and Gearbox Assembly Parts Diagram

Part Number: 478968

Model: 800ST SP

Engine Model: B & S Series 675

Model Range: Jan 2014

Serial Number: -

	Part No.	Details
1	MP768795 Available to backorder	Axle Assy Rear Drive 21" SP	£70.44 £58.70
6	MP581729 Available to backorder	Knob Height Lever	£3.00 £2.50
8	MP579427 Available to backorder	Dust Cover LH	£5.44 £4.53
9	MP579426 Available to backorder	Dust Cover RH	£5.44 £4.53
10	MP503301 Available to backorder	Washer Flt 1.2x3.4x18G	£3.23 £2.69
11	MP569479 Available to backorder	(11a) Spacer Gear Driving	£15.97 £13.31
11	MP569180 Available to backorder	Gear Driving - 45 teeth	£50.98 £42.48
12	MP579070 Available to backorder	Wheel Assy- 220mm BB MSV S	£42.83 £35.69
13	MP501703 Available to backorder	Washer Flat 6x14x1.2	£0.48 £0.40
14	MP503794 Available to backorder	(14a) Screw Set M6x40HT4.6	£0.31 £0.26
14	MP501815 Available to backorder	Screw Set M6x35	£0.34 £0.28
15	MP501606 Available to backorder	Washer Flat 8x19x1.6	£0.37 £0.31
16	MP503831 Available to backorder	Nut M8 Nyloc 6 Thck	£0.72 £0.60
17	MP579207 Available to backorder	Hub Cap 220mm MSV SP Silver	£4.74 £3.95
18	MP573181 Available to backorder	Gear Box Single Speed 540	£147.48 £122.90
19	MP581092 Available to backorder	Pawl Pinion 950 SP	£2.86 £2.38
20	MP501213 Available to backorder	Bearing 12x32x10 6201 2RS	£17.28 £14.40
21	MP581093 Available to backorder	Cap Pinion 950 SP Plastic	£11.46 £9.55
22	MP569179 Available to backorder	Pinion RH 12 Teeth	£32.92 £27.43
24	MP503102 Available to backorder	Washer Flat 12x20x0.4	£0.72 £0.60
25	MP503759 In stock	Circlip 12 EXT DIN 471	£0.32 £0.27
26	MP580091 Available to backorder	Bush- Pivot Rear Axle	£1.34 £1.12
28	MP569552 Available to backorder	(28a) Spacer Pulley Eng 25x42x2	£3.40 £2.83
29	MP503363 Available to backorder	Key- W.Ruff 5.8x3.16x1.4	£0.41 £0.34
30	MP503386 Available to backorder	Screw Grub M8x8	£0.41 £0.34
31	MP573759 Available to backorder	Mount Gearbox 21"SP ST	£5.63 £4.69
32	MP503973 Available to backorder	Nut M6 Nyloc Flange	£0.41 £0.34
34	MP501702 Available to backorder	Screw Set M6x16	£0.41 £0.34
35	MP503955 Available to backorder	Screw Set M10x12	£1.14 £0.95
36	MP573285 Available to backorder	Cover- Belt 540 ST SP	£22.09 £18.41
37	MP501764 Available to backorder	Nut M6 Hex Nylocx 6 Thck	£0.31 £0.26
39	MP501959 Available to backorder	Screw Set M6x12	£0.48 £0.40
40	MP503834 Available to backorder	Screw S.T M4x10 Washrhex	£0.48 £0.40
