Masport 800ST - 465971 - Oct 2022 - Handle

Description

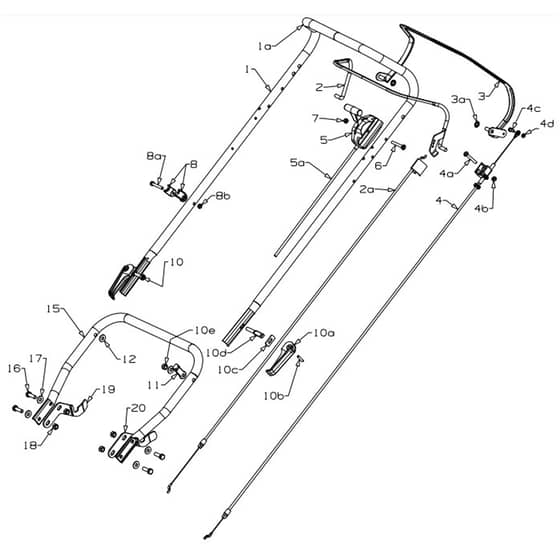

Masport 800ST Petrol Power Drive - Handle Parts Diagram

Part Number: 465971

Model: 800ST WC 3’n1 SP OPC 22

Engine Model: Loncin LC1P70F-3 196cc

Model Range: Oct 2022

Serial Number: -

	Part No.	Details
1	MP764430 Available to backorder	(1.1a) Handle & Sleeve 21” SFT.BLK	£59.51 £49.59
2	MP579782 In stock	(2a) Cable- Engine OPC (push on)	£16.93 £14.11
2	MP981740 Available to backorder	Bail Arm Assy OPC Red	£20.51 £17.09
3	MP501365 Available to backorder	(3a) Clip- Starlock 5.16”	£0.48 £0.40
3	MP982161 Available to backorder	Bail Arm Assy SP Red	£28.26 £23.55
4	MP502237 In stock	(4c) Bolt Hex F.Head Shouldered M5	Was £14.74 £12.28 Special Price £10.57 £8.81
4	MP503604 Available to backorder	(4a) Screw Set M6 x 45 Poz	£0.83 £0.69
4	MP765434 In stock	Cable- Clutch Thumb Wheel	£27.05 £22.54
4	MP502238 Available to backorder	(4d) Nut M5 Hex Nyloc x 5mm thick	£0.34 £0.28
4	MP501764 Available to backorder	(4b) Nut M6 Hex Nyloc x 6mm thick	£0.31 £0.26
5	MP583460 Available to backorder	(5.5a) Throttle & Cable -VE LH C “T”	£25.69 £21.41
6	MP503508 Available to backorder	Screw Pan M6 x 55	£1.09 £0.91
8	MP703856 Available to backorder	Comfort Start Kit	£19.06 £15.88
8	MP503794 Available to backorder	(8a) Screw Set M6 x 40	£0.31 £0.26
10	MP779755 Available to backorder	Cam Lock Assembly (1 per)	£10.78 £8.98
10	MP503369 Available to backorder	(10b) Pin Tension 5.0 x 22	£0.48 £0.40
10	MP016777 Available to backorder	(10c) Washer- Slipper SS	£0.72 £0.60
10	MP582419 Available to backorder	(10a) Lever- Handle Locking	£4.74 £3.95
10	MP501793 Available to backorder	(10e) Nut M8 Hex Nyloc x 8mm thick	£1.92 £1.60
11	MP581527 Available to backorder	Retainer- Clutch Cable Handle	£0.72 £0.60
12	MP501606 Available to backorder	Washer Flat 8 x 19 x 1.6	£0.37 £0.31
15	MP973125 Available to backorder	Handle- Lower “U” 19” Wide	£33.20 £27.67
16	MP501597 Available to backorder	Screw Set M8 x 20	£0.41 £0.34
19	MP567402 Available to backorder	Bracket- Mount Catcher RH ST	£11.98 £9.98
20	MP567401 Available to backorder	Bracket- Mount Catcher LH ST	£11.98 £9.98
