Masport 800ST - 465971 - Oct 2022 - Deck

Name: Masport 800ST - 465971 - Oct 2022 - Deck
SKU: 800st465971deck-group
Price: 0.29 GBP
Availability: InStock

Skip to the end of the images gallery

Skip to the beginning of the images gallery

Masport 800ST - 465971 - Oct 2022 - Deck

Description

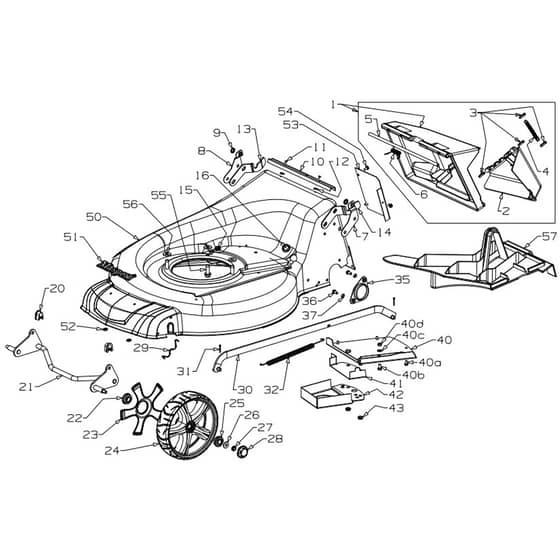

Masport 800ST Petrol Power Drive - Deck Parts Diagram

Part Number: 465971

Model: 800ST WC 3’n1 SP OPC 22

Engine Model: Loncin LC1P70F-3 196cc

Model Range: Oct 2022

Serial Number: -

Be the first to review this product

0 product questions

	Part No.	Details
1	MP782414 Available to backorder	Flap Assy Smart Chute R.Blk	£52.58 £43.82
2	MP571095 Available to backorder	Flap- Door Side Red	£17.28 £14.40
3	MP581676 Available to backorder	Pin Tension 6.0 x 35	£1.36 £1.13
4	MP581648 Available to backorder	Spring- Flap Side Discharge	£2.32 £1.93
5	MP583312 Available to backorder	Wire- Flap Pivot 8 x 325	£4.96 £4.13
6	MP579213 Available to backorder	Spring Flap 19”	£2.32 £1.93
7	MP579209 Available to backorder	Bracket - Flap LH 19”	£4.92 £4.10
8	MP579210 Available to backorder	Bracket - Flap RH 19”	£4.92 £4.10
9	MP501365 Available to backorder	Clip- Starlock 5.16”	£0.46 £0.38
13	MP567402 Available to backorder	Bracket- Mount Catcher RH	£12.46 £10.38
14	MP567401 Available to backorder	Bracket- Mount Catcher LH	£12.46 £10.38
16	MP502179 Available to backorder	Grommet- Clutch Cable 20x16x6	£1.18 £0.98
20	MP580030 In stock	Bush- Pivot Front Axle	£0.70 £0.58
21	MP983281 Available to backorder	Axle Assy- Front 200mm	£33.66 £28.05
22	MP551212 Available to backorder	Bearing- Wheel Ball	£5.56 £4.63
23	MP579205 Available to backorder	Cover- Inner Wheel	£2.76 £2.30
24	MP573706 Available to backorder	Wheel Assy- 200mm Mag Silver	£33.42 £27.85
26	MP501606 Available to backorder	Washer Flat 8 x 19 x 1.6	£0.36 £0.30
27	MP503831 Available to backorder	Nut M8 Hex Nyloc x 6mm thick	£0.72 £0.60
28	MP579204 Available to backorder	Hub Cap- Button Mag Silver	£0.52 £0.43
29	MP529674 In stock	Retainer- Axle Front “W”	£0.46 £0.38
30	MP573814 Available to backorder	Rod Assy- Connecting 540	£17.48 £14.57
31	MP501056 Available to backorder	Pin Cotter 2.3 dia x 16	£0.48 £0.40
32	MP573846 Available to backorder	Spring- Counter Balance 21” Stl	£8.20 £6.83
35	MP581178 Available to backorder	Retainer Axle Rear	£7.74 £6.45
36	MP501959 Available to backorder	Screw Set M6 x 12 Hex	£0.38 £0.32
40	MP501764 Available to backorder	(40d) Nut M6 Hex Nyloc x 6mm thick	£0.35 £0.29
40	MP964018 Available to backorder	Cover- Belt 21” STL Syncro	£33.76 £28.13
40	MP503630 Available to backorder	(40a) Screw S.T 10 x .4 Typ B	£0.90 £0.75
40	MP501703 Available to backorder	(40c) Washer Flat 6 x 14 x 1.2	£0.48 £0.40
41	MP567413 Available to backorder	Cover- Belt SPV Extension Sync	£25.18 £20.98
42	MP567412 Available to backorder	Cover- Belt SPV 21” Syncro	£23.96 £19.97
50	MP773241 Available to backorder	Hsg- Stl T 21” XF SP TTNM	£226.32 £188.60
51	MP581240 Available to backorder	Nameplate- MASPORT	£7.08 £5.90
52	MP503150 Available to backorder	Clip- Starlock 5mm dia	£0.52 £0.43
53	MP573284 Available to backorder	Tunnel- G.Box Cover 21” Stl	£19.40 £16.17
55	MP580453 Available to backorder	Screw S.T 3.8 x 1-1.8 UNC	£2.32 £1.93
56	MP501704 Available to backorder	Washer Flat 10 x 19 x 1.6	£0.44 £0.37

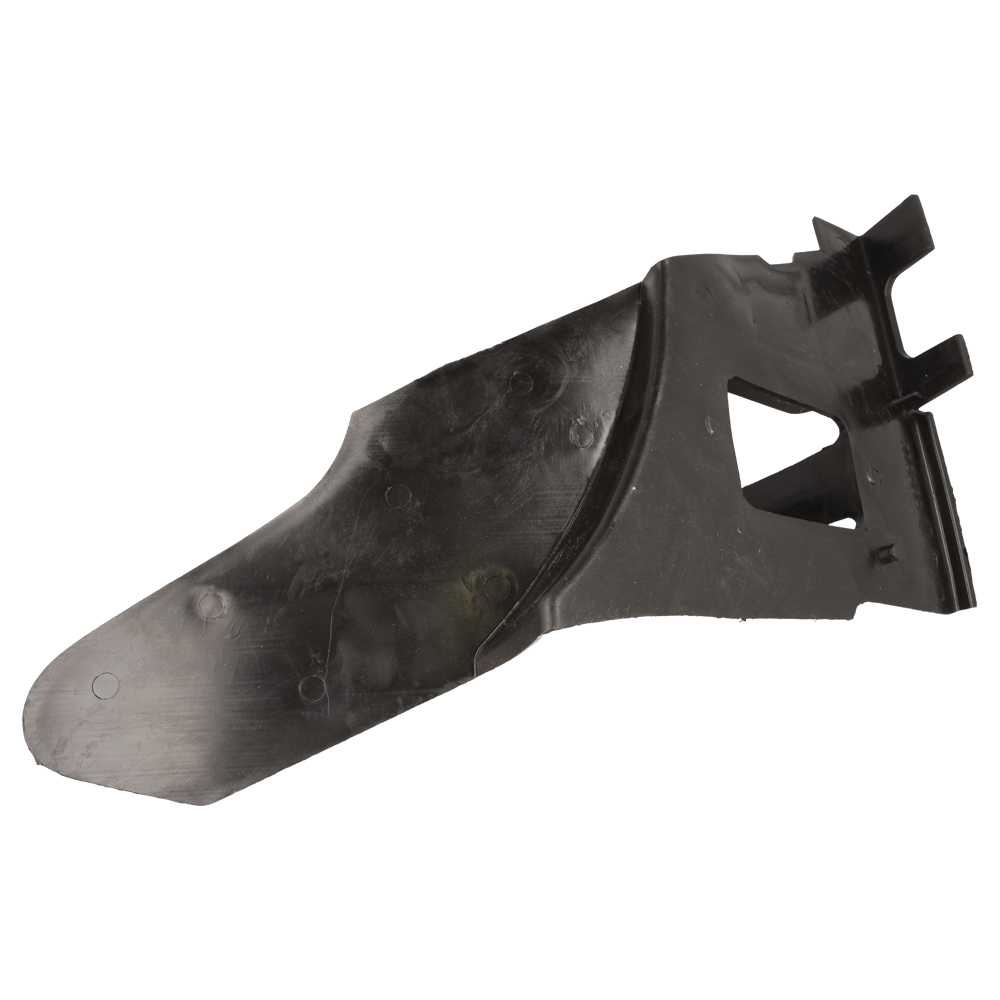

57	MP573389 Available to backorder	Insert- Mulching 21 T ST	£30.64 £25.53
