Masport 800AL - 973985 - Oct 2009 - Wheel and Gearbox Assembly

Description

Masport 800AL Petrol Power Drive - Wheel and Gearbox Assembly Parts Diagram

Part Number: 973985

Model: 800 AL MSV SPV Genius

Engine Model: B & S Series 675

Model Range: Oct 2009

Serial Number: -

Be the first to review this product

0 product questions

	Part No.	Details
1	MP768795 Available to backorder	Axle Assy Rear 21" SP	£70.46 £58.72
2	MP579426 Available to backorder	(2a) Dust Cover RH	£5.62 £4.68
2	MP579427 Available to backorder	Dust Cover LH	£5.62 £4.68
3	MP579428 Available to backorder	(3a) Gear Driving- Narrow	£55.76 £46.47

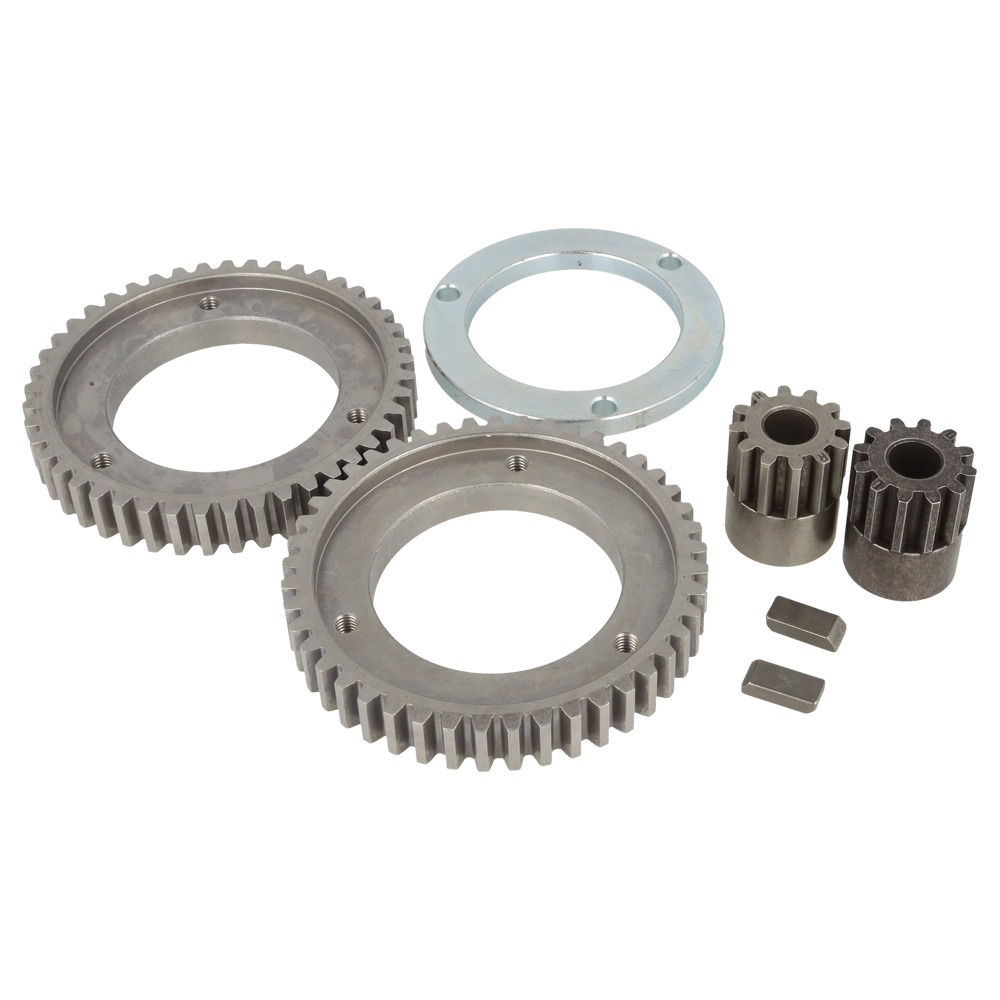

3	MP767300 Available to backorder	Gear Driving	£95.94 £79.95
4	MP579070 Available to backorder	Wheel Assy- 220mm BB MSV S	£44.50 £37.08
5	MP501703 Available to backorder	Washer Flat 6x14x1.2	£0.48 £0.40
6	MP501815 Available to backorder	Screw Set M6x35	£0.36 £0.30
7	MP501606 Available to backorder	Washer Flat 8x19x1.6	£0.36 £0.30
8	MP503831 Available to backorder	Nut M8 Nyloc 6 Thck	£0.72 £0.60
9	MP579207 Available to backorder	Hub Cap 220mm MSV SP	£4.92 £4.10
10	MP580091 Available to backorder	Bush- Pivot Rear Axle	£1.42 £1.18
11	MP503301 Available to backorder	Washer Flt 1.2x3.4x18G	£3.36 £2.80
20	MP573092 Available to backorder	Gear Box Variable Speed 540	£196.32 £163.60
21	MP581092 Available to backorder	Pawl Pinion 950 SP	£2.98 £2.48
22	MP503759 In stock	Circlip 12 EXT DIN 471	£0.48 £0.40
23	MP501213 Available to backorder	Bearing 12x32x10 6201 2RS	£16.70 £13.92
24	MP581093 Available to backorder	Cap Pinion 950 SP Plastic	£11.04 £9.20
25	MP581091 Available to backorder	(25a) Pinion RH 950 SP	£47.46 £39.55
25	MP581090 Available to backorder	Pinion LH 950 SP	£47.46 £39.55
26	MP503102 Available to backorder	Washer Flat 12x20x0.4	£0.84 £0.70

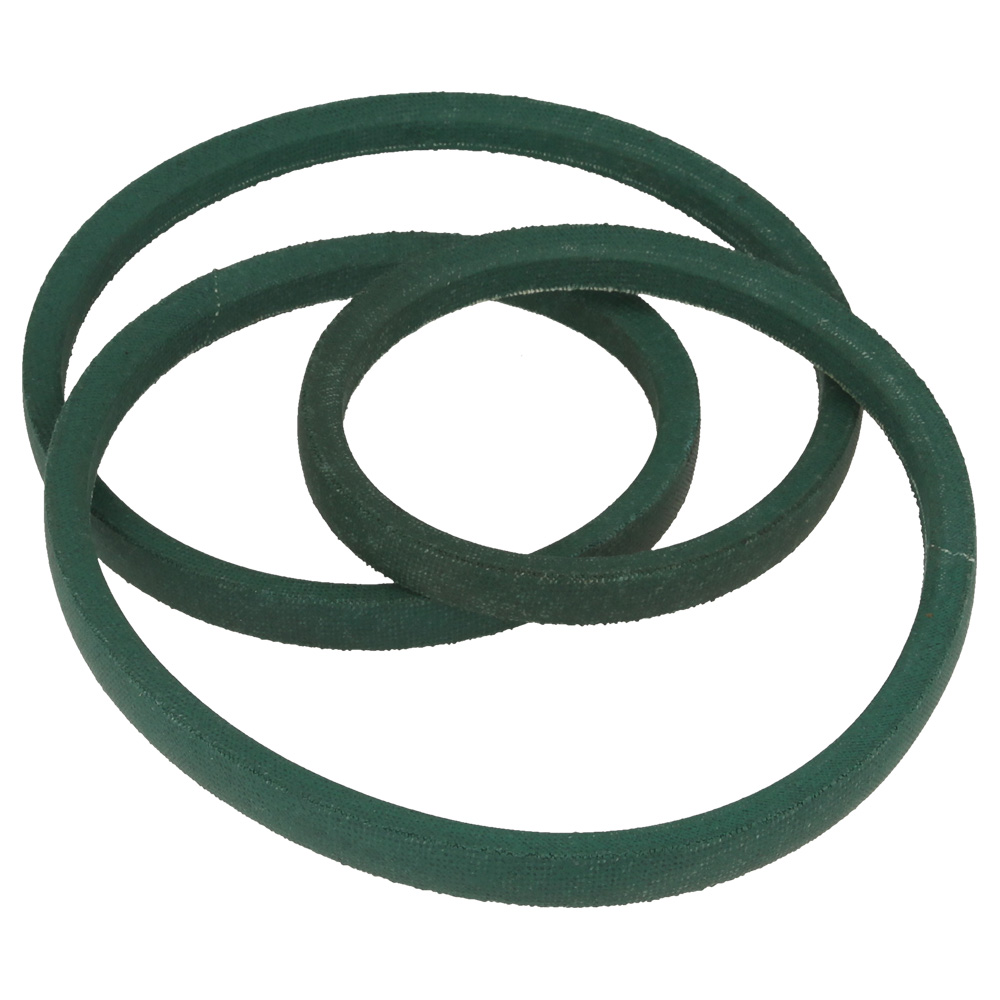

28	MP573779 Available to backorder	Belt- V NO.6738 3L-965 Gates	£54.70 £45.58
29	MP568651 Available to backorder	Pulley- Engine 25Bx68Dx28.5H	£31.14 £25.95
30	MP503386 Available to backorder	Screw Grub M8x8	£0.44 £0.37
31	MP503363 Available to backorder	Key W.ruff 5.8"x3.16"x1.4"	£0.44 £0.37
32	MP569155 Available to backorder	Plate Carrier 19.21 SPV Ali M8	£1.52 £1.27
33	MP569340 Available to backorder	Stud- Idler Pulley M8x40.9	£10.60 £8.83
34	MP569135 Available to backorder	Spacer Plate SPV 20x8.2x6.0	£7.30 £6.08
35	MP573382 Available to backorder	Pulley Flat Idler SPV	£20.96 £17.47
36	MP503901 In stock	Bearing 12x28x8 6001 2RSH	£18.78 £15.65
37	MP569351 Available to backorder	Spacer Bottom SPV 20x12.1x9	£2.92 £2.43
39	MP569322 Available to backorder	Stud- V Pulley M8x29.5	£4.18 £3.48
40	MP573383 Available to backorder	Pulley Vee Idler SPV	£25.42 £21.18
42	MP573394 Available to backorder	Mount Gearbox 21" SPV	£5.84 £4.87
43	MP503973 Available to backorder	Nut M6 Hex Nyloc Flange	£0.44 £0.37
45	MP501702 Available to backorder	Screw Set M6x16 Hex	£0.44 £0.37
46	MP503955 Available to backorder	Screw Set M10x12	£1.18 £0.98
