Masport 800AL - 973985 - Oct 2009 - Main Assembly

Name: Masport 800AL - 973985 - Oct 2009 - Main Assembly
SKU: 800al973985main-group
Price: 0.25 GBP
Availability: InStock

Skip to the end of the images gallery

Skip to the beginning of the images gallery

Masport 800AL - 973985 - Oct 2009 - Main Assembly

Description

Masport 800AL Petrol Power Drive - Main Assembly Parts Diagram

Part Number: 973985

Model: 800 AL MSV SPV Genius

Engine Model: B & S Series 675

Model Range: Oct 2009

Serial Number: -

Be the first to review this product

0 product questions

	Part No.	Details
1	MP779071 Available to backorder	Handle & Sleeve Adj OPC 19"	£63.00 £52.50
2	MP579279 Available to backorder	Bail Arm Assy SP MSV	£53.44 £44.53

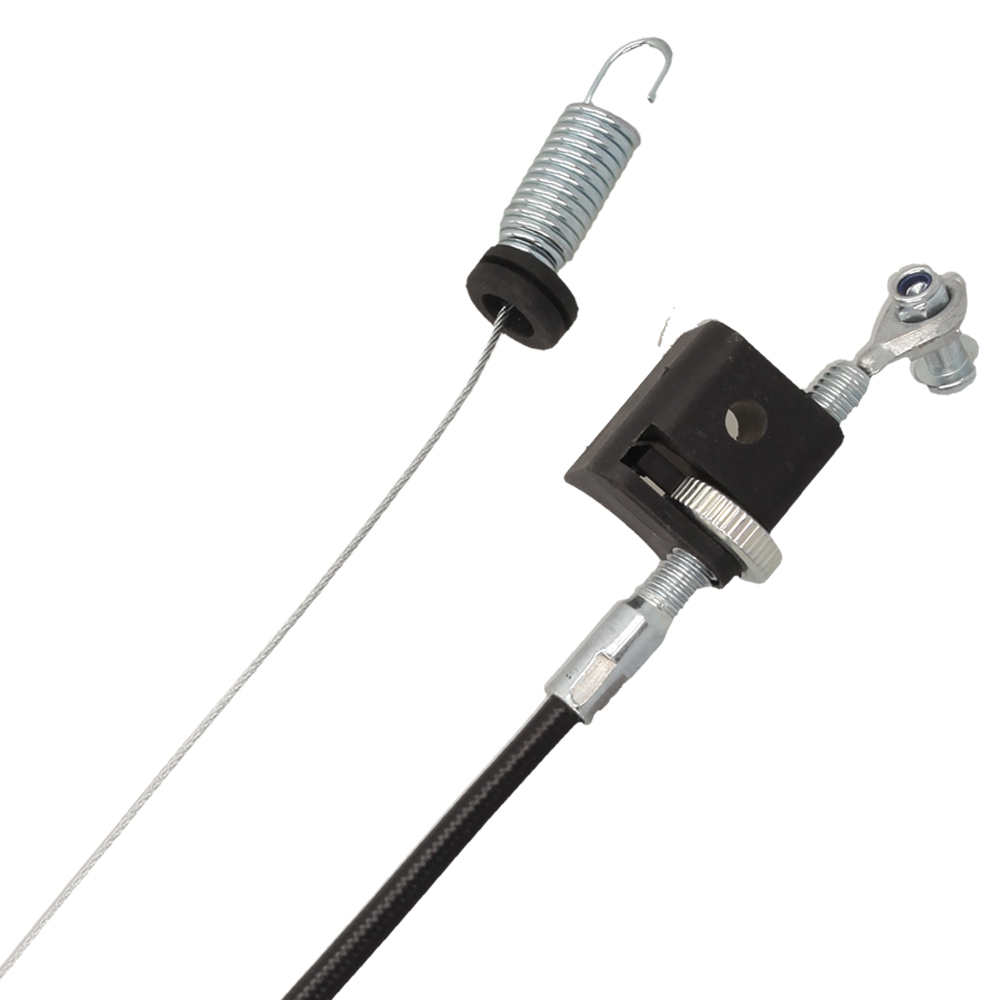

3	MP765436 In stock	Cable- Clutch Thumb Wheel	£27.86 £23.22
4	MP503604 Available to backorder	Screw Pan M6x45 Poz ZP	£0.86 £0.72
5	MP501764 Available to backorder	Nut M6 Nylocx 6 Thck	£0.35 £0.29
6	MP979278 Available to backorder	Bail Arm Assy OPC MSV	£56.76 £47.30
7	MP579782 Available to backorder	Cable- Engine OPC Push On 540	£15.80 £13.17
8	MP503883 Available to backorder	Bolt Hex M8x100	£7.34 £6.12
9	MP501793 Available to backorder	Nut M8 Hex Nyloc 8 Thck	£1.86 £1.55
10	MP503882 Available to backorder	Grommet Blanking 3.4"(19mm)	£6.42 £5.35
11	MP583442 Available to backorder	Mount- Throttle Top	£16.18 £13.48
12	MP583340 Available to backorder	Cover- Throttle Bottom	£10.66 £8.88
13	MP503650 Available to backorder	Screw S.T M5x18 Washer	£1.14 £0.95
14	MP583458 In stock	Control Assy- Throttle Wescon	£21.46 £17.88
17	MP773388 Available to backorder	Control Assy- Speed x 8 SPV	£61.86 £51.55
18	MP503508 Available to backorder	Screw Pan M6 x 55	£1.14 £0.95
20	MP782546 Available to backorder	Comfort Start Kit 45mm	£16.68 £13.90
21	MP779755 In stock	Cam Lock Assy	£10.06 £8.38
22	MP581527 Available to backorder	Retainer- Clutch Cable	£0.72 £0.60
23	MP581660 Available to backorder	Disc- Locking Outer	£6.08 £5.07
24	MP581659 Available to backorder	Disc- Locking Inner	£6.42 £5.35
40	MP982418 Available to backorder	Handle- Lower "U" Adj 19"	£34.66 £28.88
42	MP501606 Available to backorder	Washer Flat 8x19x1.6	£0.36 £0.30
44	MP573438 Available to backorder	Bracket- RH 19.21" AL Aero	£17.98 £14.98
45	MP573437 Available to backorder	Bracket- LH 19.21" AL Aero	£17.98 £14.98
60	MP782414 Available to backorder	Flap Assy Smart Chute MSV	£52.58 £43.82
70	MP983305 Available to backorder	Axle Assy Front 200mm Thrd	£31.54 £26.28
71	MP573706 Available to backorder	Wheel Assy- 200mm BB Mag	£33.42 £27.85
72	MP551212 Available to backorder	Bearing- Wheel Ball Type	£5.56 £4.63
74	MP503831 Available to backorder	Nut M8 Hex Nyloc 6 Thck	£0.72 £0.60
75	MP579204 Available to backorder	Hub Cap Button Mag	£0.52 £0.43
76	MP579205 Available to backorder	Cover- Inner Wheel	£2.76 £2.30
77	MP580030 In stock	Bush- Pivot Axle	£0.70 £0.58
78	MP573814 Available to backorder	Rod Assy Connecting 540 SP	£17.48 £14.57
79	MP573844 Available to backorder	Spring Counter Balance SP	£7.64 £6.37
80	MP501056 Available to backorder	Pin- Cotter 2.3Dx16	£0.48 £0.40
91	MP971057 Available to backorder	Tunnel Assy 21" SP.PUSH CH	£101.66 £84.72
93	MP573564 Available to backorder	Tunnel- GBox Cover 21" Ali	£15.72 £13.10
94	MP503630 Available to backorder	Screw S.T M4x10 Washer	£0.90 £0.75
95	MP583315 Available to backorder	Plate- Retainer Front Axle 19"	£1.52 £1.27
96	MP501599 Available to backorder	Screw S.T 1.4x5.8 Hex	£1.58 £1.32
97	MP579742 Available to backorder	Skirt- Side LH 540	£11.66 £9.72
98	MP579741 Available to backorder	Skirt- Side RH 540	£14.12 £11.77
99	MP503834 Available to backorder	Screw S.T M4x10 Wshr Hex	£0.38 £0.32
102	MP573582 Available to backorder	Quadrant Height Selector 21"	£16.98 £14.15
103	MP503200 Available to backorder	Rivet- Pop 4.8x13	£0.30 £0.25
104	MP580453 Available to backorder	Screw S.T 3.8x1-1.8 UNC TRIBLK	£2.32 £1.93
106	MP503783 Available to backorder	Cyclowash- Fitting	£4.62 £3.85
107	MP571048 Available to backorder	Hook19.21"- Aero Catcher	£19.24 £16.03
108	MP503591 Available to backorder	Screw Pan M6x12	£0.35 £0.29
109	MP501703 Available to backorder	Washer Flt 6x14x1.2	£0.48 £0.40
123	MP503223 Available to backorder	Screw Set M6x16 HT 8.8 Hex	£1.06 £0.88
124	MP582374 Available to backorder	Plunger- Intake Tube Plastic	£26.98 £22.48
125	MP973572 Available to backorder	Cover- Belt 540 Chip	£24.86 £20.72
132	MP501682 Available to backorder	Nut M6 Hex	£2.60 £2.17
136	MP503318 Available to backorder	Rivet Pop 5 Dia x 8	£0.44 £0.37
137	MP573059 Available to backorder	Insert- Mulching 21" Ali	£35.72 £29.77
