Masport 800AL - 567856 - Feb 2012 - Wheel and Gearbox Assembly

Name: Masport 800AL - 567856 - Feb 2012 - Wheel and Gearbox Assembly
SKU: 800al567856wheelandgearbox-group
Price: 0.27 GBP
Availability: InStock

Part No. 800al567856wheelandgearbox-group

Skip to the end of the images gallery

Skip to the beginning of the images gallery

Masport 800AL - 567856 - Feb 2012 - Wheel and Gearbox Assembly

Description

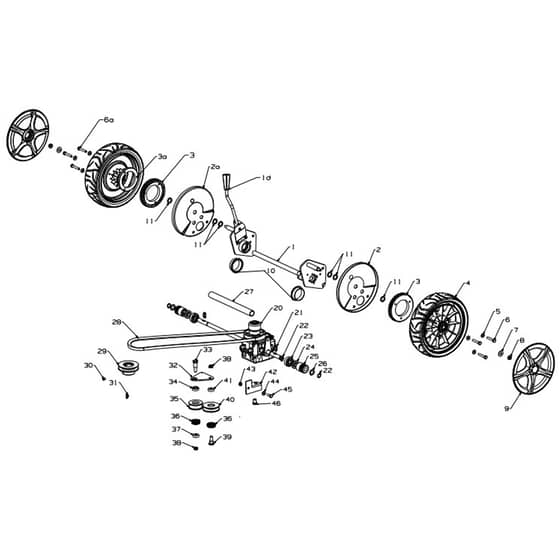

Masport 800AL Petrol Power Drive - Wheel and Gearbox Assembly Parts Diagram

Part Number: 567856

Model: 800 AL SPV Genius

Engine Model: B & S Series 675

Model Range: Feb 2012

Serial Number: -

	Part No.	Details
1	MP581729 Available to backorder	(1d) Knob Height Lever	£3.00 £2.50
1	MP768795 Available to backorder	Axle Assy Rear 21" SP	£70.44 £58.70
2	MP579426 Available to backorder	(2a) Dust Cover RH	£5.44 £4.53
2	MP579427 Available to backorder	Dust Cover LH	£5.44 £4.53
3	MP569479 Available to backorder	(3a) Spacer Gear Driving	£15.97 £13.31
4	MP579070 Available to backorder	Wheel Assy- 220mm BB MSV S	£42.83 £35.69
5	MP501703 Available to backorder	Washer Flat 6x14x1.2	£0.48 £0.40
6	MP501815 Available to backorder	Screw Set M6x35	£0.34 £0.28
7	MP501606 Available to backorder	Washer Flat 8x19x1.6	£0.37 £0.31
8	MP503831 Available to backorder	Nut M8 Nyloc 6 Thck	£0.72 £0.60
9	MP579207 Available to backorder	Hub Cap 220mm MSV SP	£4.74 £3.95
10	MP580091 Available to backorder	Bush- Pivot Rear Axle	£1.34 £1.12
11	MP503301 Available to backorder	Washer Flt 1.2x3.4x18G	£3.23 £2.69
20	MP573092 Available to backorder	Gear Box Variable Speed 540	£182.64 £152.20
21	MP581092 Available to backorder	Pawl Pinion 950 SP	£2.86 £2.38
22	MP503759 In stock	Circlip 12 EXT DIN 471	£0.32 £0.27
23	MP501213 Available to backorder	Bearing 12x32x10 6201 2RS	£17.28 £14.40
24	MP581093 Available to backorder	Cap Pinion 950 SP Plastic	£11.46 £9.55
25	MP569179 Available to backorder	(25a) Pinion RH 12 Teeth	£32.92 £27.43
25	MP569178 Available to backorder	Pinion LH 12 Teeth	£32.92 £27.43
26	MP503102 Available to backorder	Washer Flat 12x20x0.4	£0.72 £0.60
28	MP573779 Available to backorder	Belt- V NO.6738 3L-965 Gates	£54.71 £45.59
29	MP568651 Available to backorder	Pulley- Engine 25Bx68Dx28.5H	£29.00 £24.17
30	MP503386 Available to backorder	Screw Grub M8x8	£0.41 £0.34
31	MP503363 Available to backorder	Key W.ruff 5.8"x3.16"x1.4"	£0.41 £0.34
32	MP569155 Available to backorder	Plate Carrier 19.21 SPV Ali M8	£1.45 £1.21
33	MP569340 Available to backorder	Stud- Idler Pulley M8x40.9	£10.22 £8.52
34	MP569351 Available to backorder	Spacer Top SPV M8	£2.81 £2.34
35	MP573382 Available to backorder	Pulley Flat Idler SPV	£21.68 £18.07
36	MP503901 In stock	Bearing 12x28x8 6001 2RSH	£20.12 £16.77
37	MP569135 Available to backorder	Spacer Plate SPV 20x8.2x6.0	£7.00 £5.83
39	MP569322 Available to backorder	Stud- V Pulley M8x29.5	£4.01 £3.34
40	MP573383 Available to backorder	Pulley Vee Idler SPV	£24.46 £20.38
42	MP573394 Available to backorder	Mount Gearbox 21" SPV	£5.63 £4.69
43	MP503973 Available to backorder	Nut M6 Hex Nyloc Flange	£0.41 £0.34
45	MP501702 Available to backorder	Screw Set M6x16 Hex	£0.41 £0.34
46	MP503955 Available to backorder	Screw Set M10x12	£1.14 £0.95
