Masport 800AL - 567856 - Feb 2012 - Main Assembly

Description

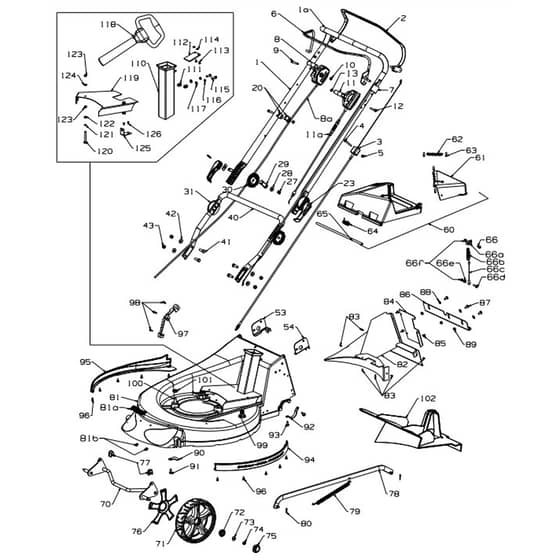

Masport 800AL Petrol Power Drive - Main Assembly Parts Diagram

Part Number: 567856

Model: 800 AL SPV Genius

Engine Model: B & S Series 675

Model Range: Feb 2012

Serial Number: -

Be the first to review this product

0 product questions

	Part No.	Details
1	MP781664 Available to backorder	Handle- Upper Assy Upt Adj SP	£63.74 £53.12
2	MP982161 Available to backorder	Bail Arm Assy SP	£27.36 £22.80
3	MP765435 In stock	Cable- Clutch Thumb Wheel	£28.18 £23.48
5	MP501764 Available to backorder	Nut M6 Nylocx 6 Thck	£0.35 £0.29
6	MP981740 Available to backorder	Bail Arm Assy OPC	£21.30 £17.75
7	MP583395 In stock	Cable- Engine OPC Push	£18.82 £15.68
11	MP773388 Available to backorder	Control Speed x 8 SPV	£61.86 £51.55
20	MP703856 Available to backorder	Comfort Start KIT	£19.80 £16.50
23	MP779755 In stock	Cam Lock Assy	£10.06 £8.38
27	MP501793 Available to backorder	Nut M8 Hex Nyloc 8 Thck	£1.86 £1.55
28	MP501606 Available to backorder	Washer Flat 8x19x1.6	£0.36 £0.30
29	MP581527 Available to backorder	Retainer- Clutch Cable	£0.72 £0.60
30	MP581660 Available to backorder	Disc- Locking Outer	£6.08 £5.07
31	MP581659 Available to backorder	Disc- Locking Inner	£6.42 £5.35
40	MP982418 Available to backorder	Handle- Lower "U" Adj	£34.66 £28.88
53	MP573438 Available to backorder	Bracket- RH 19.21" AL Aero	£17.98 £14.98
54	MP573437 Available to backorder	Bracket- LH 19.21" AL Aero	£17.98 £14.98
61	MP581646 Available to backorder	Flap- Door Side	£14.72 £12.27
62	MP581648 Available to backorder	Spring- Flap Side Discharge	£2.32 £1.93
63	MP581676 Available to backorder	Pin Tension 6x35	£1.36 £1.13
64	MP583343 Available to backorder	Spring Flap 19"	£2.16 £1.80
65	MP583312 Available to backorder	Wire- Flap Pivot 8x325	£4.96 £4.13
66	MP501959 Available to backorder	Screw Set M6x12	£0.38 £0.32
66	MP569731 Available to backorder	(66c) Cable Smart Chute	£0.34 £0.28
66	MP580268 Available to backorder	(66b) Spring Pedal	£1.30 £1.08
66	MP501682 Available to backorder	(66e) Nut M6	£2.60 £2.17
66	MP569732 Available to backorder	(66a) Bracket Smart Chute	£4.12 £3.43
66	MP501600 Available to backorder	(66d) Screw Set M6x20	£0.36 £0.30
70	MP983305 Available to backorder	Axle Assy Front 200mm Thrd	£31.54 £26.28
71	MP573706 Available to backorder	Wheel Assy- 200mm BB Mag Slvr	£33.42 £27.85
72	MP551212 Available to backorder	Bearing- Wheel Ball Type	£5.56 £4.63
74	MP503831 Available to backorder	Nut M8 Hex Nyloc 6 Thck	£0.72 £0.60
75	MP579204 Available to backorder	Hub Cap Button Mag Slvr	£0.52 £0.43
76	MP579205 Available to backorder	Cover- Inner Wheel	£2.76 £2.30
77	MP580030 Available to backorder	Bush- Pivot Axle	£0.70 £0.58
78	MP573814 Available to backorder	Rod Assy Connecting 540	£17.48 £14.57
79	MP573844 Available to backorder	Spring Counter Balance SP	£7.64 £6.37
80	MP501056 Available to backorder	Pin Cotter 2.3Dx16	£0.48 £0.40
82	MP971057 Available to backorder	Tunnel Assy 21" SP CH	£101.66 £84.72
84	MP573564 Available to backorder	Tunnel- GBox Cover 21" Ali	£15.72 £13.10
85	MP503630 Available to backorder	Screw S.T 10x.4 TYP B	£0.90 £0.75
86	MP571048 Available to backorder	Hook19.21" Aero Catcher	£19.24 £16.03
87	MP503591 Available to backorder	Screw Pan M6x12	£0.34 £0.28
88	MP501703 Available to backorder	Washer Flt 6x14x1.2	£0.48 £0.40
90	MP583315 Available to backorder	Plate- Retainer Front Axle 19"	£1.52 £1.27
91	MP501599 Available to backorder	Screw S.T 1.4x5.8 Hex	£1.58 £1.32
94	MP579742 Available to backorder	Skirt- Side LH 540	£11.66 £9.72
95	MP579741 Available to backorder	Skirt- Side RH 540	£14.12 £11.77
96	MP503834 Available to backorder	Screw S.T M4x10 Wshr Hex	£0.38 £0.32
98	MP503200 Available to backorder	Rivet- Pop 4.8x13	£0.30 £0.25
99	MP503783 Available to backorder	Cyclowash- Fitting	£4.62 £3.85
100	MP580453 Available to backorder	Screw S.T 3.8x1-1.8 UNC TRIBLK	£2.32 £1.93
101	MP583542 Available to backorder	Spacer Flat 10.5 x 22 x 6	£3.46 £2.88
102	MP573059 Available to backorder	Insert- Mulching 21" Ali	£35.72 £29.77
111	MP501040 Available to backorder	Nut M6 Nutsert	£0.72 £0.60
114	MP501330 Available to backorder	Washer Flat 5x10x1.0	£1.18 £0.98
118	MP582374 Available to backorder	Plunger- Intake Tube Plastic	£26.98 £22.48
119	MP973572 Available to backorder	Cover- Belt 540 Chip Ttnm	£24.86 £20.72
