Masport 800AL - 482840 - Nov 2015 > 7970000 - Handle

Name: Masport 800AL - 482840 - Nov 2015 > 7970000 - Handle
SKU: 800al4828407970000handle-group
Price: 0.29 GBP
Availability: InStock

Description

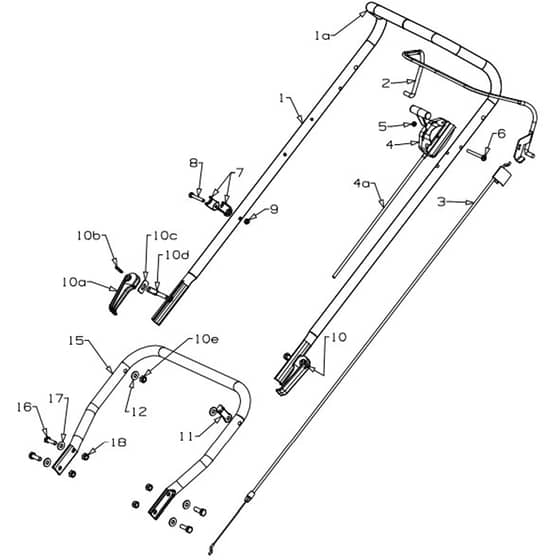

Masport 800AL Petrol Push Rotary Mower - Handle Parts Diagram

Part Number: 482840

Model: S21 W/Cut 800AL 3'n1

Engine Model: B&S Ser 675EXi

Model Range: Nov 2015

Serial Number: > 7970000

	Part No.	Details
1	MP764430 Available to backorder	(1.1a) Handle & Sleeve Black	£61.86 £51.55
2	MP981740 Available to backorder	Bail Arm Assy OPC Black	£21.30 £17.75
3	MP579782 Available to backorder	Cable- Engine OPC (1240mm)	£15.80 £13.17
4	MP583460 In stock	(4.4a) Control- Throttle Assy L.H "T"	£23.98 £19.98
5	MP503508 Available to backorder	Screw Pan M6 x 55 Hex	£1.14 £0.95
6	MP501764 Available to backorder	Nut M6 Hex Nyloc x 6mm thick	£0.35 £0.29
7	MP703856 Available to backorder	Comfort Start Kit	£19.80 £16.50
8	MP503794 Available to backorder	Screw Set M6 x 40 Hex	£0.35 £0.29
10	MP503369 Available to backorder	(10b) Pin Tension 5.0 x 22	£0.48 £0.40
10	MP582419 Available to backorder	(10a) Lever Handle Locking- MSV	£4.92 £4.10
10	MP501793 Available to backorder	(10e) Nut M8 Hex Nyloc x 8mm thick	£1.86 £1.55
10	MP779755 In stock	Cam Lock Assy (1 per)	£10.06 £8.38
10	MP016777 Available to backorder	(10c) Washer- Slipper S.S	£0.68 £0.57
11	MP581527 Available to backorder	Retainer- Clutch Cable Handle	£0.72 £0.60
12	MP501606 Available to backorder	Washer Flat 8x19x1.6	£0.36 £0.30
15	MP973125 Available to backorder	Handle-Lower "U" 19" Wide Black	£28.74 £23.95
