Masport 800AL - 482840 - Nov 2015 > 7970000 - 540mm Quickcut Blade Assembly

Name: Masport 800AL - 482840 - Nov 2015 > 7970000 - 540mm Quickcut Blade Assembly
SKU: 800al4828407970000540mmquickcutblade-group
Price: 0.26 GBP
Availability: InStock

Part No. 800al4828407970000540mmquickcutblade-group

Skip to the end of the images gallery

Skip to the beginning of the images gallery

Masport 800AL - 482840 - Nov 2015 > 7970000 - 540mm Quickcut Blade Assembly

Description

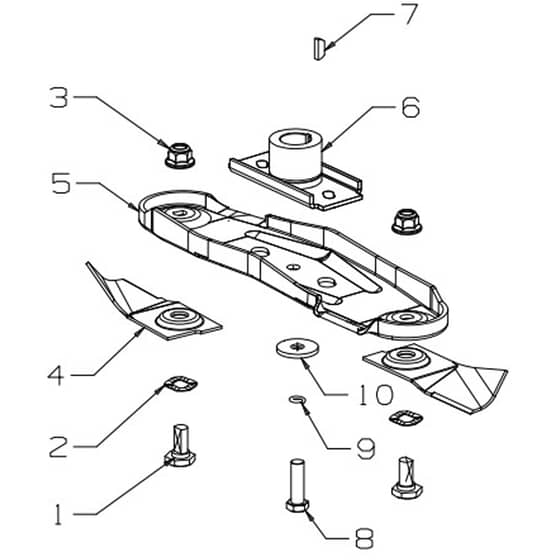

Masport 800AL Petrol Push Rotary Mower - 540mm Quickcut Blade Assembly Parts Diagram

Part Number: 482840

Model: S21 W/Cut 800AL 3'n1

Engine Model: B&S Ser 675EXi

Model Range: Nov 2015

Serial Number: > 7970000

	Part No.	Details
1	MP581707 In stock	Bolt-Blade	£2.41 £2.01
2	MP580693 In stock	Washer Wavy 13.4 x 24.2	£0.37 £0.31
3	MP503672 In stock	Nut Flange Nyloc M10	£0.36 £0.30
5	MP980653 Available to backorder	Carrier- Blade QuickCut	£31.19 £25.99
6	MP031640 Available to backorder	Driver Assy-Blade - 25mm Shaft	£21.84 £18.20
7	MP503363 Available to backorder	Key Woodruff-5.8" x 3.16" x 1.4"	£0.41 £0.34
8	MP581610 In stock	(8b) Screw Set NF 3.8 x 1.25 NYG8	£2.11 £1.76
9	MP500204 Available to backorder	Washer Spring 3.8"	£0.31 £0.26
10	MP503667 Available to backorder	Washer Flat 9.75 x 30 x 3.0	£1.14 £0.95
