Masport 800AL - 479903 - Sept 2015 > 7968502 - Handle

Name: Masport 800AL - 479903 - Sept 2015 > 7968502 - Handle
SKU: 800al4799037968502handle-group
Price: 0.26 GBP
Availability: InStock

Part No. 800al4799037968502handle-group

Description

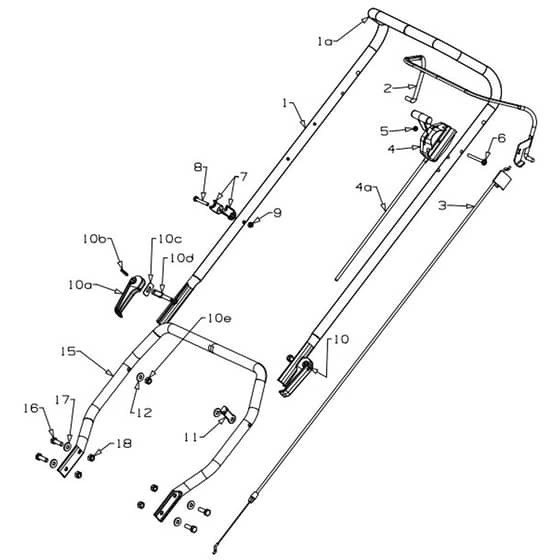

Masport 800AL Petrol Push Rotary Mower - Handle Parts Diagram

Part Number: 479903

Model: S19 625AL

Engine Model: B&S Ser 675EXi

Model Range: Sept 2015

Serial Number: > 7968502

	Part No.	Details
1	MP781265 Available to backorder	(1.1a) Handle & Sleeve OPC Soft.Black	£29.20 £24.33
2	MP981740 Available to backorder	Bail Arm Assy OPC Black	£20.51 £17.09
3	MP581656 In stock	Cable- Engine OPC P.On 950	£18.80 £15.67
4	MP583460 Available to backorder	(4.4a) Ctrl Throttle & Cable -VE "T"	£25.69 £21.41
5	MP503508 Available to backorder	Screw Pan M 6 x 55	£1.09 £0.91
6	MP501764 Available to backorder	Nut M6 Hex Nyloc x 6mm thick	£0.31 £0.26
7	MP703856 Available to backorder	Comfort Start Kit	£19.06 £15.88
8	MP503794 Available to backorder	Screw Set M 6 x 40 Hex	£0.31 £0.26
10	MP503369 Available to backorder	(10b) Pin Tension 5.0 x 22	£0.48 £0.40
10	MP779755 Available to backorder	Cam Lock Assy- MSV	£10.78 £8.98
10	MP016777 Available to backorder	(10c) Washer- Slipper S.S	£0.72 £0.60
10	MP582419 Available to backorder	(10a) Lever Handle Locking- MSV	£4.74 £3.95
10	MP501793 Available to backorder	(10e) Nut M8 Hex Nyloc x 8mm thick	£1.92 £1.60
11	MP581527 Available to backorder	Retainer- Clutch Cable Handle	£0.72 £0.60
12	MP501606 Available to backorder	Washer Flat 8 x 19 x 1.6	£0.37 £0.31
15	MP964646 Available to backorder	Handle-Lower "U" 19"Long Black	£27.12 £22.60
