Masport 800AL - 478998 - Nov 2013 > 7780453 - Gearbox

Part No. 800al4789987780453gearbox-group
Masport 800AL - 478998 - Nov 2013 > 7780453 - Gearbox
Masport 800AL - 478998 - Nov 2013 > 7780453 - Gearbox

Description

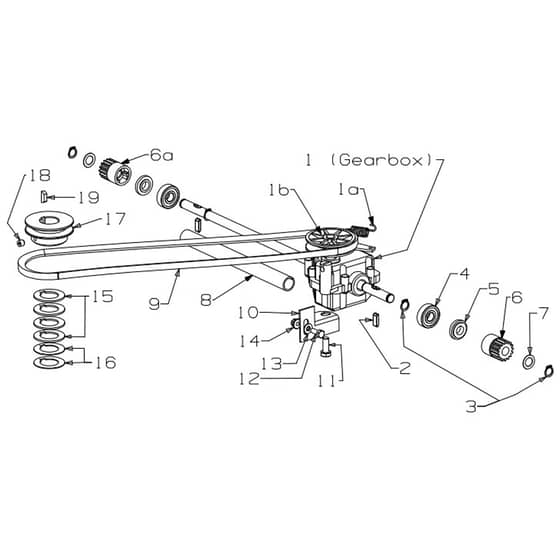

Masport 800AL Petrol Power Drive - Gearbox Parts Diagram

Part Number: 478998

Model: S21 800 AL WC CO SP

Engine Model: B&S Series 675

Model Range: Nov 2013

Serial Number: > 7780453

Ref. Img. Part No. Details
  1 (1b) Pulley-FRA Reduction (01304B)
(1b) Pulley-FRA Reduction (01304B)
MP569562
Available to backorder
(1b) Pulley-FRA Reduction (01304B)
£13.26 £11.05

  1 Gear Box Single Speed 21
Gear Box Single Speed 21
MP573181
Available to backorder
Gear Box Single Speed 21"
£147.48 £122.90

  1 (1a) Spring- Clutch G.Box S.Speed 19
(1a) Spring- Clutch G.Box S.Speed 19
MP501355
Available to backorder
(1a) Spring- Clutch G.Box S.Speed 19"
£13.82 £11.52

  2 Pawl Pinion 950 SP
Pawl Pinion 950 SP
MP581092
Available to backorder
Pawl Pinion 950 SP
£2.86 £2.38

  3 Circlip 12 EXT DIN 471
Circlip 12 EXT DIN 471
MP503759
In stock
Circlip 12 EXT DIN 471
£0.32 £0.27

  4 Bearing 12x32x10 6201 2RS
Bearing 12x32x10 6201 2RS
MP501213
Available to backorder
Bearing 12x32x10 6201 2RS
£17.28 £14.40

  5 Cap Pinion 950 SP Plastic
Cap Pinion 950 SP Plastic
MP581093
Available to backorder
Cap Pinion 950 SP Plastic
£11.46 £9.55

  6 (6a) Pinion RH 12 Teeth
(6a) Pinion RH 12 Teeth
MP569179
Available to backorder
(6a) Pinion RH 12 Teeth
£32.92 £27.43

  6 Pinion LH 12 Teeth
Pinion LH 12 Teeth
MP569178
Available to backorder
Pinion LH 12 Teeth
£32.92 £27.43

  7 Washer Flat 12x20x0.4
Washer Flat 12x20x0.4
MP503102
Available to backorder
Washer Flat 12x20x0.4
£0.72 £0.60

  9 Belt-V HC VEXTRA XPZ 925 Gates
Belt-V HC VEXTRA XPZ 925 Gates
MP571009
In stock
Belt-V HC VEXTRA XPZ 925 Gates
£42.68 £35.57

  10 Mount Gearbox 21
Mount Gearbox 21
MP573207
Available to backorder
Mount Gearbox 21" SP Ali
£3.68 £3.07

  11 Screw Set M10 x 12
Screw Set M10 x 12
MP503955
Available to backorder
Screw Set M10 x 12
£1.14 £0.95

  12 Screw Set M6x16
Screw Set M6x16
MP501702
Available to backorder
Screw Set M6x16
£0.41 £0.34

  13 Washer Flat 6x14x1.2
Washer Flat 6x14x1.2
MP501703
Available to backorder
Washer Flat 6x14x1.2
£0.48 £0.40

  14 Nut M6 Nyloc Flange
Nut M6 Nyloc Flange
MP503973
Available to backorder
Nut M6 Nyloc Flange
£0.41 £0.34

  15 Spacer- Pulley Eng 25 x 42 x 2
Spacer- Pulley Eng 25 x 42 x 2
MP569552
Available to backorder
Spacer- Pulley Eng 25 x 42 x 2
£3.40 £2.83

  16 Spacer- Pulley Eng 25 x 42 x 1
Spacer- Pulley Eng 25 x 42 x 1
MP573024
Available to backorder
Spacer- Pulley Eng 25 x 42 x 1
£0.41 £0.34

  18 Screw Grub M8x8
Screw Grub M8x8
MP503386
Available to backorder
Screw Grub M8x8
£0.41 £0.34

  19 Key- W.Ruff 5.8x3.16x1.4
Key- W.Ruff 5.8x3.16x1.4
MP503363
Available to backorder
Key- W.Ruff 5.8x3.16x1.4
£0.41 £0.34


Description

Masport 800AL Petrol Power Drive - Gearbox Parts Diagram

Part Number: 478998

Model: S21 800 AL WC CO SP

Engine Model: B&S Series 675

Model Range: Nov 2013

Serial Number: > 7780453
