Masport 800AL - 478969 - Apr 2014 Parts
Masport 800AL - 478969 - Apr 2014 - SPV Gearbox

Masport 800AL - 478969 - Apr 2014 - SPV Gearbox

Part No. 800al478969spvgearbox-group

Skip to the end of the images gallery

Skip to the beginning of the images gallery

Masport 800AL - 478969 - Apr 2014 - SPV Gearbox

Masport 800AL - 478969 - Apr 2014 - SPV Gearbox

Description

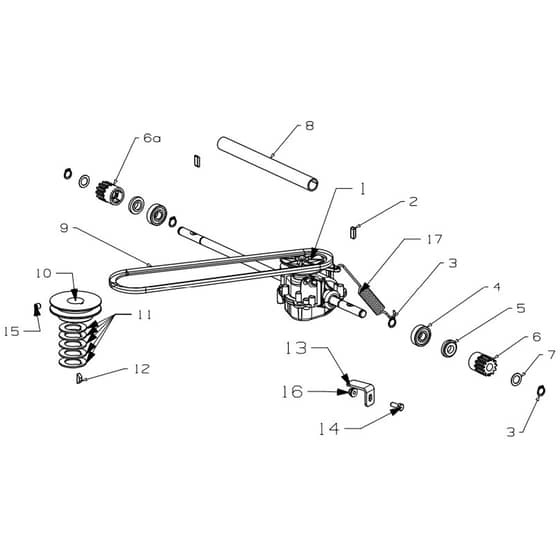

Masport 800AL Petrol Power Drive - SPV Gearbox Parts Diagram

Part Number: 478969

Model: Widecut 800AL SP

Engine Model: B&S Series 675

Model Range: Apr 2014

Serial Number: -

Ref.		Img.	Part No.	Details
	1		MP567356 Available to backorder	Gear Box Single Spd Synchro		£94.68 £78.90
	2		MP581092 Available to backorder	Pawl Pinion 950 SP		£2.86 £2.38
	3		MP503759 In stock	Circlip 12 EXT DIN 471		£0.32 £0.27
	4		MP501213 Available to backorder	Bearing 12x32x10 6201 2RS		£17.28 £14.40
	5		MP581093 Available to backorder	Cap Pinion 950 SP Plastic		£11.46 £9.55
	6		MP569179 Available to backorder	(6a) Pinion RH 12 Teeth		£32.92 £27.43
	6		MP569178 Available to backorder	Pinion LH 12 Teeth		£32.92 £27.43
	7		MP503102 Available to backorder	Washer Flat 12x20x0.4		£0.72 £0.60

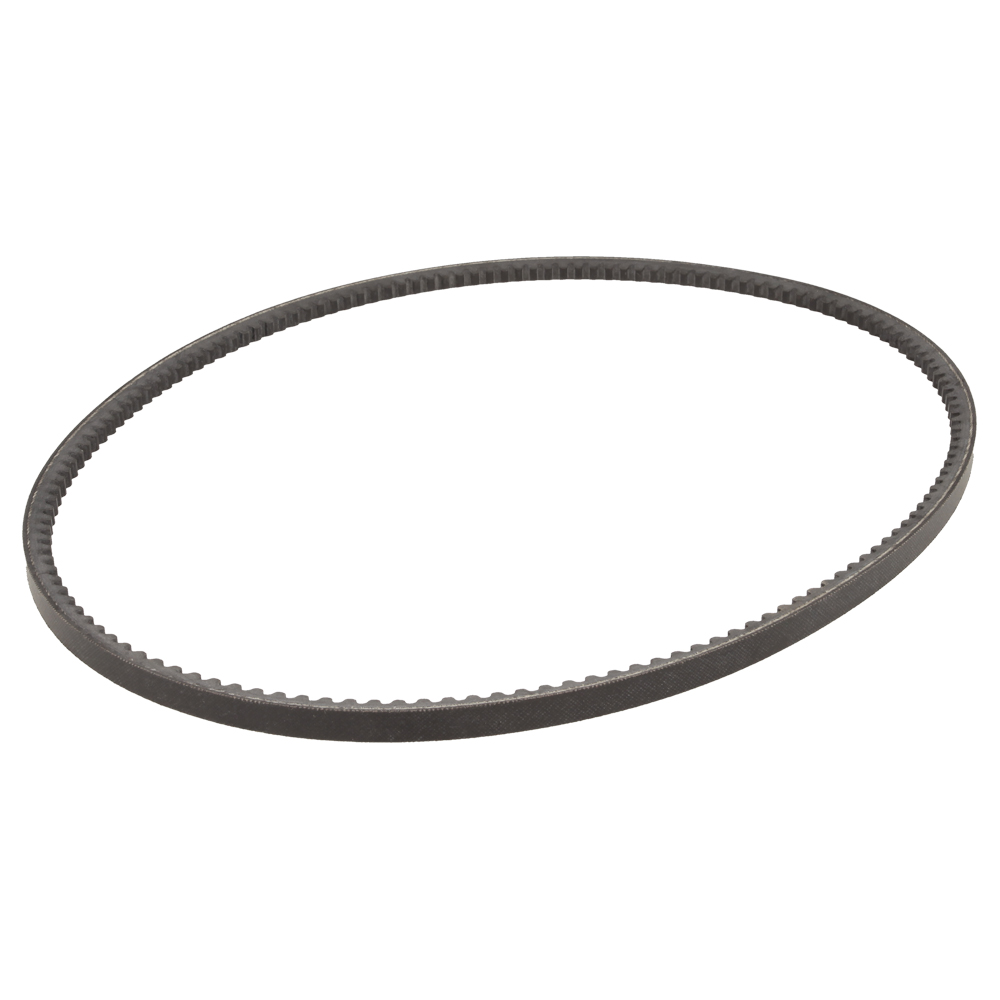

	9		MP582028 In stock	Belt- V HC Vextra XPZ 937Gates		£10.08 £8.40
	11		MP569552 Available to backorder	Spacer-Pulley25x42x2		£3.40 £2.83
	12		MP503363 Available to backorder	Key Woodruff 5.8x3.16x1.4		£0.41 £0.34
	14		MP501702 Available to backorder	Screw M6 x16		£0.41 £0.34
	15		MP503386 Available to backorder	Screw Grb M8x8		£0.41 £0.34
	16		MP503973 Available to backorder	Nut. M6 Flange		£0.41 £0.34

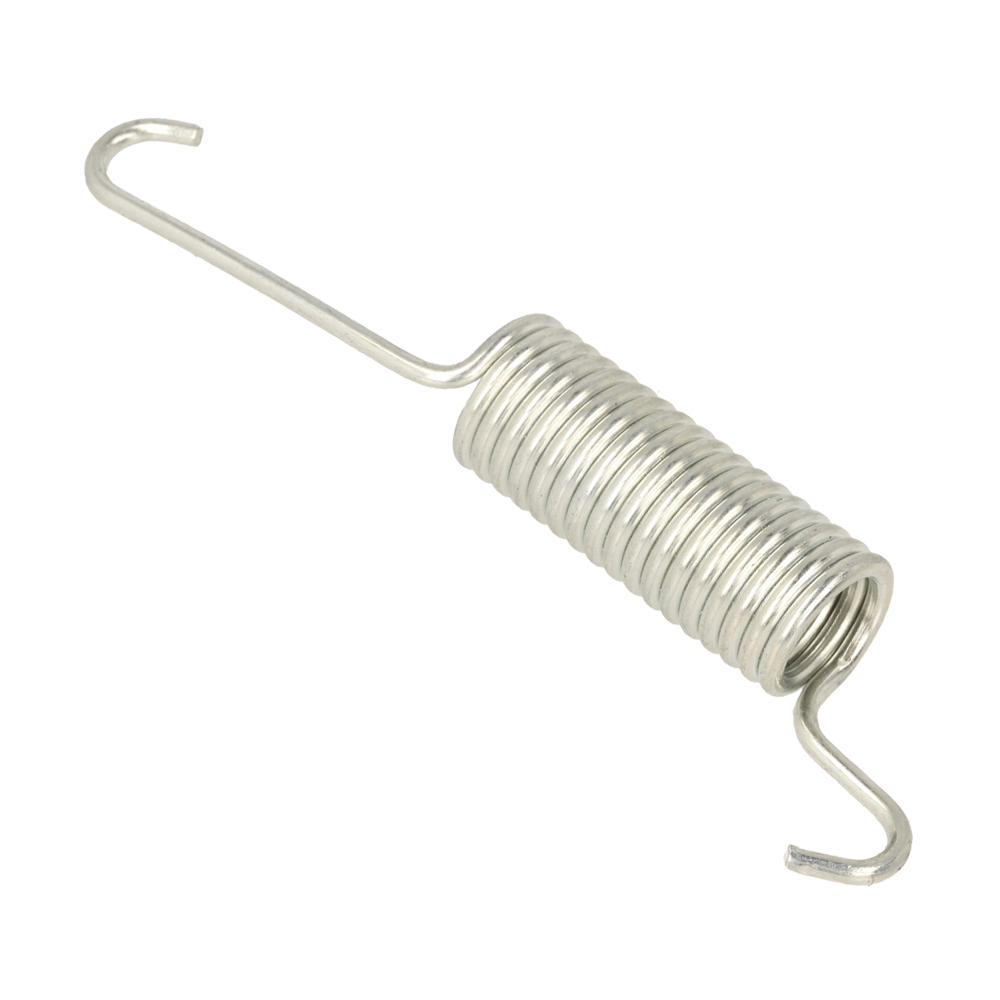

	17		MP567417 Available to backorder	Spring Belt Tensioner		£3.72 £3.10

Description

Masport 800AL Petrol Power Drive - SPV Gearbox Parts Diagram

Part Number: 478969

Model: Widecut 800AL SP

Engine Model: B&S Series 675

Model Range: Apr 2014

Serial Number: -
