Masport 800AL - 478969 - Apr 2014 - Axles & Conrod

Name: Masport 800AL - 478969 - Apr 2014 - Axles & Conrod
SKU: 800al478969axlesconrod-group
Price: 0.4 GBP
Availability: InStock

Part No. 800al478969axlesconrod-group

Description

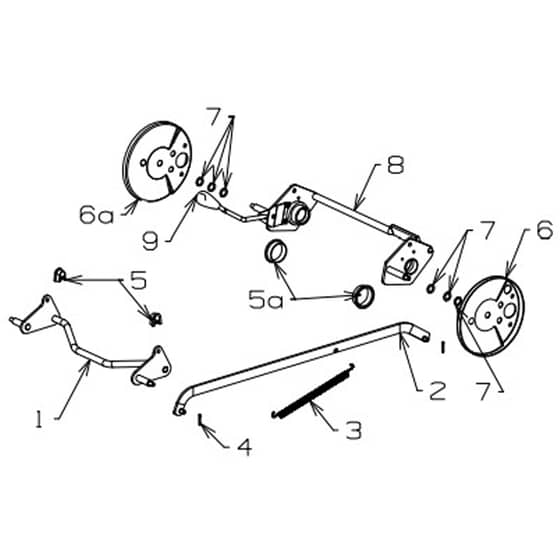

Masport 800AL Petrol Power Drive - Axles & Conrod Parts Diagram

Part Number: 478969

Model: Widecut 800AL SP

Engine Model: B&S Series 675

Model Range: Apr 2014

Serial Number: -

	Part No.	Details
1	MP983305 Available to backorder	Axle Assy-Front 200mm Thrd	£30.34 £25.28
2	MP573814 Available to backorder	Rod Assy-Connecting 21"	£16.82 £14.02
3	MP573844 Available to backorder	Spring-Counter Balance SP Ser2	£7.37 £6.14
4	MP501056 Available to backorder	Pin Cotter 2.3Dx16	£0.48 £0.40
5	MP580091 Available to backorder	(5a) Bush-Pivot Rear Axle	£1.34 £1.12
5	MP580030 In stock	Bush-Pivot Axle	£0.76 £0.63
6	MP579426 Available to backorder	(6a) Dust Cover RH	£5.44 £4.53
6	MP579427 Available to backorder	Dust Cover LH	£5.44 £4.53
7	MP503301 Available to backorder	Washer Flt 1.2x3.4x18G	£3.23 £2.69
8	MP768795 Available to backorder	Axle Assy- Rear Drive 21"	£70.44 £58.70
9	MP581729 Available to backorder	Knob Height Lever	£3.00 £2.50
