Masport 800AL - 465746 - Oct 2018 > 8320693 - Wheel Assembly

Description

Masport 800AL Petrol Power Drive - Wheel Assembly Parts Diagram

Part Number: 465746

Model: PRO POWER 3’n1 SP OPC 18

Engine Model: B&S Ser 850

Model Range: Oct 2018

Serial Number: > 8320693

	Part No.	Details
1	MP581729 Available to backorder	(1a) Knob- Height Adjust MSV	£3.00 £2.50
1	MP768795 Available to backorder	Axle Assy- Rear Comp MSV	£70.44 £58.70
3	MP503373 Available to backorder	(3a) Rivet- F.HD 3.16 x 27.64	£0.94 £0.78
3	MP573849 Available to backorder	Spring- Leaf 2mm	£7.06 £5.88
4	MP568770 Available to backorder	Rod Height Selector 21" V2	£7.86 £6.55
5	MP501330 Available to backorder	(5c) Washer Flat 5 x 10 x 1.0	£1.14 £0.95
5	MP501765 Available to backorder	(5b) Washer SPG 5	£0.48 £0.40
5	MP568771 Available to backorder	Handle- Height Lever Adj V2	£10.60 £8.83
5	MP501059 Available to backorder	(5a) Screw Pan M5 x 12 POZ	£0.71 £0.59
6	MP580091 Available to backorder	Bush- Pivot Rear Axle	£1.34 £1.12
7	MP503301 Available to backorder	Washer Flat 1.2 x 3.4 x 18G	£3.23 £2.69
8	MP579427 Available to backorder	Cover- Dust LH	£5.44 £4.53
9	MP579426 Available to backorder	Cover- Dust RH + LH	£5.44 £4.53
10	MP569180 Available to backorder	Gear- Driving 45 Teeth	£50.98 £42.48
11	MP569479 Available to backorder	Spacer- Gear- Driving	£15.97 £13.31

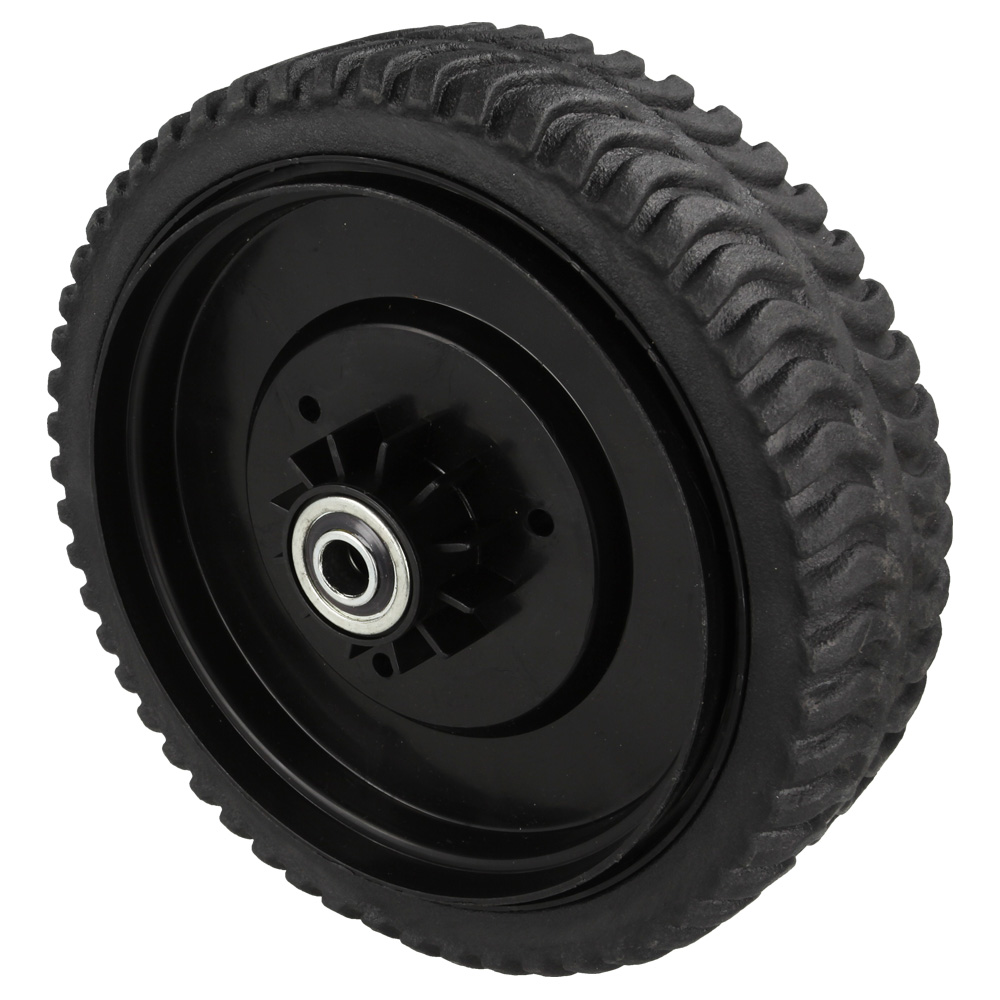

12	MP569667 Available to backorder	Wheel Assy- 220 Deep Tread	£42.82 £35.68
13	MP551212 Available to backorder	Bearing Ball	£5.75 £4.79
14	MP501703 Available to backorder	Washer Flat 6 x 14 x 1.2	£0.48 £0.40
15	MP503794 Available to backorder	Screw Set M6 x 40	£0.31 £0.26
16	MP501815 Available to backorder	Screw Set M6 x 35	£0.34 £0.28
17	MP501606 Available to backorder	Washer Flat 8 x 19 x 1.6	£0.37 £0.31
18	MP503831 Available to backorder	Nut M8 Nyloc x 6mm thick	£0.72 £0.60
19	MP579207 Available to backorder	Hub Cap 220 dia MSV Silver	£4.74 £3.95
