Masport 800AL - 465746 - Oct 2018 > 8320693 - Handle

Description

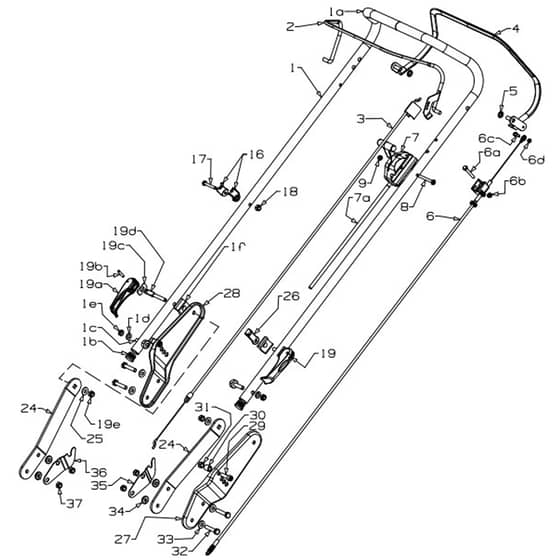

Masport 800AL Petrol Power Drive - Handle Parts Diagram

Part Number: 465746

Model: PRO POWER 3’n1 SP OPC 18

Engine Model: B&S Ser 850

Model Range: Oct 2018

Serial Number: > 8320693

	Part No.	Details
1	MP503831 Available to backorder	(1e) Nut M8 Hex Nyloc x 6mm thick	£0.72 £0.60
1	MP565357 Available to backorder	(1c) Pin- Handle Locking 48mm	£15.06 £12.55
1	MP501744 Available to backorder	(1d) Washer Flat 8 x 17 x 1.6	£0.48 £0.40
1	MP572204 Available to backorder	(1f) Pad- Vibration	£1.20 £1.00
1	MP765362 Available to backorder	(1.1a) Handle & Sleeve 3 Pos SFT.BLK	£65.64 £54.70
1	MP503319 Available to backorder	(1b) Plug- 22mm Black Plastic	£0.72 £0.60
2	MP981740 Available to backorder	Bail Arm Assy OPC Red	£20.51 £17.09
3	MP579782 In stock	Cable- Engine OPC (push on)	£16.93 £14.11
4	MP982161 Available to backorder	Bail Arm Assy SP Red	£28.26 £23.55
5	MP501365 Available to backorder	Clip- Starlock 5.16”	£0.48 £0.40
6	MP501764 Available to backorder	(6b) Nut M6 Hex Nyloc x 6mm Thick	£0.31 £0.26
6	MP502237 In stock	(6c) Bolt Hex F.Head Shouldered M5	Was £14.74 £12.28 Special Price £10.57 £8.81
6	MP765435 In stock	Cable- Clutch Thumb Wheel B.Box	£30.19 £25.16
6	MP502238 Available to backorder	(6d) Nut M5 Hex Nyloc x 5mm thick	£0.34 £0.28
6	MP503604 Available to backorder	(6a) Screw Set M6 x 45	£0.83 £0.69
7	MP583460 Available to backorder	(7.7a) Throttle Ctrl & Cable -VE CH”T”	£25.69 £21.41
8	MP503508 Available to backorder	Screw Pan M6 x 55	£1.09 £0.91
16	MP703856 Available to backorder	Comfort Start Kit	£19.06 £15.88
17	MP503794 Available to backorder	Screw Set M6 x 40	£0.31 £0.26
19	MP769674 Available to backorder	Cam Lock Assembly (1 per)	£8.89 £7.41
19	MP016777 Available to backorder	(19c) Washer- Slipper S.S	£0.72 £0.60
19	MP501793 Available to backorder	(19e) Nut M8 Hex Nyloc x 8mm thick	£1.92 £1.60
19	MP503369 Available to backorder	(19b) Pin Tension 5.0 x 22	£0.48 £0.40
19	MP582419 Available to backorder	(19a) Lever- Handle Locking MSV	£4.74 £3.95
19	MP569674 Available to backorder	(19d) Stud- Handle Lock 72mm	£2.94 £2.45
24	MP574128 Available to backorder	Brace- Handle Bracket Adj	£24.31 £20.26
25	MP501606 Available to backorder	Washer Flat 8 x 19 x 1.6	£0.37 £0.31
26	MP581527 Available to backorder	Retainer- Clutch Cable Handle	£0.72 £0.60
27	MP964083 Available to backorder	Bracket- Handle Adjustable LH	£17.32 £14.43
28	MP964082 Available to backorder	Bracket- Handle Adjustable RH	£18.23 £15.19
29	MP502182 Available to backorder	Screw Cap M8 x 30 Allen Head	£1.14 £0.95
30	MP564074 Available to backorder	Sleeve- Handle Locking	£6.04 £5.03
32	MP501843 Available to backorder	Screw Set M8 x 40	£0.83 £0.69
34	MP574134 Available to backorder	Spacer- Pulley 8.5 x 19 x 4	£7.78 £6.48
35	MP564299 Available to backorder	Bracket- Catcher Mount LH	£6.72 £5.60
36	MP564300 Available to backorder	Bracket- Catcher Mount RH	£6.72 £5.60
