Masport 800AL - 465746 - Oct 2018 > 8320693 - Gearbox

Part No. 800al4657468320693gearbox-group
Masport 800AL - 465746 - Oct 2018 > 8320693 - Gearbox
Masport 800AL - 465746 - Oct 2018 > 8320693 - Gearbox

Description

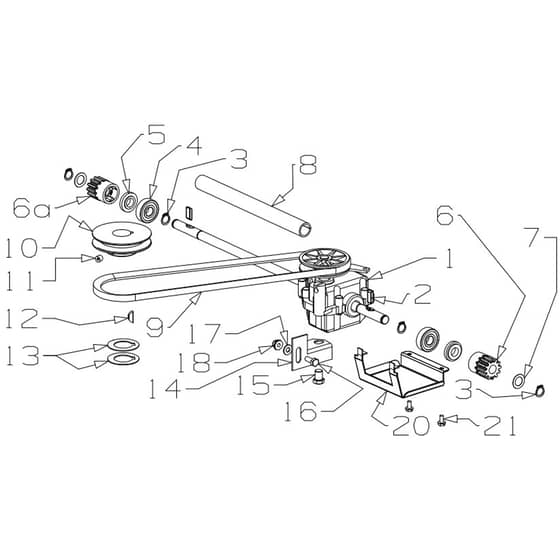

Masport 800AL Petrol Power Drive - Gearbox Parts Diagram

Part Number: 465746

Model: PRO POWER 3’n1 SP OPC 18

Engine Model: B&S Ser 850

Model Range: Oct 2018

Serial Number: > 8320693

Ref. Img. Part No. Details
  1 Gear Box Single Speed 21”
Gear Box Single Speed 21”
MP573181
Available to backorder
Gear Box Single Speed 21”
£147.48 £122.90

  2 Pawl Pinion 950 SP
Pawl Pinion 950 SP
MP581092
Available to backorder
Pawl Pinion 950 SP
£2.86 £2.38

  3 Circlip 12 EXT DIN 471
Circlip 12 EXT DIN 471
MP503759
In stock
Circlip 12 EXT DIN 471
£0.32 £0.27

  4 Bearing 12 x 32 x 10 6201 2RS
Bearing 12 x 32 x 10 6201 2RS
MP501213
Available to backorder
Bearing 12 x 32 x 10 6201 2RS
£17.28 £14.40

  5 Cap Pinion 950 SP Plastic
Cap Pinion 950 SP Plastic
MP581093
Available to backorder
Cap Pinion 950 SP Plastic
£11.46 £9.55

  6 (6a) Pinion RH 12 Teeth
(6a) Pinion RH 12 Teeth
MP569179
Available to backorder
(6a) Pinion RH 12 Teeth
£32.92 £27.43

  6 Pinion LH 12 Teeth
Pinion LH 12 Teeth
MP569178
Available to backorder
Pinion LH 12 Teeth
£32.92 £27.43

  7 Washer Flat 12 x 20 x 0.4
Washer Flat 12 x 20 x 0.4
MP503102
Available to backorder
Washer Flat 12 x 20 x 0.4
£0.72 £0.60

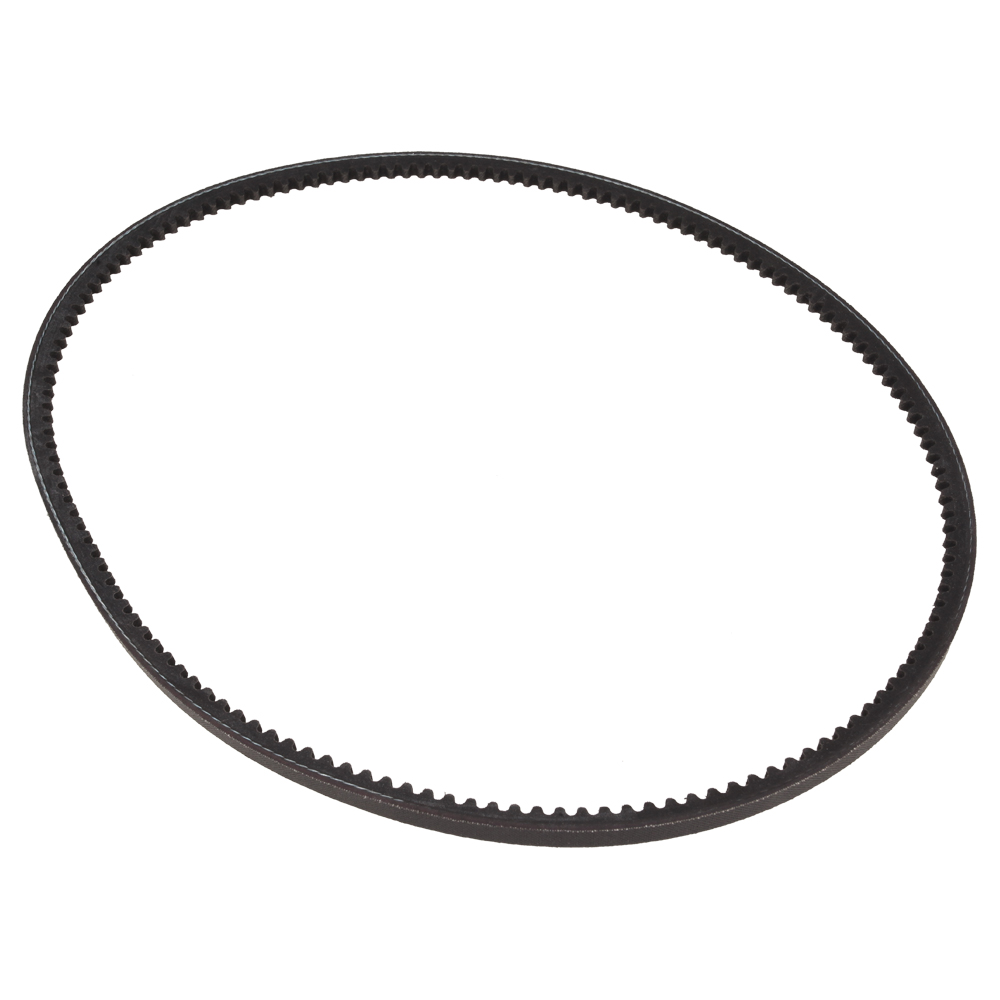

  9 Belt-V HC VEXTRA XPZ 950 Gates
Belt-V HC VEXTRA XPZ 950 Gates
MP573785
In stock
Belt-V HC VEXTRA XPZ 950 Gates
£43.44 £36.20

  9 Belt-V HC VEXTRA XPZ 937 Gates
Belt-V HC VEXTRA XPZ 937 Gates
MP582028
In stock
Belt-V HC VEXTRA XPZ 937 Gates
£10.08 £8.40

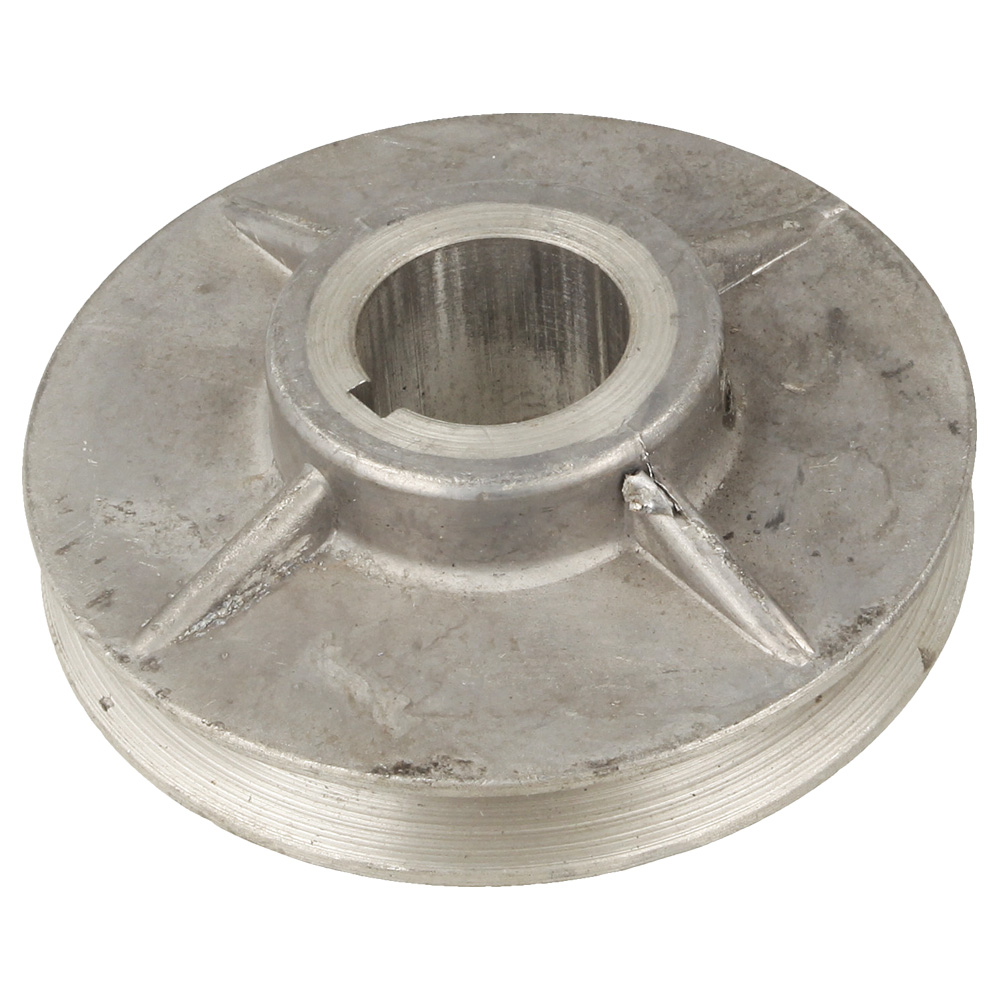

  10 Pulley- Engine 25bx89dx26h AL
Pulley- Engine 25bx89dx26h AL
MP568653
Available to backorder
Pulley- Engine 25bx89dx26h AL
£60.60 £50.50

  11 Screw Grub M8 x 8
Screw Grub M8 x 8
MP503386
Available to backorder
Screw Grub M8 x 8
£0.41 £0.34

  12 Key- W.Ruff 5.8 x 3.16 x 1.4
Key- W.Ruff 5.8 x 3.16 x 1.4
MP503363
Available to backorder
Key- W.Ruff 5.8 x 3.16 x 1.4
£0.41 £0.34

  13 Spacer- Pulley Eng 25 x 42 x 1
Spacer- Pulley Eng 25 x 42 x 1
MP573024
Available to backorder
Spacer- Pulley Eng 25 x 42 x 1
£0.41 £0.34

  14 Mount Gearbox 21” SP Ali
Mount Gearbox 21” SP Ali
MP573207
Available to backorder
Mount Gearbox 21” SP Ali
£3.68 £3.07

  15 Screw Set M10 x 12
Screw Set M10 x 12
MP503955
Available to backorder
Screw Set M10 x 12
£1.14 £0.95

  16 Screw Set M6 x 16
Screw Set M6 x 16
MP501702
Available to backorder
Screw Set M6 x 16
£0.41 £0.34

  17 Washer Flat 6 x 14 x 1.2
Washer Flat 6 x 14 x 1.2
MP501703
Available to backorder
Washer Flat 6 x 14 x 1.2
£0.48 £0.40

  18 Nut M6 Hex Nyloc Flange
Nut M6 Hex Nyloc Flange
MP503973
Available to backorder
Nut M6 Hex Nyloc Flange
£0.41 £0.34

  20 Wear Plate- G.Box
Wear Plate- G.Box
MP569271
Available to backorder
Wear Plate- G.Box
£9.77 £8.14

  21 Screw. S.Tapping 10 x .4 Type B
Screw. S.Tapping 10 x .4 Type B
MP503630
Available to backorder
Screw. S.Tapping 10 x .4 Type B
£0.86 £0.72


Description

Masport 800AL Petrol Power Drive - Gearbox Parts Diagram

Part Number: 465746

Model: PRO POWER 3’n1 SP OPC 18

Engine Model: B&S Ser 850

Model Range: Oct 2018

Serial Number: > 8320693
