Masport 800AL - 465746 - Oct 2018 > 8320693 - 540mm Disc Blade (Wavy) Assembly

Description

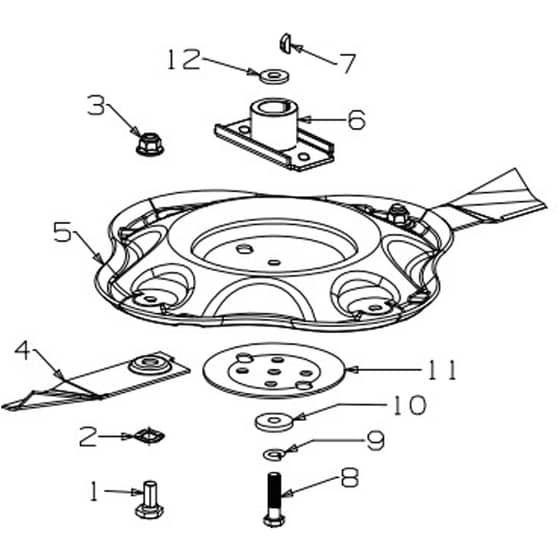

Masport 800AL Petrol Power Drive - 540mm Disc Blade (Wavy) Assembly Parts Diagram

Part Number: 465746

Model: PRO POWER 3’n1 SP OPC 18

Engine Model: B&S Ser 850

Model Range: Oct 2018

Serial Number: > 8320693

	Part No.	Details
1	MP581707 In stock	Bolt- Pivot M10x22	£2.41 £2.01
2	MP580693 In stock	Washer Wavy 13.4 x 24.2	£0.37 £0.31
3	MP503672 In stock	Nut M10 Hex Nyloc Flange	£0.36 £0.30

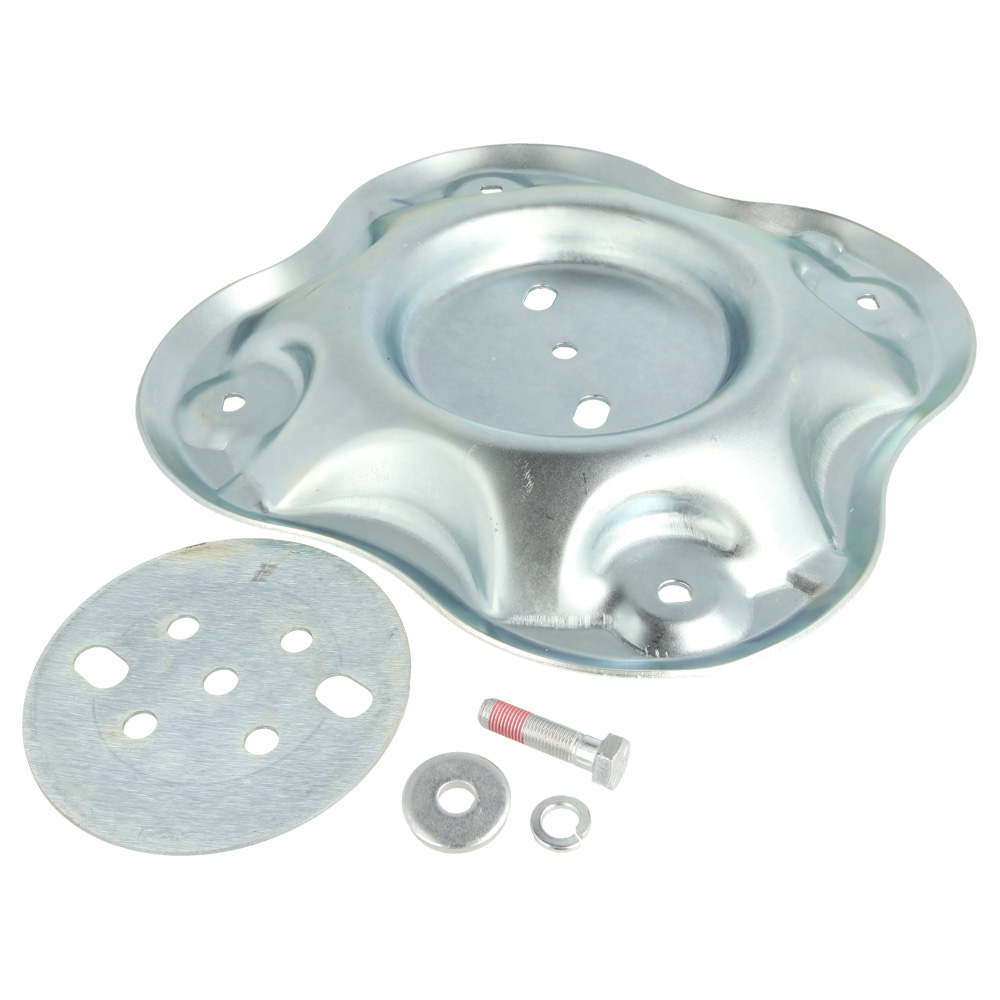

5	MP783314 Available to backorder	KIT-Disc Blade Wavy	£52.80 £44.00
6	MP031640 Available to backorder	Driver Assy- Blade - 25mm Shaft	£21.84 £18.20
7	MP503363 Available to backorder	Key Woodruff - 5.8”x3.16”x1.4”	£0.41 £0.34
8	MP581610 In stock	Bolt	£2.11 £1.76
9	MP500204 Available to backorder	Washer Spring 3.8”	£0.31 £0.26
10	MP503855 Available to backorder	Washer Flat 9.75 x 30 x 4.0	£1.66 £1.38
11	MP567332 Available to backorder	Plate- Stiff ener Disc Blade	£16.84 £14.03
12	MP503419 Available to backorder	Washer Flat 10 x 23 x 3	£0.79 £0.66
