Masport 800AL - 464778 - Jan 2016 > 8002517 - Wheel Assembly

Description

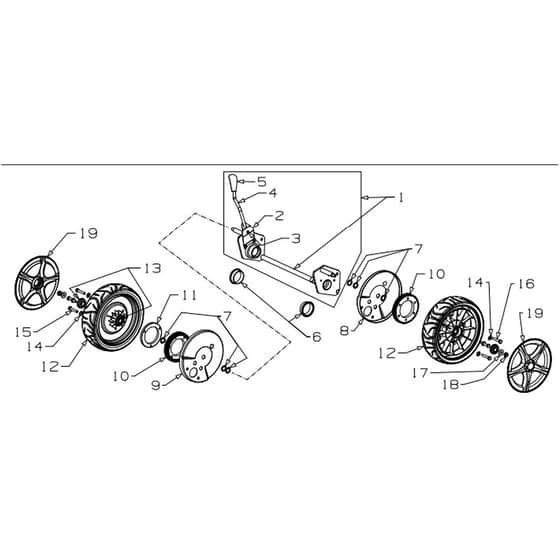

Masport 800AL Petrol Power Drive - Wheel Assembly Parts Diagram

Part Number: 464778

Model: S21 WC 800 AL 3'n1 SP

Engine Model: B&S Series 675EXi

Model Range: Jan 2016

Serial Number: > 8002517

Be the first to review this product

0 product questions

	Part No.	Details
1	MP768795 Available to backorder	Axle Assy-Rear 21" SP	£70.46 £58.72
2	MP573849 Available to backorder	Spring-Leaf 2mm	£6.24 £5.20
3	MP503373 Available to backorder	Rivet-Flat Head 3.16x27.64	£0.96 £0.80
4	MP973681 Available to backorder	Rod-Height Selector	£2.98 £2.48
5	MP581729 Available to backorder	Knob-Height Adjust (MSV)	£3.12 £2.60
6	MP580091 Available to backorder	Bush- Pivot Rear Axle	£1.42 £1.18
7	MP503301 Available to backorder	Washer Flat 1.2x3.4x18g	£3.36 £2.80
8	MP579427 Available to backorder	Dust Cover LH	£5.62 £4.68
9	MP579426 Available to backorder	Dust Cover LH.RH	£5.62 £4.68
10	MP569180 Available to backorder	Gear Driving - 45 Teeth	£52.96 £44.13
11	MP569479 Available to backorder	Spacer Gear Driving	£16.58 £13.82
12	MP579070 Available to backorder	Wheel Assy -220mm SP	£44.50 £37.08
13	MP551212 Available to backorder	Bearing-Wheel Ball Type	£5.56 £4.63
14	MP501703 Available to backorder	Washer Flat 6x14x1.2	£0.48 £0.40
15	MP503794 Available to backorder	Screw Set M6x40 RH Side	£0.35 £0.29
16	MP501815 Available to backorder	Screw Set M6x35 LH Side	£0.36 £0.30
17	MP501606 Available to backorder	Washer Flat 8x19x1.6	£0.36 £0.30
18	MP503831 Available to backorder	Nut M8 Nyloc 6 Thck	£0.72 £0.60
19	MP579207 Available to backorder	Hub Cap 220mm MSV SP Slvr	£4.92 £4.10
