Masport 800AL - 464778 - Jan 2016 > 8002517 - Gearbox

Name: Masport 800AL - 464778 - Jan 2016 > 8002517 - Gearbox
SKU: 800al4647788002517gearbox-group
Price: 0.27 GBP
Availability: InStock

Part No. 800al4647788002517gearbox-group

Skip to the end of the images gallery

Skip to the beginning of the images gallery

Masport 800AL - 464778 - Jan 2016 > 8002517 - Gearbox

Description

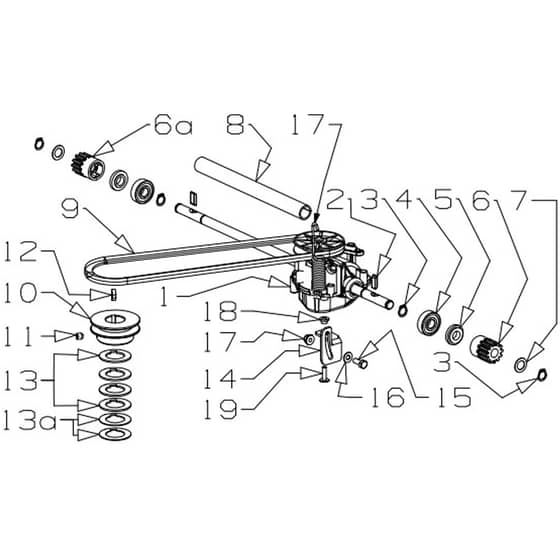

Masport 800AL Petrol Power Drive - Gearbox Parts Diagram

Part Number: 464778

Model: S21 WC 800 AL 3'n1 SP

Engine Model: B&S Series 675EXi

Model Range: Jan 2016

Serial Number: > 8002517

	Part No.	Details

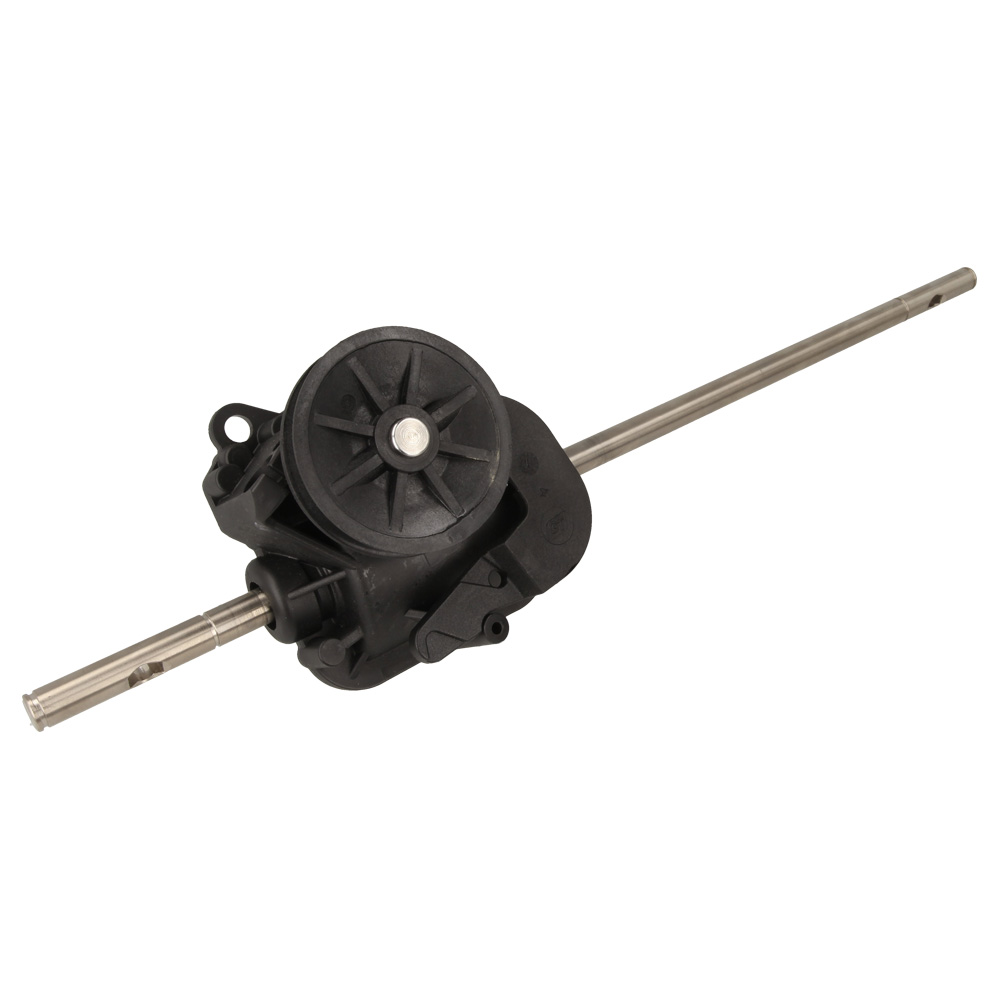

1	MP567356 Available to backorder	Gearbox-Single Speed Synchro	£94.68 £78.90
2	MP581092 Available to backorder	Pawl Pinion 950 SP	£2.86 £2.38
3	MP503759 In stock	Circlip 12 EXT DIN 471	£0.32 £0.27
4	MP501213 Available to backorder	Bearing 12 x 32 x 10 6201 2RS	£17.28 £14.40
5	MP581093 Available to backorder	Cap Pinion 950 SP Plastic	£11.46 £9.55
6	MP569178 Available to backorder	Pinion LH 12 Teeth	£32.92 £27.43
6	MP569179 Available to backorder	(6a) Pinion RH 12 Teeth	£32.92 £27.43
7	MP503102 Available to backorder	Washer Flat 12x20x0.4	£0.72 £0.60

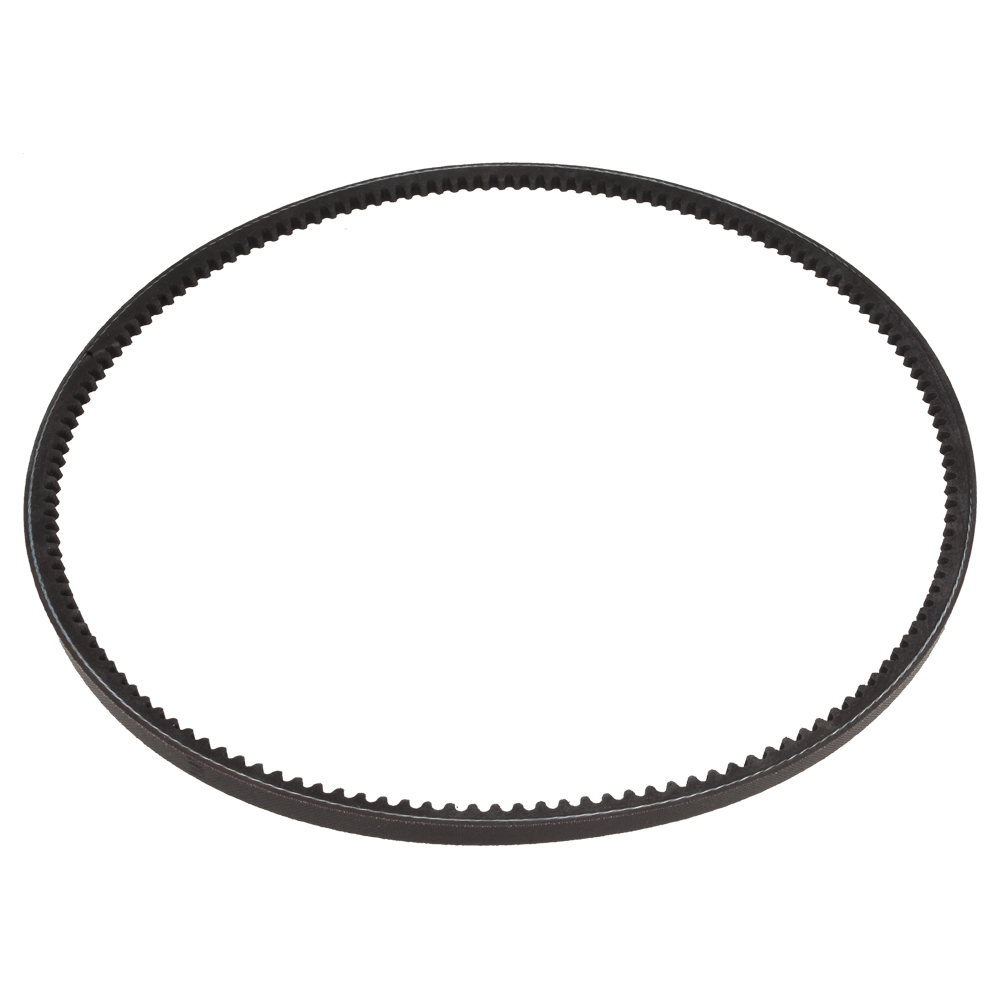

9	MP571009 In stock	Belt- V HC Vextra XPZ 925 Gate	£42.68 £35.57
11	MP503386 Available to backorder	Screw Grb M8 x 8	£0.41 £0.34
12	MP503363 Available to backorder	Key Woodruff 5.8 x 3.16 x 1.4	£0.41 £0.34
13	MP569552 Available to backorder	Spacer-Pulley25 x 42 x 2	£3.40 £2.83
13	MP573024 Available to backorder	(13a) Spacer-Pulley25 x 42 x 1	£0.41 £0.34
14	MP573072 Available to backorder	Mount Gearbox 21" Syncro	£6.86 £5.72
15	MP501600 Available to backorder	Screw Set M6 x 20 Hex	£0.34 £0.28
16	MP501703 Available to backorder	Washer Flat 6 x 14 x 1.2	£0.48 £0.40
17	MP503973 Available to backorder	Nut M6 Nyloc Flange	£0.41 £0.34
18	MP564093 Available to backorder	Bush- G.Box Mount	£6.20 £5.17
19	MP503650 Available to backorder	Screw. S.Tapping #12 x 11.16"	£0.86 £0.72
